(Each)
$114.61
(Each)
(per 1)
In Stock Locally
$114.61

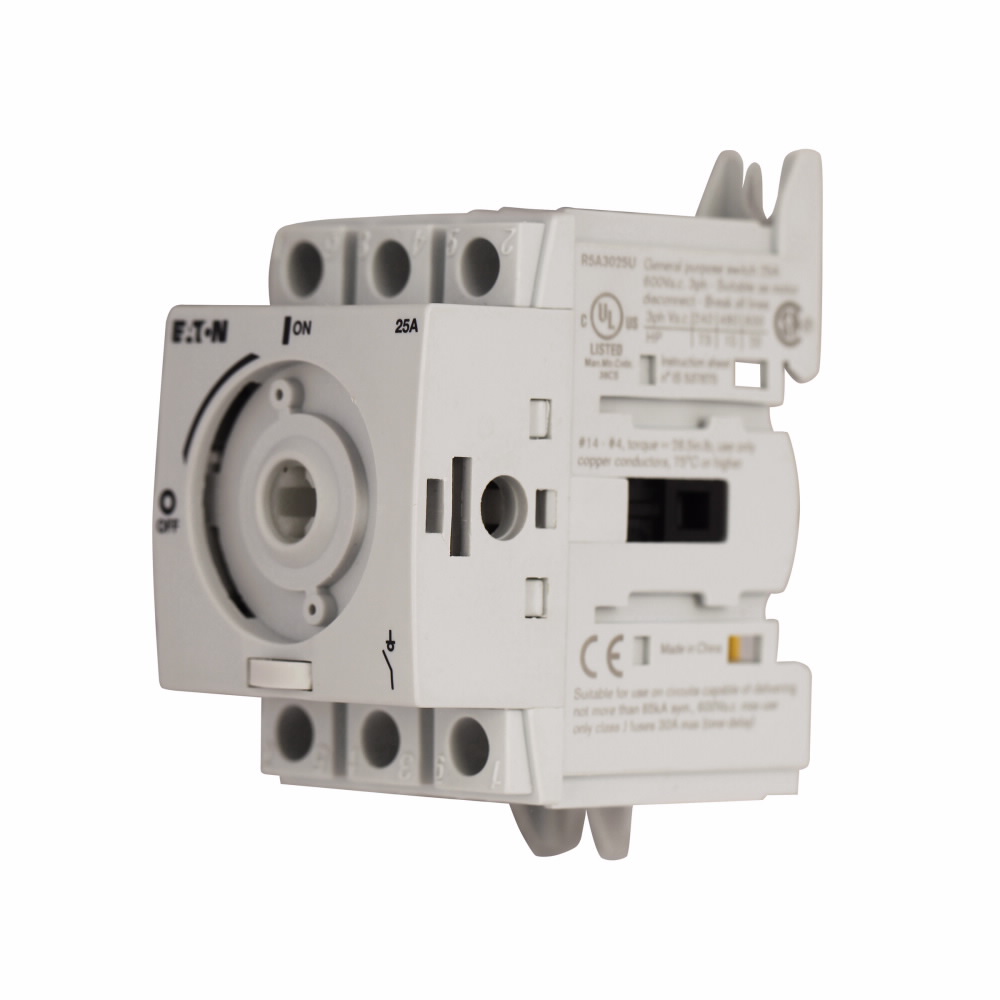

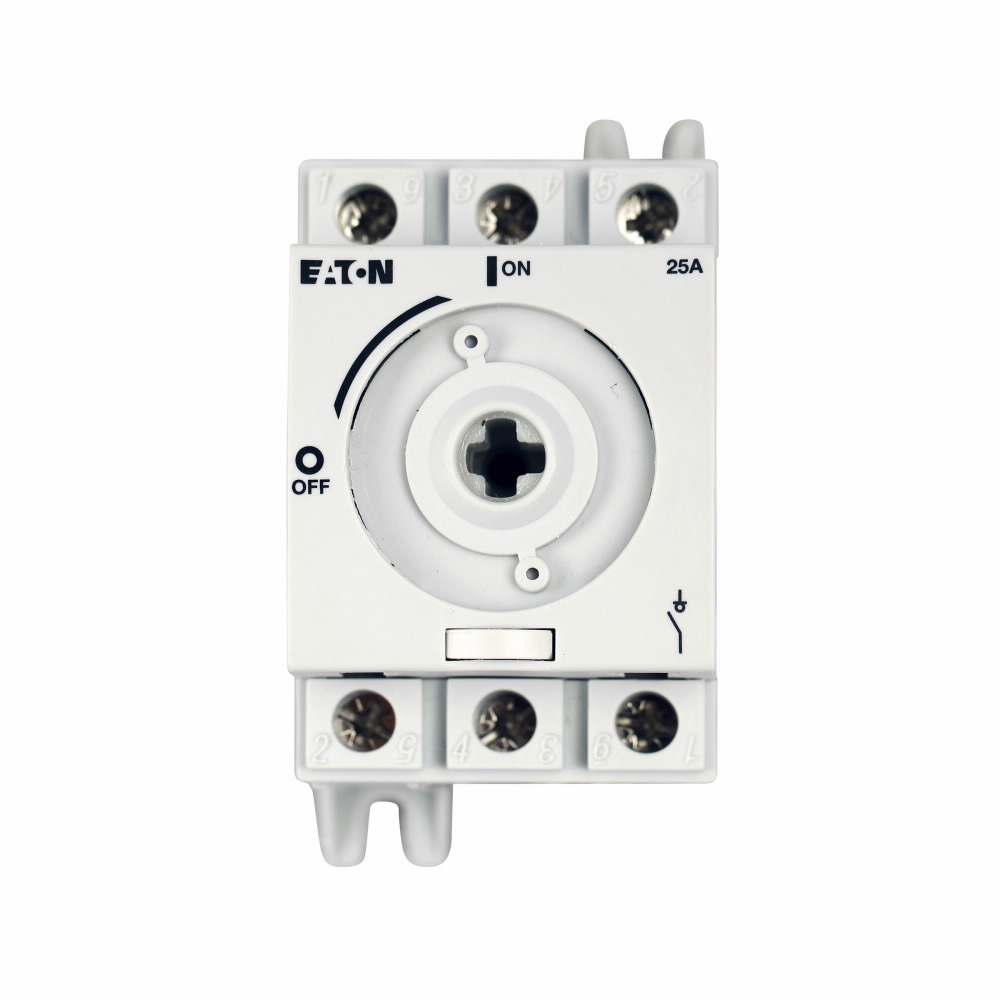

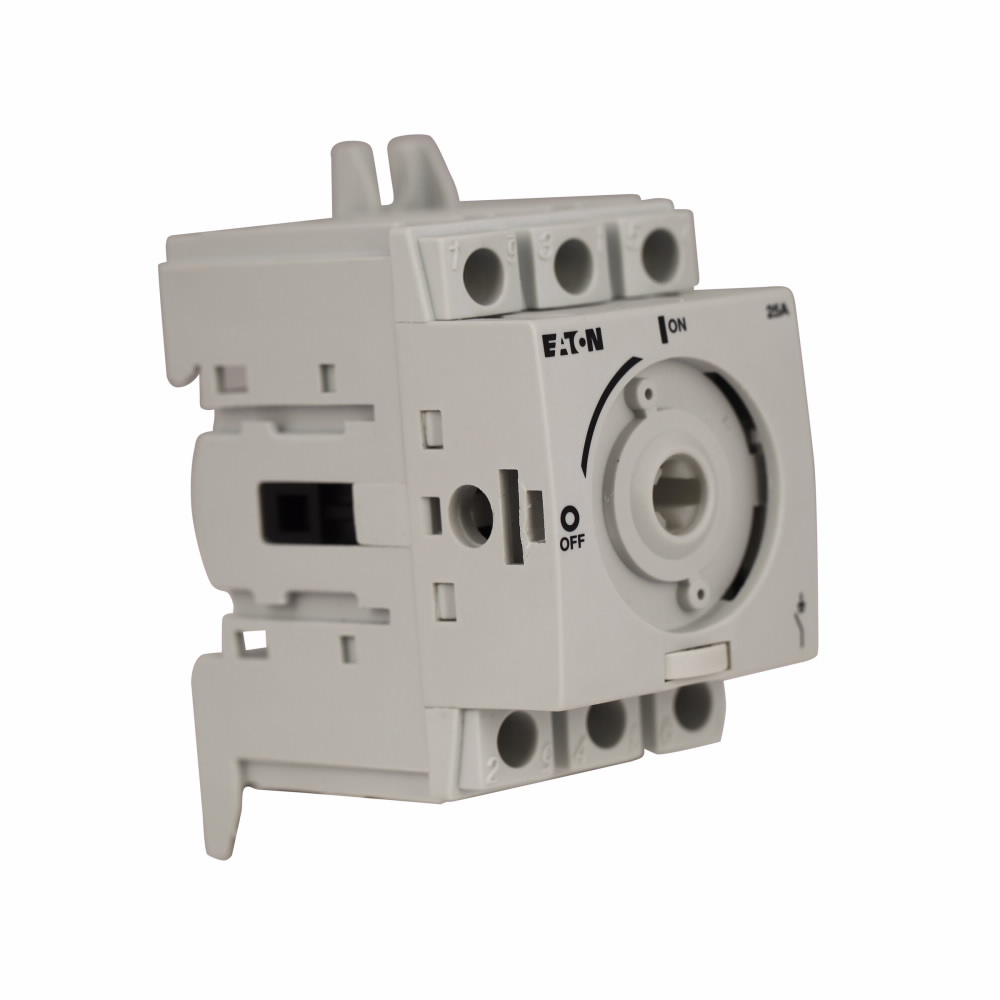

| Eaton R5A3030U – Rotary Disconnect Switch | |
|---|---|
| Catalog Number | R5A3030U |
| Vendor Code | CHC |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | R5A3030U |
| Series | R5 |
| Product Type | Rotary Disconnect Switch |
| Description | UL508 A-FRAME 3-POLE 30AMP NF ROTARY DISCONNECT |
| Long Description | Rotary Disconnect Switch, R5 Series, 30 A, 600 V AC, 3 Poles, Non-Fusible, 0.5 lb |
| Short Description | Rotary Disconnect Switch, 30 A, 600 VAC, Enclosed, Non-Fusible |
| Extra Long Description | ETN R5A3030U UL508 A-FRAME 3P 30A N |
| Categories | Disconnect Safety Switches – Non-Fusible |
| Classification | Rotary Disconnects |
| Type | Rotary Disconnect Switch |
| UPC / GTIN | 786685402871 / 00786685402871 |
| Current Rating | 30 A |
| Voltage Rating | 600 V AC |
| Poles | 3 |
| Fusible / Non-Fusible | Non-Fusible |
| Dimensions (L × W × H) | 2.57 in × 1.77 in × 3.35 in |
| Weight | 0.5 lb |
| Carton | 1 per carton |
| Price | $114.61 each |
| Minimum Order Quantity | 1 |
| Stock Availability |
|
| Features | Eaton’s R5 Series of Rotary Disconnects, available in non-fusible configurations from 16A up to 80A, are UL508 approved and marked suitable for use as a motor disconnect. Short-circuit rating up to 65 kAIC when protected by appropriate upstream fusing. |
| Application | Power Distribution |
| Standards Met | UL 508, CSA Certified, IEC Rated, EN Listed, CCC Marked |
| Made in USA | Yes |
