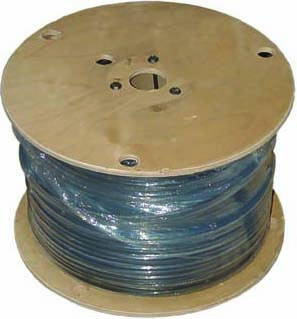

RX63WG500 – 6/3 WG Romex-500′
$
(per )
(Each)
$3.15
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | RX63WG500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 63950005 |
| Description | 6/3 WG Romex-500′ |
| Slang Terms | Non-Metallic Sheathed Cable, Thermoplastic-Sheathed Cable, 220 Wire |
| Categories | Non-Metallic Cable – NM-B – NMD90 |
| Classification | Romex (RX) & Uf Cable |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886263712 / 00032886263712 |
| Weight per unit | 0.36 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: Foot |
| Unit Price: $3.15 (Per Foot) | |
| Reel Price: $1,576.56 (Per 500 Feet) | |
| Stock Availability | Nacogdoches: 1,000 Feet (Check another store) |
| All Stores: 90,415 Feet | |
| Features | Conductor Size: #6 AWG |
| Current Rating: 55 A | |
| Number of Conductors: 3 | |
| Voltage Rating: 600 V | |
| Material, Color, and Finish | Conductor Material: Annealed Copper |
| Jacket Material: Nylon | |
| Color: Black; White; Red | |
| Insulation Material: PVC | |
| Dimensions and Weight | Overall Length: 500 ft |
| Length: 500 | |
| Product Type | Nonmetallic Sheathed Cable |
| Detailed Description | Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductors. Color-Coded Jacket. Simpull Jacket Designed for Easier Pulling. |
| Features | Southwire Romex(R) Brand SIMpull(R) NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire. Copper conductors are annealed (soft) copper. Stranded conductors are compressed stranded. Conductor insulation is 90°C-rated polyvinyl chloride (PVC), nylon jacketed. Romex(R) Brand SIMpull(R) NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification; White – 14 AWG, Yellow – 12 AWG, Orange – 10 AWG, and Black. |
| Short Description | Nonmetallic Sheathed Cable, 6/3 AWG with ground, 500 ft, Stranded |
| Additional Information | Easy Pulling |
| Extra Long Description | SWC 63950005 NMB 6/3 G 500R |
| Similar Brands | Romex® |
| Long Description | Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductors. Color-Coded Jacket. SIMpull Jacket Designed for Easier Pulling. |
| Special Features | No Lube |
| Also Known As | Non-Metallic Sheathed Cable, Thermoplastic-Sheathed Cable, 220 Wire |
| Solid/Strand | Stranded |
| Number of Strands | 7 |
| Outside Diameter | 650 mil |
| Insulation Thickness | 35 mil |
| Maximum Operating Temperature | +90 °C |
| Standards Met | NEC; Federal Specification A-A-59544; UL 83/719 |
| Made in USA | yes |
| Media | Yes |
| Brand | Copper |
| GTIN | 00032886263712 |
| UPC | 032886263712 |
| Category Description | ROMEX (RX) & UF CABLE |
| Type | NM-B |
| Packaging | Package Type: Reel |
| Weight | 357 lb/mft |
| Weight per foot | 0.36 |
| Carton | 500 |
| Application | Dry Location; Residential |
