RX82WG500 – 8/2 WG Romex-500′
$
(per )
(Each)
$766.28
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | RX82WG500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 28893615 |

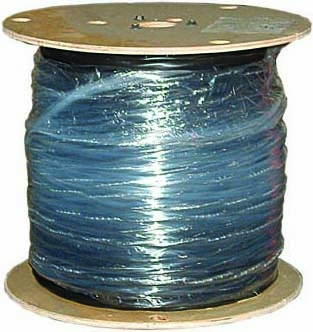

| Description | 8/2 WG Romex-500′ |
| Long Description | Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductors. Color-Coded Jacket. SIMpull Jacket Designed for Easier Pulling. |
| Short Description | Nonmetallic Sheathed Cable, 8/3 AWG with ground, 500 ft, Stranded |
| Slang Terms | Non-Metallic Sheathed Cable, Thermoplastic-Sheathed Cable, 220 Wire |
| Categories | Non-Metallic Cable – NM-B – NMD90 |
| Classification | Romex (RX) & Uf Cable |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886263163 / 00032886263163 |
| Weight per unit | 0.189 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: 500 Feet; Unit Price: $1.53 (Per Foot); Reel Price: $766.28 (Per 500 Feet) |
| Stock Availability | Nacogdoches: 500 Feet; All Stores: 185,875 Feet |
| Conductor Size | #8 AWG |
| Current Rating | 40 A |
| Number of Conductors | 2 |
| Voltage Rating | 600 V |
| Conductor Material | Annealed Copper |
| Jacket Material | Nylon |
| Color | Black; White |
| Insulation Material | PVC |
| Overall Length | 500 ft |
| Length | 2692 |
| Product Type | Nonmetallic Sheathed Cable |
| Features | Southwire Romex® Brand SIMpull® NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire. Copper conductors are annealed (soft) copper. Stranded conductors are compressed stranded. Conductor insulation is 90°C-rated polyvinyl chloride (PVC), nylon jacketed. Romex® Brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification; White – 14 AWG, Yellow – 12 AWG, Orange – 10 AWG, and Black. |
| Additional Information | Easy Pulling |
| Extra Long Description | SWC 28893615 NMB 8/2 G 500Sp |
| Similar Brands | Romex® |
| Also Known As | Non-Metallic Sheathed Cable; Thermoplastic-Sheathed Cable; 220 Wire |
| Solid/Strand | Solid |
| Number of Strands | 7 |
| Outside Diameter | 612 x 269 mil |
| Insulation Thickness | 32 mil |
| Maximum Operating Temperature | +90 °C |
| Standards Met | NEC; Federal Specification A-A-59544; UL 83/719 |
| Made in USA | Yes |
| Media | Yes |
| Strands | 1 |
| Manufacturer Information | Brand: Copper; Manufacturers Part Number: 28893615; GTIN: 00032886263163; UPC: 032886263163 |
| Category Description | ROMEX (RX) & UF CABLE |
| Availability Minimum Qty | 500 |
| Packaging | Package Type: Spool |
| Weight | 186 lb/mft |
| Weight per Foot | 0.189 |
| Carton | 500 |
| Applications | Dry Location; Residential |
