(Each)
$269.70
(Each)
(per 1)
In Stock Locally
$269.70
| Field | Details |
|---|---|
| Catalog Number | RX83WG125 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 63949202 |

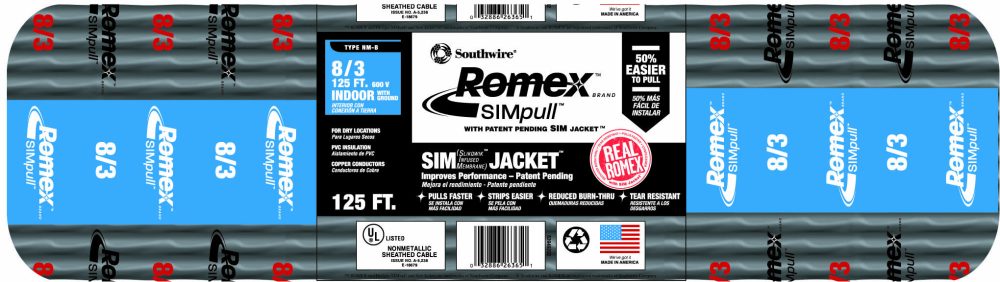

| Description | 8/3 WG Romex-125′ Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductors. Color-Coded Jacket. Simpull Jacket Designed For Easier Pulling. |
| Slang Terms | Non-Metallic Sheathed Cable, Thermoplastic-Sheathed Cable, 220 Wire |
| Categories | Non-Metallic Cable – NM-B – NMD90 |
| Classification | Romex (RX)& Uf Cable |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886263651 / 00032886263651 |
| Weight per unit | 0.27 (lbs/ft) |
| Price & Packaging | |
| – Minimum Order Quantity | 125 Feet |
| – Unit Price | $2.16 (Per Foot) |
| – Reel Price | $269.70 (Per 125 Feet) |
| Stock Availability | |
| – Nacogdoches | 250 Feet (Check another store) |
| – All Stores | 107,625 Feet |
| Features | |
| – Conductor Size | #8 AWG |
| – Current Rating | 40 A |
| – Number of Conductors | 3 |
| – Voltage Rating | 600 V |
| Material, Color, and Finish | |
| – Conductor Material | Annealed Copper |
| – Jacket Material | Nylon |
| – Color | Black; White; Red |
| – Insulation Material | PVC |
| Dimensions and Weight | |
| – Overall Length | 125 ft |
| – Length | 125 |
| Descriptions | |
| – Product Type | Nonmetallic Sheathed Cable |
| – Description | 8/3 WG ROMEX-125′ |
| – Additional Information | Easy Pulling |
| – Features | Southwire Romex(R) Brand SIMpull(R) NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire. Copper conductors are annealed (soft) copper. Stranded conductors are compressed stranded. Conductor insulation is 90°C-rated polyvinyl chloride (PVC), nylon jacketed. Romex(R) Brand SIMpull(R) NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification;White – 14 AWG, Yellow – 12 AWG, Orange – 10 AWG, and Black |
| – Short Description | Nonmetallic Sheathed Cable, 8/3 AWG with ground, 125 ft, Stranded |
| – Extra Long Description | SWC 63949202 NMB 8/3 G 125C |
| – Similar Brands | Romex® |
| – Long Description | Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductors. Color-Coded Jacket. SIMpull Jacket Designed for Easier Pulling. |
| – Special Features | No Lube |
| – Also Known As | Non-Metallic Sheathed Cable, Thermoplastic-Sheathed Cable, 220 Wire |
| – Number of Strands | 7 |
| – Outside Diameter | 565 mil |
| – Insulation Thickness | 35 mil |
| – Maximum Operating Temperature | +90 °C |
| – Standards Met | NEC; Federal Specification A-A-59544; UL 83/719 |
| – Made in USA | Yes |
| – Solid/Strand | Stranded |
| – Media | Yes |
| Manufacturer Information | |
| – Brand | Copper |
| – Manufacturers Part Number | 63949202 |
| – GTIN | 00032886263651 |
| – UPC | 032886263651 |
| Taxonomies, Classifications, and Categories | |
| – Category Description | ROMEX (RX)& UF CABLE |
| – Type | NM-B |
| Availability | |
| – Minimum Quantity | 125 |
| – Packaging | Coil |
| – Weight | 253 lb/mft |
| – Weight per Foot | 0.27 |
| – Carton | 125 |
| Uses, Certifications, and Standards | |
| – Application | Dry Location; Residential |
