| Field | Details |
|---|---|
| Quick Specs | |
| Catalog Number | SB1810S |
| Vendor Code | NSI |
| Manufacturer | NSI |
| Manufacturer’s Part Number | SB1810S |
| Description | Easy Twist Crimp Sleeve S |

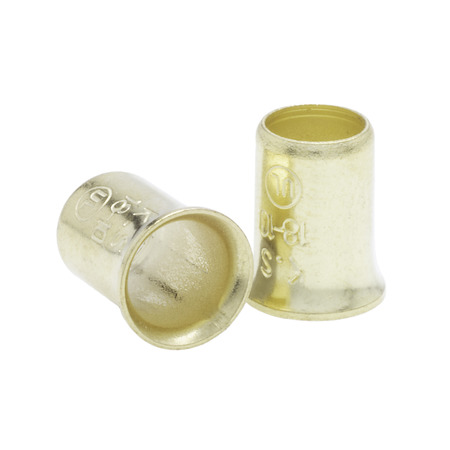

| The Easy-Twist SB1810S 100-Count Pack Of Steel Crimp Sleeve Wire Connectors Are Designed For Use On Wires In The 18-10 AWG Size Range. The Simple Brass-Plated Sleeve Design Forms Low-Resistance Connections In A Tight Space and Installs Using A Specialized Crimp Tool or Adjustable Pliers. Use Crimp Sleeves to Permanently Connect Wires In Grounding, Uninsulated or Small Motor Applications Where Vibration Resistance Is A Concern. | |
| Slang Terms | – |
| Categories | Solderless Connectors – Small Terminals & Connectors |
| Classification | Comp & Mech Lugs and Butt Splices |
| UNSPSC | 39121447 – Wire terminal disconnect |
| UPC/EAN/GTIN | 662381402448 / 6623814024488 / 00662381402448 |
| Weight per unit | 0.23 lbs/each |
| Price & Packaging | |
| Minimum Order Quantity | 100 |
| Unit Price | $0.09 (Each) |
| Carton Price | $8.86 (Per 100) |
| Stock Availability | Nacogdoches: 0 (Find nearest stock) All Stores: 91,000 |
| Features | |
| Number of Conductors | 1 |
| Poles | 1 |
| Wire Size | 18-10 AWG |
| Voltage Rating | 600 V |
| Material | Steel |
| Material, Color, and Finish | |
| Finish | Steel |
| Color | Steel |
| Dimensions and Weight | |
| Size | L = 0.374 in, W = 0.240 in, ID = 0.204 in |
| Descriptions | |
| Extra Long Description | NSI SB1810S Easy Twist Crimp Sleeve |
| Product Type | Easy Twist Crimp Sleeve Steel 18-10 |
| Description (short) | EASY TWIST CRIMP SLEEVE S |
| Features | Connecting wires is faster and easier than ever with the professional performance features of Easy-Twist wire connectors from NSI. The steel crimp sleeve wire connector provides a quick, economic and vibration-resistant way to form permanent connections in most applications. Simply twist your wires to form a connection, then slide the sleeve (ground cap) down and crimp it tight with pliers or crimp tool. |
| Long Description | The Easy-Twist SB1810S 100-Count Pack of Steel Crimp Sleeve Wire Connectors are designed for use on wires in the 18-10 AWG size range. The simple brass-plated sleeve design forms low-resistance connections in a tight space and installs using a specialized crimp tool or adjustable pliers. Use crimp sleeves to permanently connect wires in grounding, uninsulated or small motor applications where vibration resistance is a concern. |

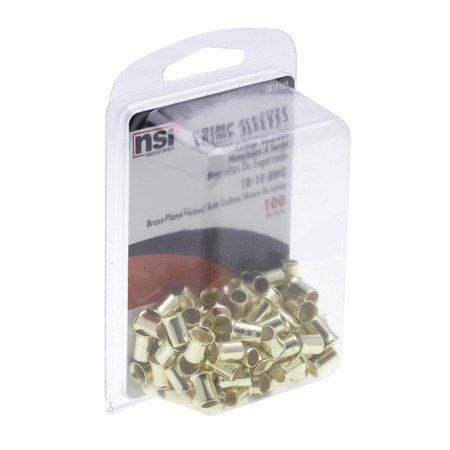

| Special Features | Steel Crimp Sleeves – 100 Pcs Blister |
| Additional Information | |
| Warranty | 1 YEAR |
| Wire Type | CU Wire Only |
| Manufacturer Information | |
| Manufacturers Part Number | SB1810S |
| Brand | NSI |
| GTIN | 00662381402448 |
| UPC | 662381402448 |
| Taxonomies, Classifications, and Categories | |
| Category Description | Comp & Mech Lugs and Butt Splices |
| Type | Crimp Sleeve Wire Connectors |
| Availability | Minimum qty 100 |
| Packaging | |
| Weight per each | 0.23 |
| Carton | 100 |
| Uses, Certifications, and Standards | |
| Environmental Conditions | 105 °C |
| Temperature Rating | 105 °C |
| Application | Splicing Wire |
| Standard | UL 486C |
