| Category | Details |
|---|---|
| Catalog Number | SC4 |
| Vendor Code | NSI |
| Manufacturer | NSI Industries |
| Manufacturer’s Part Number | SC-4 |

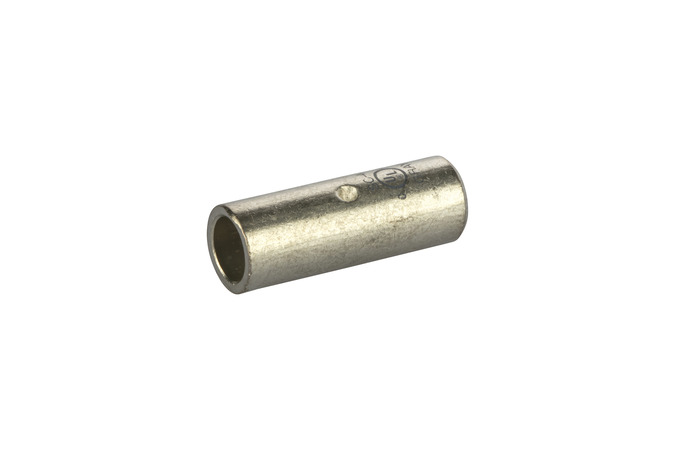

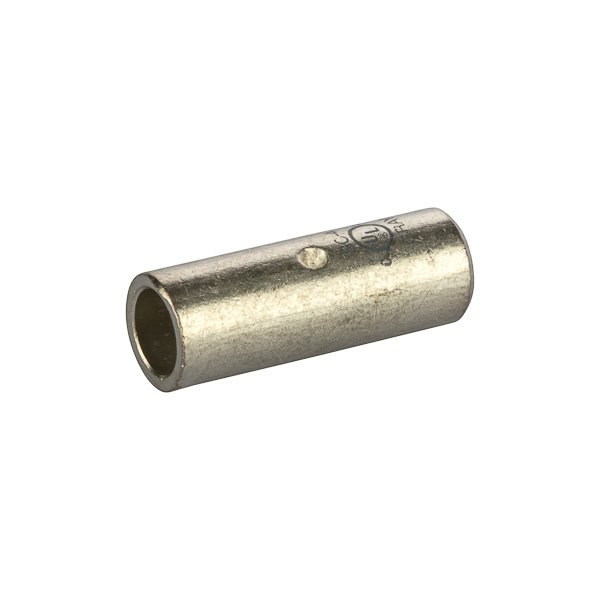

| Description | #4 Cu Butt Splice |
| Long Description | Butt Splice Connector, #6 – #4 AWG Conductor Size, Non-Insulated, Copper, Gray (Code) Insulation Color, 2 Conductors, 1 in Length, Compression Terminal, 600 V, 0.03 lb/EA |
| Short Description | #6 to #4 AWG Butt Splice, Non-Insulated, 1 in, 600 V |
| Product Type | Butt Splice Connector |
| Extra Long Description | NSI SC-4 4 AWG Copper Short Barrel |
| Special Features | Standard Barrel; High Conductivity; Tin Plated; Die Index & Color Coded |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Comp & Mech Lugs and Butt Splices |
| UNSPSC | 39121449 – Wire or cable compression splice |
| UPC/EAN/GTIN | 662381037022 / 6623810370220 / 00662381037022 |
| Weight per Unit | 0.03 lbs/each |
| Minimum Order Quantity | 1 |
| Unit Price | $5.62 (Each) |
| Carton Price | $562.09 (Per 100) |
| Stock Availability | Nacogdoches: 0, All Stores: 1,158 |
| Terminal Type | Compression |
| Poles | 1 |
| Number of Conductors | 2 |
| Voltage Rating | 600 V |
| Material | Copper |
| Finish | Tin Plated |
| Insulation Color | Gray (Code) |
| Overall Length | 1 in |
| Size | L=1.00 – OD=.340 – ID=.250 |
| Minimum Conductor Size | #6 AWG |
| Maximum Conductor Size | #4 AWG |
| Insulated/Non-Insulated | Non-Insulated |
| Max Operating Temp | +90 °C |
| Applications | Terminate; Splice; Tap Power Connectors |
| Standards Met | UL486A/B, UL467, cULus 155027, NEC 310.15 |
| Type | Short Barrel – CU Splice |
| Warranty | 1 YEAR |
