(Each)
$5.26
(Each)
(per 1)
In Stock Locally
$5.26
| Field | Details |
|---|---|
| Catalog Number | SE00W84BK250 |
| Vendor Code | COR |
| Manufacturer | Cables & Cords |
| Manufacturer’s Part Number | 55045003 |

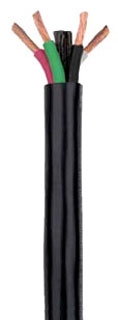

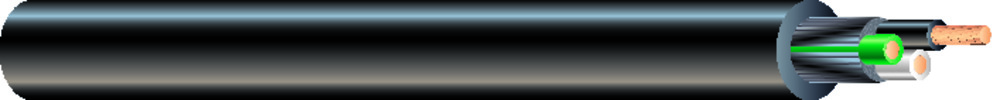

| Description | 8/4 Seoow 600V Black Cord 250′ Reel |
| Long Description | Portable Cord, Stranded, 96/28 mm Core Strands, #8 AWG Conductor Size, Copper Conductor Material, Thermoplastic Elastomer (TPE) Jacket Material, Thermoplastic Elastomer (TPE) Insulation Material, 35 A, Black, Green, Red, White, 4 Conductors, 250 ft Overall Length, 0.783 in Outside Diameter, 0.05 in Insulation Thickness, -50 °C to +105 °C Operating Temperature, 0.43 lb/ft |
| Short Description | 500 ft Portable Cord, Stranded, 8/4 AWG SEOOW, 0.783 in |
| Slang Terms | – |
| Categories | Enhanced Commodity Codes – Wire |
| Classification | Portable Cords, Voice, Data, Video Wire & Cable |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886039638 / 00032886039638 |
| Weight per Unit | 0.43 lbs/ft |
| Price & Packaging | Minimum Order Quantity: Foot Unit Price: $5.26 (Per Foot) Reel Price: $1,315.31 (Per 250 Feet) |
| Stock Availability | Nacogdoches: 1,000 Feet (Check another store) All Stores: 42,697 Feet |
| Features | Conductor Size: #8 AWG Current Rating: 35 A Conductor Material: Copper Jacket Material: Thermoplastic Elastomer (TPE) Insulation Material: Thermoplastic Elastomer (TPE) Color: Black, Green, Red, White |
| Dimensions and Weight | Overall Length: 250 ft Outside Diameter: 0.783 in Insulation Thickness: 0.05 in Weight: 0.43 lb/ft |
| Additional Information | Chemical Resistant; Oil Resistant; Water Resistant |
| Solid/Strand | Stranded |
| Core Strands | 96/28 mm |
| Minimum Operating Temperature | -50 °C |
| Maximum Operating Temperature | +105 °C |
| For Use With | Industrial Control and Robotic System; Mining; Motor Control; Outdoor; Pushbutton Remote Control; Stage Equipment and Lighting |
| Standards Met | RoHS Compliant; NEC 400; Federal Specification JC-580B; UL Listed; CSA Certified; MSHA |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | Brand: Cables & Cords Manufacturer’s Part Number: 55045003 GTIN: 00032886039638 UPC: 032886039638 |
| Category Description | Portable Cords, Voice, Data, Video Wire & Cable |
| Packaging | Package Type: Reel Weight per foot: 0.43 lb Carton Quantity: 250 |
