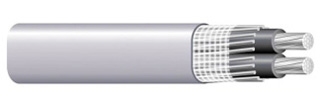

SER401000 – Ser 4/0-4/0-4/0-2/0 Alu 1000′
$
(per )
(Each)
$5,289.13
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | SER401000 |
| Vendor Code | ALU |
| Manufacturer | Aluminum |
| Manufacturer’s Part Number | 13107806 |
| Description | Ser 4/0-4/0-4/0-2/0 Alu 1000′ |
| Product Type | Service Entrance Cable |
| Short Description | Service Entrance Cable, 19 Strands, 4/0 AWG, 500′ |
| Long Description | Service Entrance Cable, Stranded, 19 Strands, 4/0 AWG Conductor Size, Aluminum Conductor Material, PVC Jacket Material, Polyethylene (XLPE) Insulation Material, 600 V, 150 A (60°C);180 A (75°C);205 A (90°C), Gray, 3 Conductors, 1000 ft Overall Length, 1503 mil Outside Diameter, +90 °C Operating Temperature, 968 lb/mft |
| Extra Long Description | SER TYPE; 1000 FT; 1000 LENGTH IN FT; 1503 MIL OUTER DIAMETER; ALUMINUM CONDUCTOR MATERIAL; UL 44, UL 83, UL 854 APPROVAL; 600 V VOLTAGE RATING; 150 AMPERE (60 DEG C), 180 AMPERE (75 DEG C), 205 AMPERE (90 DEG C) CURRENT RATING; 90 DEG C TEMPERATURE RATING; 968 LB/MFT WEIGHT; WITH GROUND WIRE; (3) 4/0 AWG CONDUCTOR SIZE; GRAY PVC JACKET MATERIAL; REEL PACKAGE TYPE; 19 STRANDS STRANDING; 2/0 AWG GROUND CONDUCTOR SIZE; SOUTHWIRE[R] BRAND |
| Commodity Description | ALUMINUM SE CABLE-SER / NS-1 / NS-2 |
| Slang Terms | — |
| Categories | Service Entrance Cable – Aluminum-Ser /NS-1/NS-2 |
| Classification | Service Entrance – Seu & Ser |
| UNSPSC | 26121614 – Building cable |
| UPC/GTIN | 032886584961 / 00032886584961 |
| Weight per unit | 0.942 (lbs/ft) |
| Weight | 968 lb/mft |
| Minimum Order Quantity | 1,000 Feet |
| Price per Unit | $5.29 (Per Foot) |
| Price per Reel | $5,289.13 (Per 1,000 Feet) |
| Stock Availability Nacogdoches | 1,000 Feet (Check another store) |
| Stock Availability All Stores | 177,805 Feet |
| Current Rating | 150 A (60°C);180 A (75°C);205 A (90°C) |
| Number of Conductors | 3 |
| Conductor Size | 4/0 AWG |
| Stranding | 19 STRANDS |
| Voltage Rating | 600 V |
| Conductor Material | Aluminum |
| Jacket Material | PVC |
| Insulation Material | Polyethylene (XLPE) |
| Color | Gray |
| Overall Length | 1000 ft |
| Outer Diameter | 1503 MIL |
| Length | 1000 ft |
| Operating Temperature | +90 °C |
| Sunlight Resistant | Yes |
| Standards Met | UL 44; UL 83; UL 854; RoHS Compliant; NEC/NFPA 70; Federal Specification A-A-59544 |
| Made in USA | Yes |
| Solid/Strand | Stranded |
| Number of Strands | 19 |
| Ground Type | WITH GROUND WIRE |
| Ground Conductor Size | 2/0 AWG |
| Brand | Aluminum |
| Model | SE |
| GTIN | 00032886584961 |
| UPC | 032886584961 |
| Category Description | SERVICE ENTRANCE – SEU & SER |
| Type | SER |
| Availability Minimum Qty | 1000 |
| Packaging Type | Reel |
| Carton Quantity | 1000 |
| Application | Distribution Panelboard; Wet or Dry Locations |
| Approval | UL 44/83/854 |
| Temperature Rating | 90 DEG C |
