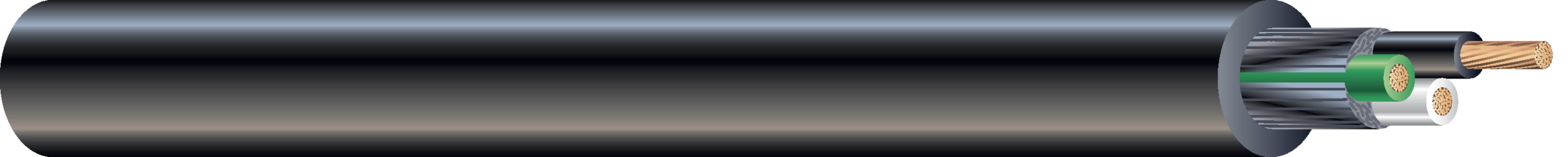

SJEW123BK250 – 12/3 Sjew 300V Black Cord 250′ Reel
$
(per )
(Each)
$1.71
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | SJEW123BK250 |
| Vendor Code | COR |
| Manufacturer | Cables & Cords |
| Manufacturer’s Part Number | 55039604 |
| Description | 12/3 Sjew 300V Black Cord 250′ Reel Portable Cord, Stranded, 65/30 MM Core Strands, #12 AWG Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green and White, 3 Conductors, 250 FT Overall Length, 0.435 In Outside Diameter, 0.031 In Insulation Thickness, +90 °C (UL) Operating Temperature, 0.13 LB/MFT |
| Slang Terms | — |
| Categories | 300V General Duty Cord & Cable – SJ-Sje |
| Classification | Portable Cords, Voice, Data, Video Wire & Cable |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886038907 / 00032886038907 |
| Weight per unit | 0.13 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: Foot Unit Price: $1.71 (Per Foot) Reel Price: $426.41 (Per 250 Feet) |
| Stock Availability | Nacogdoches: 250 Feet (Check another store) All Stores: 36,312 Feet |
| Features | Conductor Size: #12 AWG Voltage Rating: 300 V |
| Material, Color, and Finish | Conductor Material: Copper Jacket Material: Thermoplastic Insulation Material: Thermoplastic Color: Black; Green; White |
| Dimensions and Weight | Overall Length: 250 ft Outside Diameter: 0.435 in Insulation Thickness: 0.031 in |
| Product Type | Portable Cord |
| Description (Short) | Portable Cord, Stranded, 65/30 Strands, 12 AWG SJEW, Cut to Length |
| Extra Long Description | SWC 55039604 12-65 CU 3/C BLACK/WHI |
| Long Description | Portable Cord, Stranded, 65/30 mm Core Strands, #12 AWG Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green and White, 3 Conductors, 250 ft Overall Length, 0.435 in Outside Diameter, 0.031 in Insulation Thickness, +90 °C (UL) Operating Temperature, 0.13 lb/mft |
| Additional Information | Solid/Strand: Stranded Core Strands: 65/30 mm Maximum Operating Temperature: +90 °C (UL); +60 °C (CSA) |
| For Use With | Industrial Control and Robotic System; Mining; Motor Control; Outdoor; Pushbutton Remote Control; Stage Equipment and Lighting |
| Standards Met | UL Listed; CSA Certified; MSHA; NEC 400; Federal Specification JC-580B |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | Brand: Cables & Cords Manufacturers Part Number: 55039604 GTIN: 00032886038907 UPC: 032886038907 |
| Taxonomies, Classifications, and Categories | Category Description: Portable Cords, Voice, Data, Video Wire & Cable |
| Packaging | Package Type: Reel Weight: 0.13 lb/mft Weight per foot: 0.13 Carton: 250 |
