| Category | Detail |
|---|---|
| Catalog Number | THHN10BK2500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20505409 |

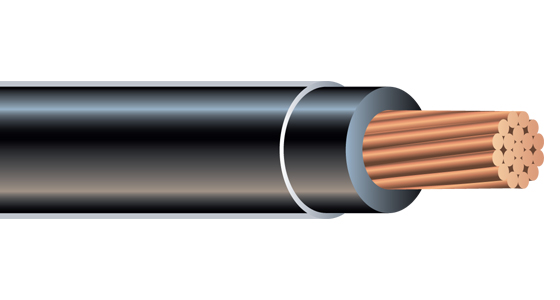

| Description | THHN 1/0 STR Black 2500′ |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW. SIMpull Technology for Easier Pulling. |
| Short Description | THHN Building Wire, 1/0 AWG, Stranded, Annealed Copper, Black, 2500 |
| Slang Terms | (None Provided) |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886134012 / 00032886134012 |
| Weight per Unit | 0.371 lbs/ft |
| Minimum Order Quantity | 2,500 Feet |
| Price per Unit | $3.01 (Per Foot) |
| Price per Reel | $7,515.15 (Per 2,500 Feet) |
| Stock Availability (Nacogdoches) | 5,000 Feet (Check another store) |
| Stock Availability (All Stores) | 308,961 Feet |
| Current Rating | 125 A (60°C); 150 A (75°C); 170 A (90°C) |
| Conductor Size | 1/0 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Jacket Material | Nylon |
| Conductor Material | Annealed Copper |
| Color | Black |
| Insulation Material | PVC |
| Overall Length | 2500 ft |
| Length | 2500 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology for Easier Pulling; Sunlight Resistant |
| Product Type | THHN Building Wire |
| Features | Southwire® SIMpull THHN® copper conductors made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding; 250 kcmil and larger use compressed copper stranding. Tough heat/moisture resistant PVC insulation with nylon jacket utilizing SIMpull® Technology. Available in many colors and striped configurations. Some colors subject to economic availability. |
| Description (repeated) | THHN 1/0 STR BLACK 2500′ |
| Extra Long Description | SWC 20505409 THHN 1/0 Str Cu SIM Bk |
| Special Features | No Lube |
| Number of Strands | 19 |
| Outside Diameter | 474 mil |
| Insulation Thickness | 50 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); National Electrical Code NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM B3, B8, B787; UL Listed; cULus Listed; CT Rated |
| Made in USA | Yes |
| Media | Yes |
| Tip Size | 2500 ft. Spool |
| Brand | Copper |
| GTIN | 00032886134012 |
| UPC | 032886134012 |
| Category Description | BUILDING WIRE |
| Type | THHN-2 |
| Availability Minimum Qty | 2500 |
| Package Type | Reel |
| Weight | 372 lb/mft |
| Weight per Foot | 0.371 |
| Carton | 2500 |
| Application | Commercial; Industrial |
