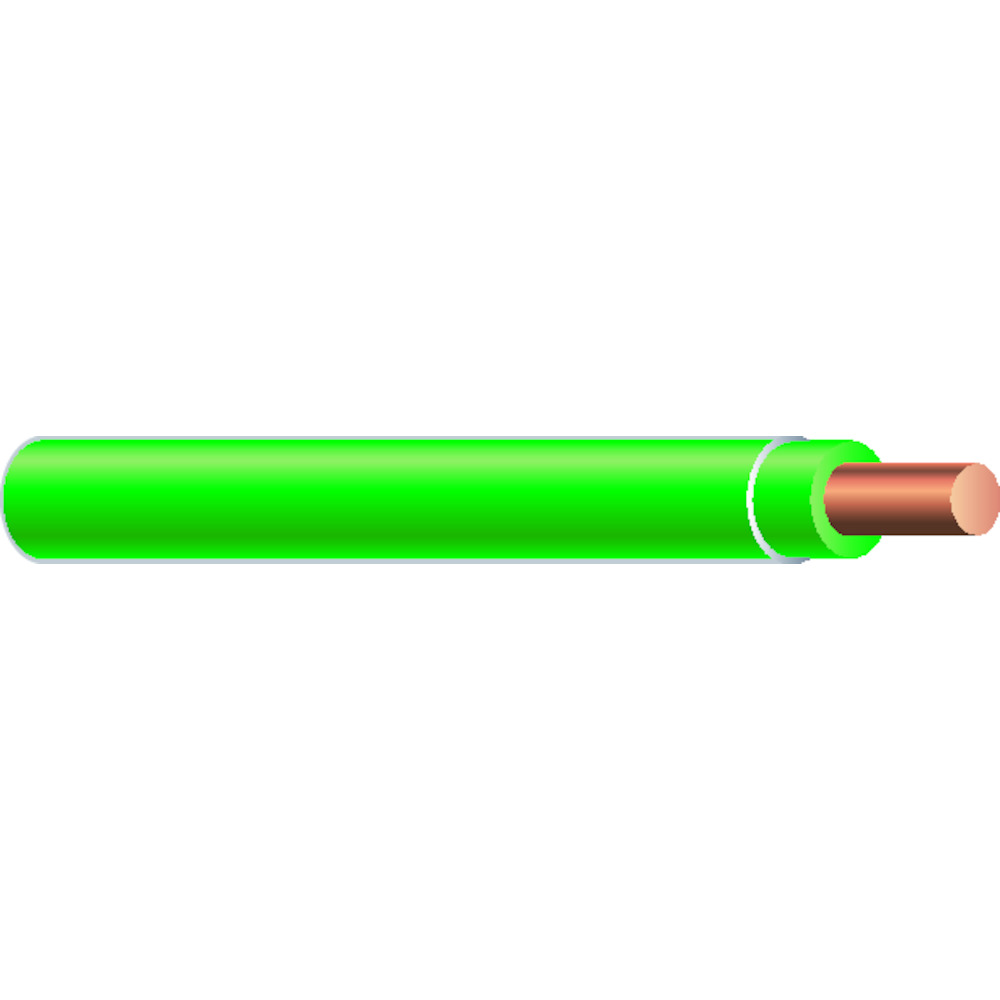

THHN10S0LGN500 – THHN 10 Sol Green 500′
$
(per )
(Each)
$140.23
(Each)
$
(per 1)
$
(per 1000)
Availability:
In Stock Locally
| Field | Value |
|---|---|
| Catalog Number | THHN10S0LGN500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 11599801 |
| Description | THHN 10 SOL Green 500′ — 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath. Heat, Moisture, Gasoline, and Oil Resistant II. Rated THHN and THWN. Also Rated AWM. |
| Categories | Copper Building Wire – THHN-T90-Sol (Solid) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886225406 / 00032886225406 |
| Weight per Unit | 0.037 lbs/ft |
| Price & Packaging | Minimum Order Quantity: 500 FeetUnit Price: $0.28/ftReel Price: $140.23 (Per 500 Feet)Standard Packaging: $280.46 (Per 1,000 Feet) |
| Current Rating | 30 A |
| Conductor Size | #10 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Conductor Material | Annealed Copper |
| Color | Green |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Overall Length | 500 ft |
| Length | 500 ft |
| Product Type | THHN Copper Building Wire |
| Additional Features | Heat Resistant; Moisture Resistant; SIMpull® Technology |
| Technical Features | Soft drawn copper, unilay or compressed stranding, nylon jacket, PVC insulation. Multiple colors and striped configurations available. |
| Short Description | THHN Copper Building Wire, #10 AWG, Solid, Yellow, 500 |
| Alternate Description | THHN 10 SOL GREEN 500′ |
| Extra Long Description | SWC 11599801 THHN 10 Sol Cu Gn 500S |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated AWM. |
| Outside Diameter | 150 mil |
| Insulation Thickness | 20 mil |
| Max Operating Temperature | +90°C |
| Standards Met | RoHS Compliant; ASTM B3, B8, B787; Federal Spec A-A-59544; NFPA 70; NEMA WC-70; UL 83/758/1063/1581; UL (Canada and US); CSA C22.2 |
| Made in USA | Yes |
| Media | Yes |
| Brand | Copper |
| GTIN | 00032886225406 |
| UPC | 032886225406 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Minimum Quantity | 500 |
| Package Type | Spool |
| Weight (lb/mft) | 36 |
| Weight per foot | 0.037 lbs/ft |
| Carton | 500 ft |
| Package | 1,000 ft |
| Application | Building; Commercial; Industrial |
