(Each)
$734.35
(Each)
(per 1)
In Stock Locally
$734.35
| Field | Value |
|---|---|
| Catalog Number | THHN10STGN2500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22977306 |

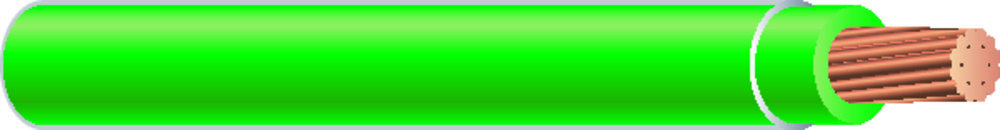

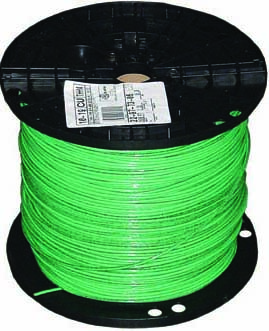

| Description | THHN 10 STR Green 2500′ |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN, THWN, MTW, AWM. |
| Slang Terms | – |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886230424 / 00032886230424 |
| Weight per unit | 0.038 lbs/ft |
| Minimum Order Quantity | 2,500 Feet |
| Unit Price | $0.29 (Per Foot) |
| Reel Price | $734.35 (Per 2,500 Feet) |
| Conductor Size | #10 AWG |
| Current Rating | 30 A |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Jacket Material | Nylon |
| Conductor Material | Annealed Copper |
| Color | Green |
| Insulation Material | PVC |
| Overall Length | 2500 ft |
| Length | 2500 |
| Product Type | THHN Building Wire |
| Short Description | THHN Building Wire, 10 AWG, Stranded, Annealed Copper, Yellow, 2500 |
| Additional Features | Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology; Sunlight Resistant |
| Number of Strands | 19 |
| Outside Diameter | 161 mil |
| Insulation Thickness | 20 mil |
| Max Operating Temperature | 90 °C |
| Standards Met | CSA C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE 90°C; Fed. Spec A-A-59544; NEMA WC-70; NEC (NFPA 70); RoHS/REACH; ASTM B3, B8, B787; UL, cULus |
| Made in USA | Yes |
| Media Available | Yes |
| Brand | Copper |
| GTIN | 00032886230424 |
| Type | THHN |
| Packaging | Spool |
| Weight | 38 lb/mft |
| Carton | 2500 |
| Application | Commercial; Industrial |
