(Each)
$734.35
(Each)
(per 1)
In Stock Locally
$734.35
| Field | Details |
|---|---|
| Catalog Number | THHN10STGY2500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22981506 |

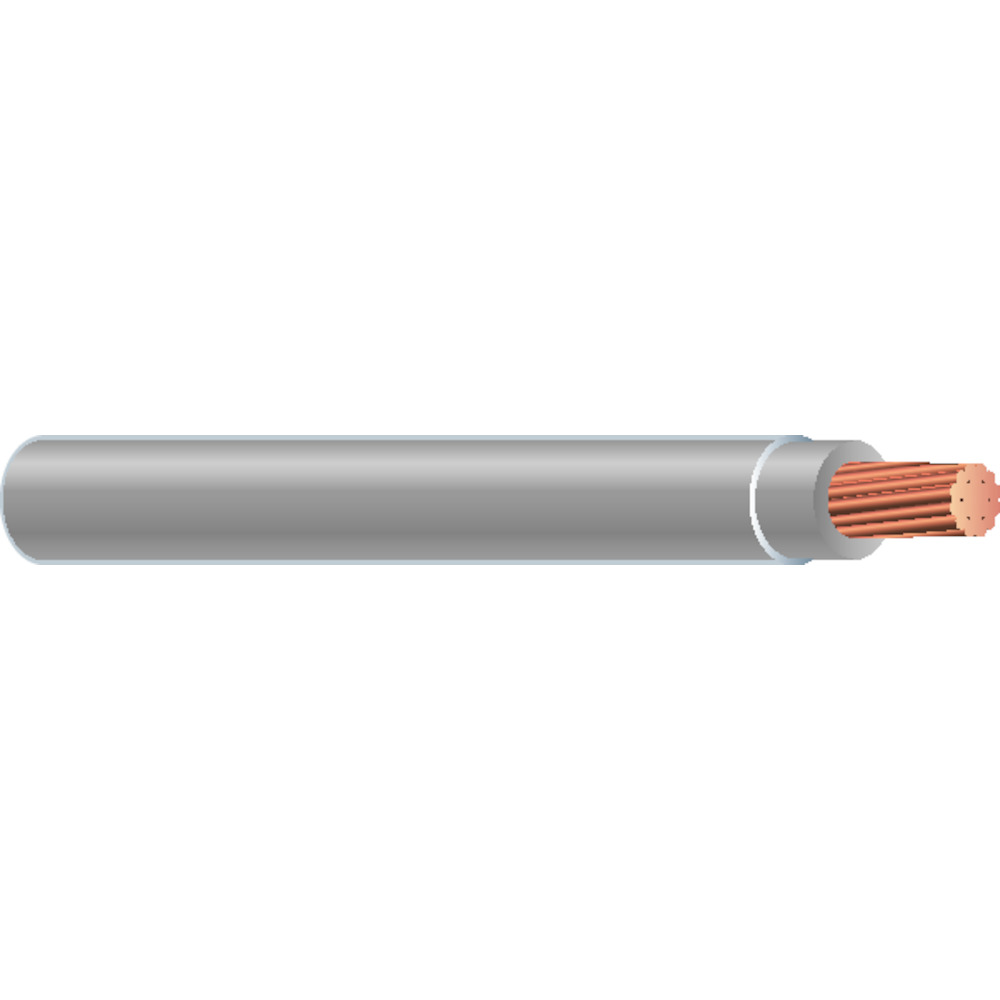

| Description | THHN 10 STR Gray 2500′ |
| Slang Terms | – |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886230615 / 00032886230615 |
| Weight per unit | 0.038 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: 2,500 Feet Unit Price: $0.29 (Per Foot) Reel Price: $734.35 (Per 2,500 Feet) |
| Stock Availability | Nacogdoches: 0 Feet (Find nearest stock) All Stores: 312,300 Feet |
| Features | Conductor Size: #10 AWG Current Rating: 30 A Number of Conductors: 1 Voltage Rating: 600 V |
| Material, Color, and Finish | Conductor Material: Annealed Copper Jacket Material: Nylon Insulation Material: PVC Color: Gray |
| Dimensions and Weight | Overall Length: 2,500 ft Outside Diameter: 161 mil Insulation Thickness: 20 mil Weight: 38 lb/mft Weight per foot: 0.038 |
| Descriptions | Product Type: THHN Building Wire Short Description: THHN Building Wire, 10 AWG, Stranded, Annealed Copper, Gray, 2500 Extra Long Description: SWC 22981506 THHN 10 Str Cu Gy 2500 Long Description: 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, etc. |
| Additional Features | Heat, Moisture, Gasoline and Oil Resistant II SIMpull® Technology for Easier Pulling Sunlight Resistant |
| Solid/Strand | Stranded |
| Number of Strands | 19 |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE; Fed. Spec. A-A-59544; NEMA WC-70 (ICEA S-95-658); NEC (NFPA 70); RoHS/REACH Compliant; ASTM B3, B8, B787; UL/cULus Listed; VW-1 Sizes; AWM Sizes |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | Brand: Copper Manufacturer’s Part Number: 22981506 GTIN: 00032886230615 UPC: 032886230615 |
| Taxonomies & Classification | Category Description: BUILDING WIRE Type: THHN |
| Packaging | Package Type: Spool Carton: 2500 |
| Uses, Certifications, Standards | Application: Commercial; Industrial |
