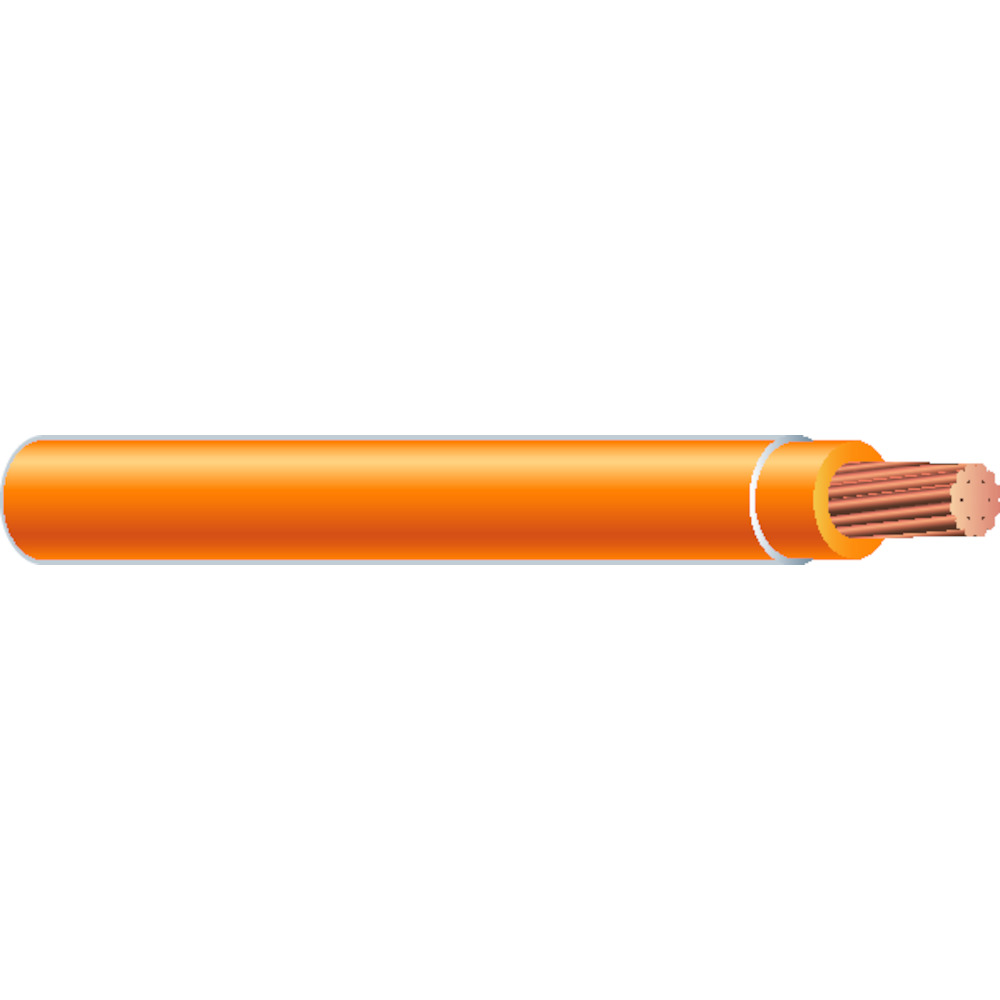

THHN12S0L0R500 – THHN 12 Sol Orange 500′
$
(per )
(Each)
$89.63
(Each)
$
(per 1)
$
(per 2000)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | THHN12S0L0R500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 11593101 |
| Description | THHN 12 Sol Orange 500′ |
| Voltage | 600 Volts |
| Conductor Material | Annealed Copper |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Color | Orange (Insulation) |
| Conductor Size | #12 AWG |
| Number of Conductors | 1 |
| Current Rating | 20 A |
| Weight per unit | 0.023 lbs/ft |
| Minimum Order Quantity | 500 Feet |
| Unit Price | $0.18 (Per Foot) |
| Reel Price | $89.63 (Per 500 Feet) |
| Standard Packaging Price | $358.52 (Per 2,000 Feet) |
| Stock Availability (Nacogdoches) | 500 Feet (Check another store) |
| Stock Availability (All Stores) | 420,000 Feet |
| Overall Length | 500 ft |
| Outside Diameter | 119 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temperature | +90 °C |
| Product Type | THHN Copper Building Wire |
| Short Description | THHN Copper Building Wire, #12 AWG, Solid, Yellow, 500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated AWM. |
| Features | Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding while 250 kcmil and larger sizes use compressed copper stranding. Tough heat and moisture resistant PVC insulation with nylon jacket utilizing SIMpull(R) Technology. Available in many colors. |
| Additional Information | Heat Resistant; Moisture Resistant |
| Standards Met | RoHS Complaint; ASTM B3; ASTM B8; ASTM B787; Federal Specification A-A-59544; NFPA 70; NEMA WC-70; UL 83/758/1063/1581; UL Canada; UL US; CSA C22.2 |
| Made in USA | Yes |
| Brand | Copper |
| GTIN | 00032886224454 |
| UPC | 032886224454 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Minimum Quantity Available | 500 |
| Packaging | Spool |
| Weight | 23 lb/mft |
| Carton Quantity | 500 |
| Package Quantity | 2000 |
| Application | Building; Commercial; Industrial |
