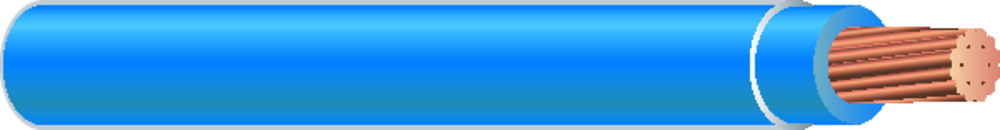

THHN12S0LBL500 – THHN 12 Sol Blue 500′
$
(per )
(Each)
$89.63
(Each)
$
(per 1)
$
(per 2000)
Availability:
In Stock Locally
| Field | Value |
|---|---|
| Catalog Number | THHN12S0LBL500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 11590701 |
| Description | THHN 12 Sol Blue 500′ |
| Product Type | THHN Copper Building Wire |
| Short Description | THHN Copper Building Wire, #12 AWG, Solid, Yellow, 500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated AWM. |
| Extra Long Description | SWC 11590701 THHN 12 Sol Cu Be 500S |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886224300 / 00032886224300 |
| Weight per Unit | 0.023 lbs/ft |
| Weight | 23 lb/mft |
| Minimum Order Quantity | 500 Feet |
| Unit Price | $0.18 (Per Foot) |
| Reel Price | $89.63 (Per 500 Feet) |
| Standard Packaging | $358.52 (Per 2,000 Feet) |
| Features | Heat Resistant; Moisture Resistant |
| Current Rating | 20 A |
| Number of Conductors | 1 |
| Conductor Size | #12 AWG |
| Voltage Rating | 600 V |
| Material, Color, and Finish | Annealed Copper Conductor; PVC Insulation; Nylon Jacket; Blue (Insulation) |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Outside Diameter | 119 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temperature | +90 °C |
| Standards Met | RoHS Compliant; ASTM B3, B8, B787; Federal Specification A-A-59544; NFPA 70; NEMA WC-70; UL 83/758/1063/1581; UL Canada; UL US; CSA C22.2 |
| Made in USA | Yes |
| Media | Yes |
| Brand | Copper |
| Packaging | Spool |
| Carton | 500 |
| Package | 2000 |
| Applications | Building; Commercial; Industrial |
