(Each)
$448.15
(Each)
(per 1)
In Stock Locally
$448.15
| Field | Details |
|---|---|

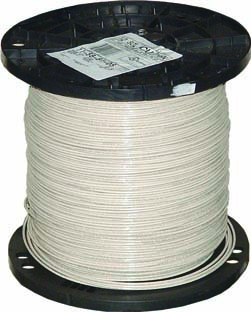

| Catalog Number | THHN12S0LWH2500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 11588105 |
| Description | THHN 12 Sol White 2500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also Rated AWM. |
| Categories | Copper Building Wire – THHN-T90-Sol (Solid) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886224126 / 00032886224126 |
| Weight per unit | 0.023 lbs/ft |
| Price & Packaging | Minimum Order Quantity: 2,500 Feet Unit Price: $0.18 (Per Foot) Reel Price: $448.15 (Per 2,500 Feet) |
| Features | Current Rating: 20 A Number of Conductors: 1 Conductor Size: #12 AWG Voltage Rating: 600 V |
| Material, Color, and Finish | Jacket Material: Nylon Conductor Material: Annealed Copper Color: White (Insulation) Insulation Material: PVC |
| Dimensions and Weight | Overall Length: 2500 sq.ft Length: 2500 |
| Product Type | THHN Copper Building Wire |
| Features (detailed) | Soft drawn copper conductors, combination-unilay stranding, heat and moisture resistant PVC insulation, nylon jacket with SIMpull Technology |
| Short Description | THHN Copper Building Wire, #12 AWG, Solid, Yellow, 500 |
| Additional Features | Heat Resistant; Moisture Resistant |
| Extra Long Description | SWC 11588105 THHN 12 Sol Cu We 2500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated AWM. |
| Additional Information | Media: Yes Outside Diameter: 119 mil Insulation Thickness: 15 mil Max Operating Temperature: +90 °C |
| Standards Met | RoHS Compliant; ASTM B3; ASTM B8; ASTM B787; Federal Specification A-A-59544; NFPA 70; NEMA WC-70; UL 83/758/1063/1581; UL Canada; UL US; CSA C22.2 |
| Made in USA | Yes |
| Brand | Copper |
| GTIN | 00032886224126 |
| UPC | 032886224126 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Availability | Minimum Qty: 2,500 |
| Packaging | Package Type: Spool Weight: 23 lb/mft Weight per foot: 0.023 Carton Qty: 2,500 |
| Uses, Certifications, and Standards | Application: Building; Commercial; Industrial |
