(Each)
$96.02
(Each)
(per 1)
(per 2000)
In Stock Locally
$96.02
| Field | Details |
|---|---|
| Catalog Number | THHN12STBK500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22964101 |

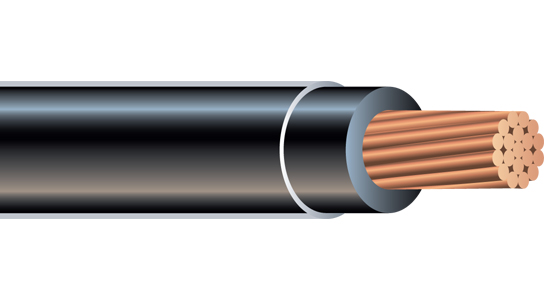

| Description | THHN 12 STR Black 500′ |
| Voltage Rating | 600 Volts |
| Conductor Material | Annealed Copper |
| Conductor Size | #12 AWG |
| Number of Conductors | 1 |
| Jacket Material | Nylon |
| Color | Black |
| Insulation Material | PVC |
| Overall Length | 500 ft |
| Length | 500 |
| Weight per unit | 0.024 (lbs/ft) |
| Weight | 24 lb/mft |
| Minimum Order Quantity | 500 Feet |
| Unit Price | $0.19 (Per Foot) |
| Reel Price | $96.02 (Per 500 Feet) |
| Standard Packaging Price | $384.08 (Per 2,000 Feet) |
| Current Rating | 20 A |
| Product Type | THHN Building Wire |
| Features | Southwire(R) SIMpull THHN(R) copper conductors made with soft drawn copper; Sizes 14 through 4/0 AWG use combination-unilay stranding; 250 kcmil and larger use compressed copper stranding; Tough heat and moisture resistant PVC insulation with nylon jacket using SIMpull(R) Technology; Available in multiple colors and striped configurations; Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling; Sunlight Resistant |
| Short Description | THHN Building Wire, 12 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Extra Long Description | SWC 22964101 THHN 12 Str Cu Bk 500S |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Number of Strands | 19 |
| Outside Diameter | 128 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; UL Listed; cULus Listed; VW-1 Sizes; AWM Sizes |
| Made in USA | Yes |
| Media | Yes |
| Brand | Copper |
| GTIN | 00032886229008 |
| UPC | 032886229008 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Availability | Minimum qty 500 |
| Packaging | Spool |
| Carton | 500 |
| Package | 2000 |
| Application | Commercial; Industrial |
