(Each)
$480.10
(Each)
(per 1)
In Stock Locally
$480.10
| Field | Details |
|---|---|
| Catalog Number | THHN12STBL2500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22967406 |

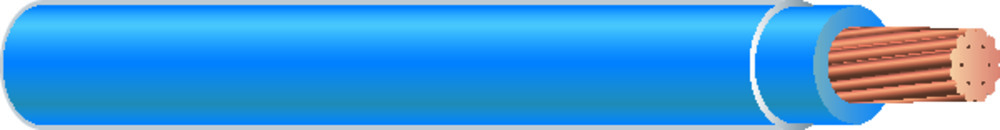

| Description | THHN 12 STR Blue 2500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also Rated MTW and AWM. |
| Slang Terms | (none provided) |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886229329 / 00032886229329 |
| Weight per unit | 0.024 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: 2,500 Feet Unit Price: $0.19 (Per Foot) Reel Price: $480.10 (Per 2,500 Feet) |
| Features | Current Rating: 20 A Conductor Size: #12 AWG Voltage Rating: 600 V Number of Conductors: 1 |
| Material, Color, and Finish | Jacket Material: Nylon Conductor Material: Annealed Copper Color: Blue Insulation Material: PVC |
| Dimensions and Weight | Overall Length: 2500 ft Length: 2500 |
| Descriptions | Features: Southwire® SIMpull THHN® copper conductors made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding; larger sizes use compressed copper stranding. Wire covered with tough heat and moisture resistant PVC insulation with nylon jacket utilizing SIMpull® Technology. Available in many colors including blue. |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology for Easier Pulling; Sunlight Resistant Media: Yes Number of Strands: 19 Outside Diameter: 128 mil Insulation Thickness: 15 mil Maximum Operating Temperature: 90 °C |
| Short Description | THHN Building Wire, 12 AWG, Stranded, Annealed Copper, Yellow, 2500 |
| Description (Alt) | THHN 12 STR BLUE 2500′ |
| Extra Long Description | SWC 22967406 THHN 12 Str Cu Be 2500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM B3, B8, B787; UL Listed; cULus Listed; VW-1 Sizes; AWM Sizes |
| Made in USA | Yes |
| Manufacturer Information | Brand: Copper Manufacturer’s Part Number: 22967406 GTIN: 00032886229329 UPC: 032886229329 |
| Taxonomies, Classifications, Categories | Category Description: BUILDING WIRE Type: THHN |
| Availability | Minimum Quantity: 2500 |
| Packaging | Package Type: Spool Weight: 24 lb/mft Weight per foot: 0.024 Carton: 2500 |
| Uses, Certifications, and Standards | Application: Commercial; Industrial |
