(Each)
$480.10
(Each)
(per 1)
In Stock Locally
$480.10
| Field | Value |
|---|---|
| Catalog Number | THHN12STGN2500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22968206 |

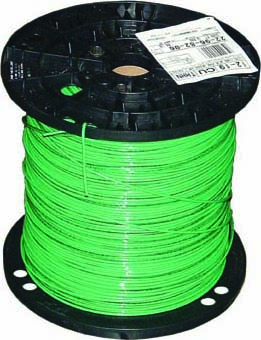

| Description | THHN 12 STR Green 2500′ |
| Product Type | THHN Building Wire |
| Short Description | THHN Building Wire, 12 AWG, Stranded, Annealed Copper, Yellow, 2500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Extra Long Description | SWC 22968206 THHN 12 Str Cu Gn 2500 |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886229428 / 00032886229428 |
| Slang Terms | — |
| Features | Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology for Easier Pulling; Sunlight Resistant |
| Number of Conductors | 1 |
| Conductor Size | #12 AWG |
| Current Rating | 20 A |
| Conductor Material | Annealed Copper |
| Number of Strands | 19 |
| Voltage Rating | 600 V |
| Insulation Material | PVC |
| Jacket Material | Nylon |
| Color | Green |
| Insulation Thickness | 15 mil |
| Outside Diameter | 128 mil |
| Maximum Operating Temperature | 90 °C |
| Overall Length | 2500 ft |
| Length | 2500 |
| Weight per unit | 0.024 lbs/ft |
| Weight per foot | 0.024 |
| Weight | 24 lb/mft |
| Minimum Order Quantity | 2,500 Feet |
| Unit Price | $0.19 (Per Foot) |
| Reel Price | $480.10 (Per 2,500 Feet) |
| Packaging Type | Spool |
| Carton | 2500 |
| Standards Met | CSA C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE 90°C; A-A-59544; NEMA WC-70; NEC NFPA 70; RoHS/REACH; ASTM B3, B8, B787; UL Listed; cULus; VW-1 Sizes; AWM |
| Made in USA | Yes |
| Applications | Commercial; Industrial |
