(Each)
$480.10
(Each)
(per 1)
In Stock Locally
$480.10
| Field | Details |
|---|---|
| Catalog Number | THHN12STGY2500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22972406 |

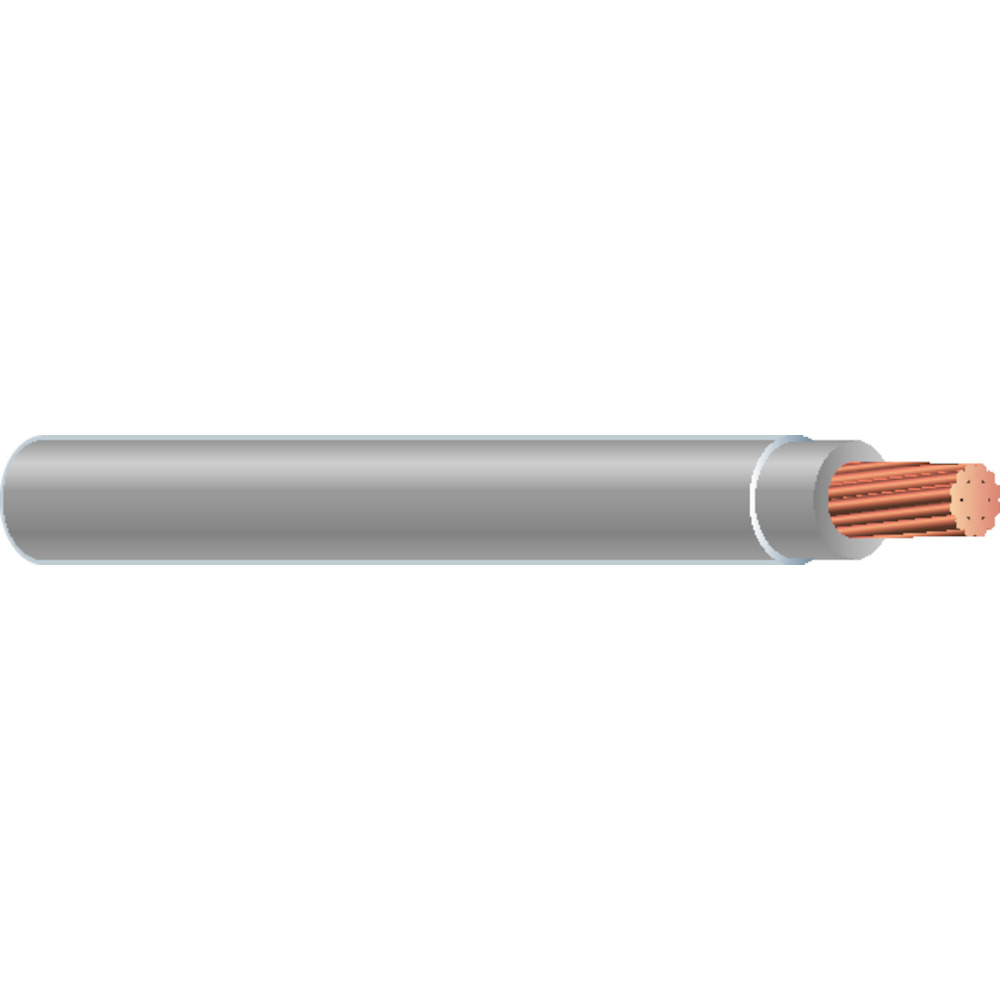

| Description | THHN 12 STR Gray 2500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also Rated MTW and AWM. |
| Slang Terms | (None provided) |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886229626 / 00032886229626 |
| Weight per unit | 0.024 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: 2,500 FeetUnit Price: $0.19 (Per Foot)Reel Price: $480.10 (Per 2,500 Feet) |
| Stock Availability | Nacogdoches: 15,000 Feet (Check another store)All Stores: 337,500 Feet |
| Features | Current Rating: 20 AConductor Size: #12 AWGVoltage Rating: 600 VNumber of Conductors: 1 |
| Material, Color, and Finish | Jacket Material: NylonConductor Material: Annealed CopperColor: GrayInsulation Material: PVC |
| Dimensions and Weight | Overall Length: 2500 ftLength: 2500 |
| Descriptions | Short Description: THHN Building Wire, 12 AWG, Stranded, Annealed Copper, Yellow, 2500Product Type: THHN Building Wire |
| Additional Features | Southwire® SIMpull THHN® copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding; 250 kcmil and larger use compressed copper stranding. Wire has tough heat and moisture resistant PVC insulation with nylon jacket using SIMpull® Technology. Available in multiple colors, some with striped configurations.Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology for Easier Pulling; Sunlight Resistant |
| Extra Description | SWC 22972406 THHN 12 Str Cu Gy 2500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Additional Information | media: YesNumber of Strands: 19Outside diameter: 128 milInsulation Thickness: 15 milMaximum Operating Temperature: 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; UL Listed; cULus Listed; VW-1 Sizes; AWM Sizes |
| Made in USA | yes |
| Manufacturer Information | Brand: CopperManufacturers Part Number: 22972406GTIN: 00032886229626UPC: 032886229626 |
| Taxonomies, Classifications, and Categories | Category Description: BUILDING WIREType: THHNAvailability Minimum Qty: 2500 |
| Packaging | Package Type: SpoolWeight: 24 lb/mftWeight per foot: 0.024Carton: 2500 |
| Uses, Certifications, and Standards | Application: Commercial; Industrial |
