(Each)
$480.10
(Each)
(per 1)
In Stock Locally
$480.10
| Field | Details |
|---|---|
| Catalog Number | THHN12STPK2500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 24250306 |

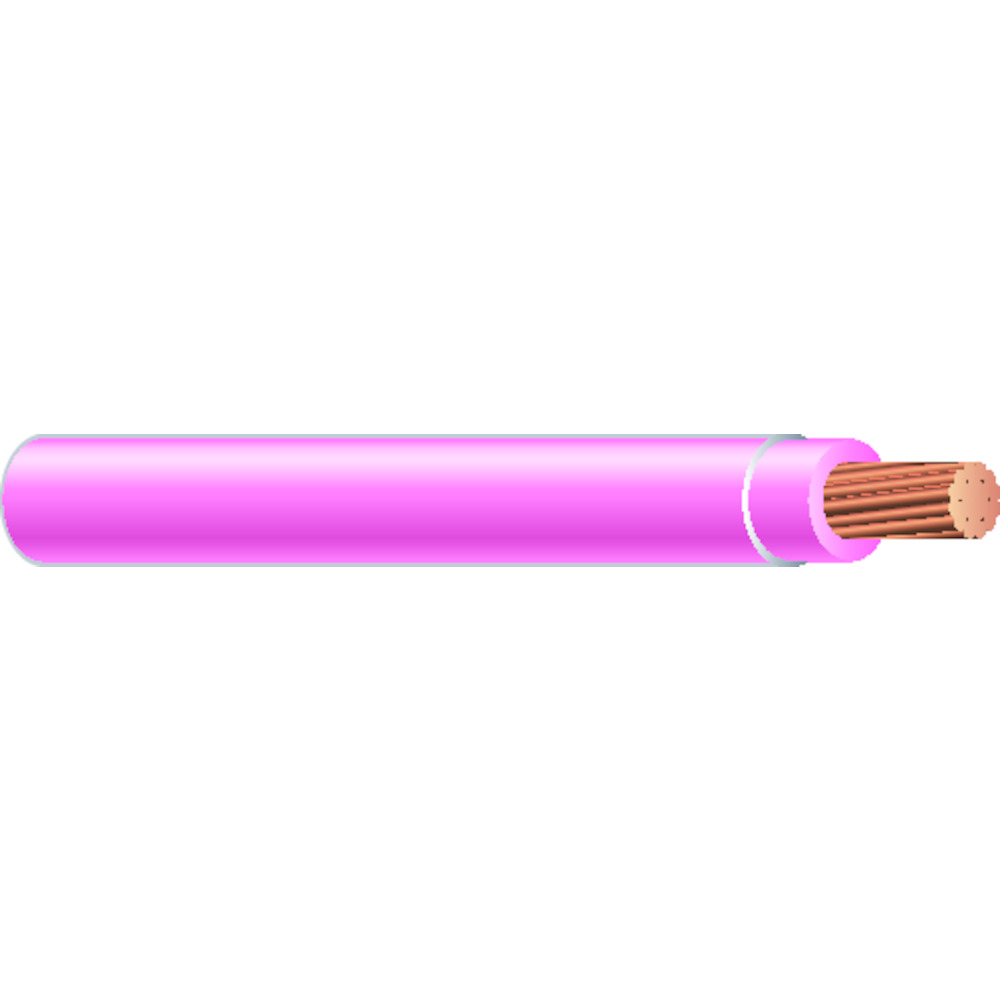

| Description | THHN 12 STR Pink 2500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath. Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also Rated MTW and AWM. |
| Slang Terms | – |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886229664 / 00032886229664 |
| Weight per Unit | 0.024 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: 2,500 Feet Unit Price: $0.19 (Per Foot) Reel Price: $480.10 (Per 2,500 Feet) |
| Stock Availability | Nacogdoches: 17,500 Feet All Stores: 182,500 Feet |
| Current Rating | 20 A |
| Conductor Size | #12 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Jacket Material | Nylon |
| Conductor Material | Annealed Copper |
| Color | Pink |
| Insulation Material | PVC |
| Overall Length | 2,500 ft |
| Length | 2,500 |
| Product Type | THHN Building Wire |
| Features | Southwire® SIMpull THHN® copper conductors made with soft drawn copper. Sizes 14–4/0 AWG use combination-unilay stranding. 250 kcmil+ use compressed stranding. Heat and moisture resistant PVC insulation and nylon jacket with SIMpull® Technology. Available in multiple colors, including striped options. |
| Short Description | THHN Building Wire, 12 AWG, Stranded, Annealed Copper, Yellow, 2500 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology for Easier Pulling; Sunlight Resistant |
| Extra Long Description | SWC 24250306 THHN 12 Str Cu Pk 2500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath. Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Number of Strands | 19 |
| Outside Diameter | 128 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE 90°C; Fed Spec A-A-59544; NEMA WC-70; NFPA 70; MTW; RoHS/REACH; ASTM B3, B8, B787; UL Listed; cULus Listed; VW-1; AWM Sizes |
| Made in USA | Yes |
| Media | Yes |
| Brand | Copper |
| GTIN | 00032886229664 |
| UPC | 032886229664 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Minimum Quantity | 2,500 |
| Packaging Type | Spool |
| Weight (lb/mft) | 24 |
| Weight per Foot | 0.024 |
| Carton | 2,500 |
| Application | Commercial; Industrial |
