(Each)
$510.18
(Each)
(per 1)
In Stock Locally
$510.18

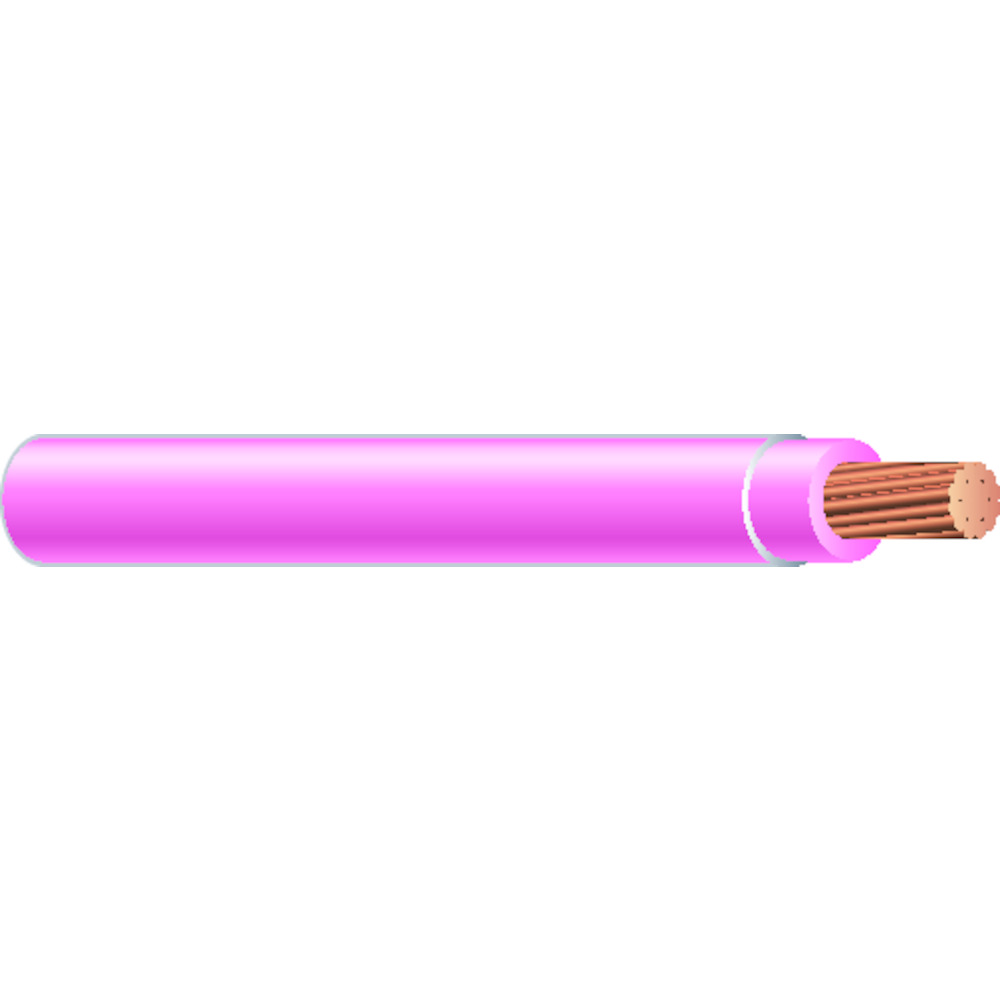

| Spec | Green #14 AWG (THHN14STGN500) | Pink #12 AWG (THHN12STPK2500) |
|---|---|---|
| Catalog Number | THHN14STGN500 | THHN12STPK2500 |
| Manufacturer Part # | 22959101 | 24250306 |
| Conductor Size | #14 AWG | #12 AWG |
| Current Rating | 15 A | 20 A |
| Voltage Rating | 600 V | 600 V |
| Length | 500 ft | 2500 ft |
| Color | Green | Pink |
| Material | Annealed Copper | Annealed Copper |
| Stranding | 19 Strands | 19 Strands |
| Insulation Material | PVC | PVC |
| Jacket Material | Nylon | Nylon |
| Insulation Thickness | 15 mil | 15 mil |
| Outer Diameter | 109 mil | 128 mil |
| Temperature Rating | 90°C | 90°C |
| Weight per Foot | 0.016 lbs/ft | 0.024 lbs/ft |
| Price per Foot | $0.15 | $0.20 |
| Package Price | $73.12 (500 ft) | $510.88 (2,500 ft) |
| Standards Met | UL, CSA, ASTM, RoHS, REACH, NFPA 70, NEMA WC-70 | UL, CSA, ASTM, RoHS, REACH, NFPA 70, NEMA WC-70 |
| Minimum Order Qty | 500 ft | 2500 ft |
| Location Stock | Nacogdoches: 4,000 ft | Nacogdoches: 17,500 ft |
| All Stores Stock | 396,500 ft | 222,500 ft |
| Use Cases | Commercial, Industrial | Commercial, Industrial |
| Made in USA | ✅ | ✅ |
| Special Features | SIMpull® Tech, Sunlight & Oil Resistant | SIMpull® Tech, Sunlight & Oil Resistant |
