(Each)
$480.10
(Each)
(per 1)
In Stock Locally
$480.10
| Field | Value |
|---|---|
| Catalog Number | THHN12STPR2500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 23212406 |

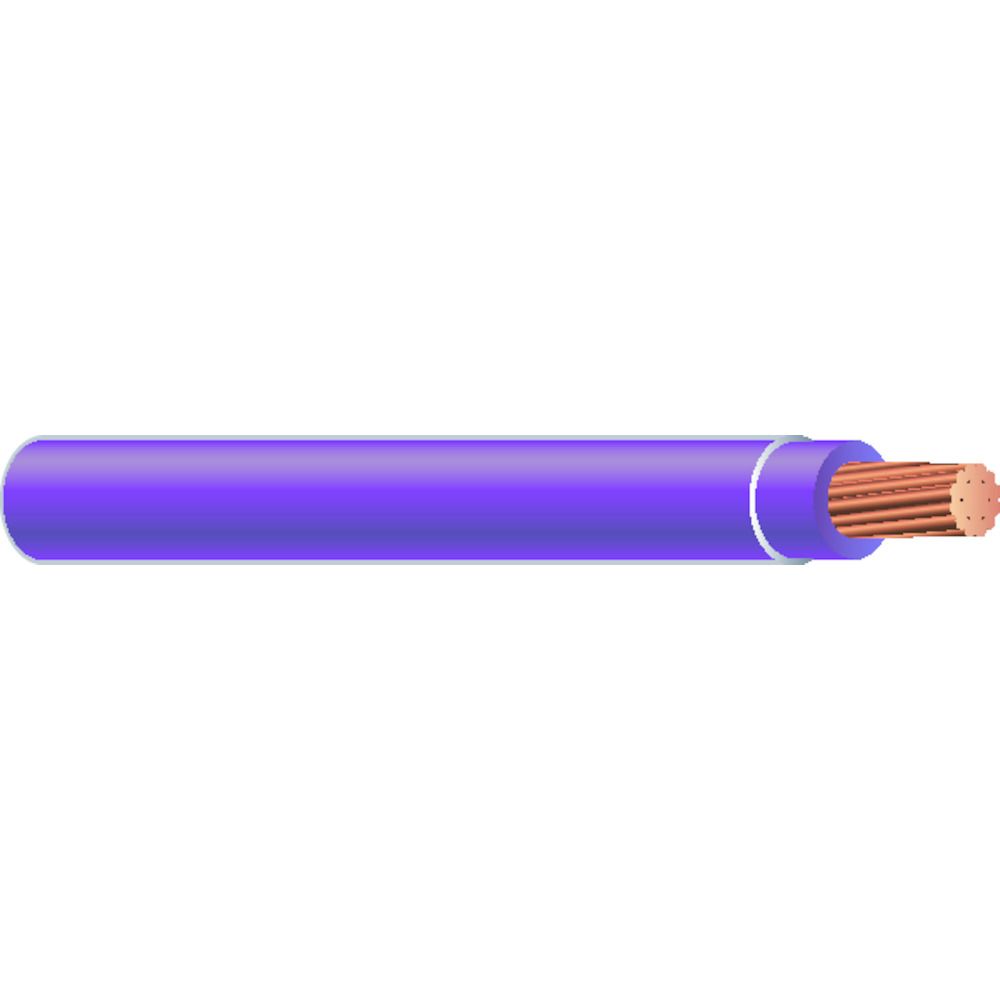

| Description | THHN 12 STR Purple 2500′ — 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath. Heat, Moisture, Gasoline, and Oil Resistant II. Rated THHN and THWN. Also Rated MTW and AWM. |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886229572 / 00032886229572 |
| Weight per Unit | 0.024 lbs/ft |
| Price & Packaging | Minimum Order Quantity: 2,500 FeetUnit Price: $0.19/ftReel Price: $480.10 (Per 2,500 Feet) |
| Current Rating | 20 A |
| Conductor Size | #12 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Conductor Material | Annealed Copper |
| Color | Purple |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Overall Length | 2,500 ft |
| Length | 2,500 ft |
| Product Type | THHN Building Wire |
| Additional Features | Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology for Easier Pulling; Sunlight Resistant |
| Technical Features | Southwire® SIMpull THHN® copper conductors are made with soft drawn copper. Sizes 14–4/0 AWG use combination-unilay stranding; 250 kcmil and up use compressed copper stranding. With tough PVC insulation and a nylon jacket. |
| Short Description | THHN Building Wire, 12 AWG, Stranded, Annealed Copper, Yellow, 2500 |
| Alternate Description | THHN 12 STR PURPLE 2500′ |
| Extra Long Description | SWC 23212406 THHN 12 Str Cu Pe 2500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Outside Diameter | 128 mil |
| Insulation Thickness | 15 mil |
| Max Operating Temperature | 90°C |
| Number of Strands | 19 |
| Standards Met | CSA Certified C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE 90°C; Federal A-A-59544; NEMA WC-70 (ICEA S-95-658); NEC (NFPA 70); MTW (stranded only); RoHS/REACH Compliant; ASTM B3, B8, B787; AWM; VW-1; UL Listed; cULus Listed |
| Made in USA | Yes |
| Media | Yes |
| Brand | Copper |
| GTIN | 00032886229572 |
| UPC | 032886229572 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Minimum Quantity | 2,500 |
| Package Type | Spool |
| Weight (lb/mft) | 24 |
| Weight per foot | 0.024 lbs/ft |
| Carton | 2,500 ft |
| Application | Commercial; Industrial |
