(Each)
$68.72
(Each)
(per 1)
(per 2000)
In Stock Locally
$68.72
| Field | Details |
|---|---|
| Catalog Number | THHN14ST0R500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22961701 |

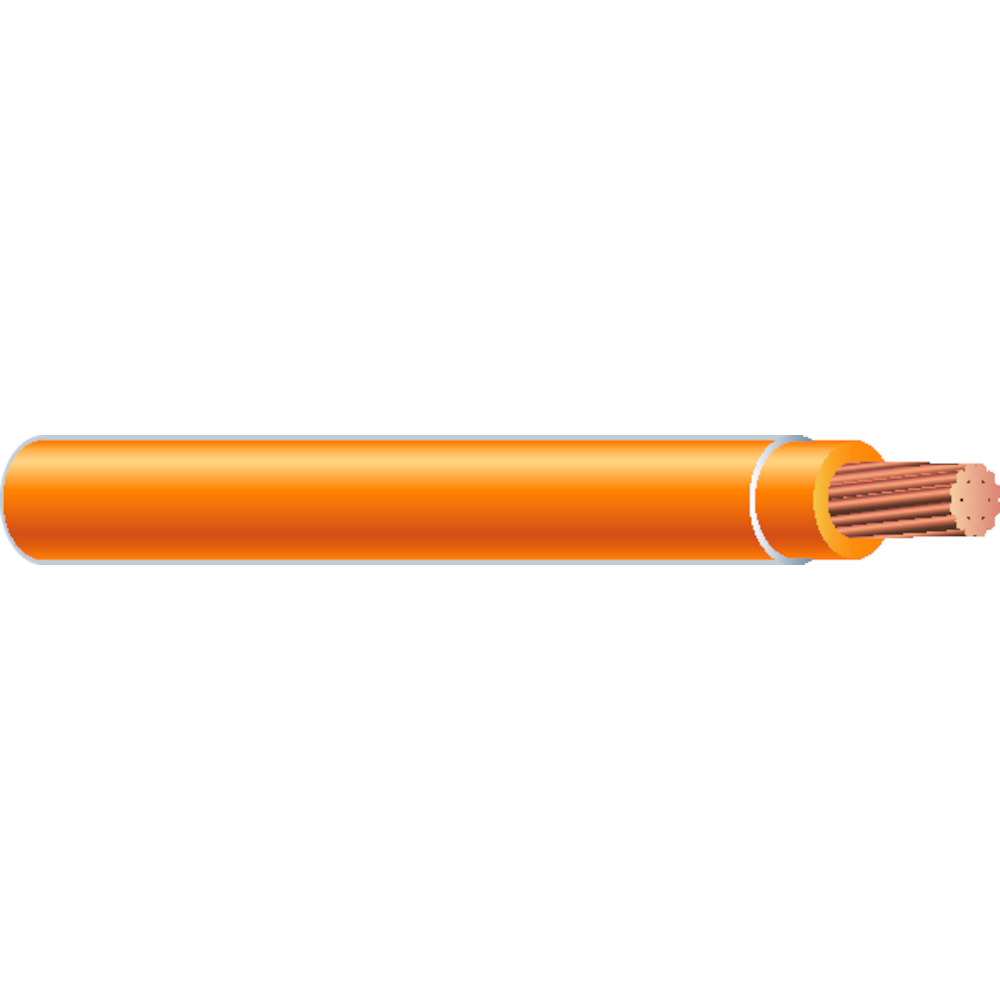

| Description | THHN 14 STR Orange 500′ |
| Additional Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also Rated MTW and AWM. |
| Slang Terms | — |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886228452 / 00032886228452 |
| Weight per unit | 0.016 lbs/ft |
| Price & Packaging | Minimum Order Quantity: 500 Feet |
| Unit Price: $0.14 (Per Foot) | |
| Reel Price: $68.72 (Per 500 Feet) | |
| Standard Packaging: $274.86 (Per 2,000 Feet) | |
| Stock Availability | Nacogdoches: 2,500 Feet (Check another store) |
| All Stores: 334,500 Feet | |
| Features | Current Rating: 15 A |
| Conductor Size: #14 AWG | |
| Voltage Rating: 600 V | |
| Number of Conductors: 1 | |
| Material, Color, and Finish | Jacket Material: Nylon |
| Conductor Material: Annealed Copper | |
| Color: Orange | |
| Insulation Material: PVC | |
| Dimensions and Weight | Overall Length: 500 ft |
| Length: 500 | |
| Product Type | THHN Building Wire |
| Additional Features | Southwire(R) SIMpull THHN(R) copper conductors made with soft drawn copper. Uses combination-unilay stranding (14 to 4/0 AWG). Tough heat/moisture resistant PVC insulation, nylon jacket with SIMpull(R) Technology. Available in many colors including orange. Some colors subject to economic conditions. |
| Short Description | THHN Building Wire, 14 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling; Sunlight Resistant |
| Extra Long Description | SWC 22961701 THHN 14 Str Cu Oe 500S |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Media | Yes |
| Outside Diameter | 109 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); NEC NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, B787; UL Listed; cULus Listed; VW-1 Sizes; AWM Sizes |
| Number of Strands | 19 |
| Made in USA | Yes |
| Brand | Copper |
| GTIN | 00032886228452 |
| UPC | 032886228452 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Availability (Minimum Qty) | 500 |
| Packaging | Package Type: Spool |
| Weight | 16 lb/mft |
| Weight per foot | 0.016 |
| Carton | 500 |
| Package | 2000 |
| Application | Commercial; Industrial |
