(Each)
$73.13
(Each)
(per 1)
(per 2000)
In Stock Locally
$73.13
| Field | Details |
|---|---|
| Catalog Number | THHN14STBR500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 22962501 |

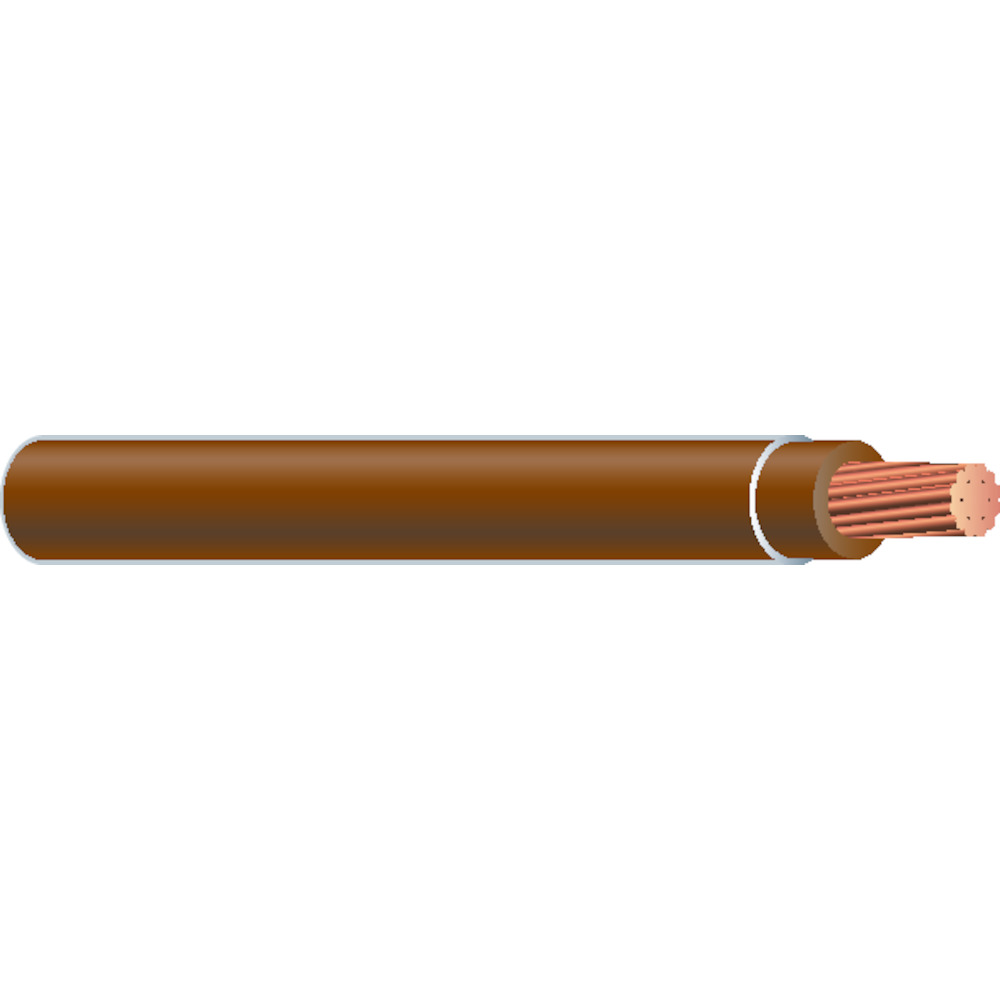

| Description | THHN 14 STR Brown 500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also Rated MTW and Awm. |
| Slang Terms | – |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886228506 / 00032886228506 |
| Weight per unit | 0.016 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: 500 FeetUnit Price: $0.15 (Per Foot)Reel Price: $73.12 (Per 500 Feet)Standard Packaging: $292.50 (Per 2,000 Feet) |
| Stock Availability | Nacogdoches: 500 Feet (Check another store)All Stores: 231,000 Feet |
| Features | Current Rating: 15 AConductor Size: #14 AWGVoltage Rating: 600 VNumber of Conductors: 1 |
| Material, Color, and Finish | Conductor Material: Annealed CopperColor: BrownJacket Material: NylonInsulation Material: PVC |
| Dimensions and Weight | Overall Length: 500 ftLength: 500 |
| Product Type | THHN Building Wire |
| Features (detailed) | Southwire® SIMpull THHN® copper conductors made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding; 250 kcmil+ use compressed copper stranding. Covered with heat/moisture resistant PVC insulation and nylon jacket with SIMpull® technology. Available in many colors and striped configurations. |
| Short Description | THHN Building Wire, 14 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull® Technology for Easier Pulling; Sunlight Resistant |
| Extra Description | SWC 22962501 THHN 14 Str Cu Bn 500S |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Number of Strands | 19 |
| Outside Diameter | 109 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); National Electrical Code NFPA 70; MTW – Stranded Only; RoHS/REACH Compliant; ASTM B3, B8, B787; UL Listed; cULus Listed; VW-1 Sizes; AWM Sizes |
| Made in USA | Yes |
| Media | Yes |
| Brand | Copper |
| GTIN | 00032886228506 |
| UPC | 032886228506 |
| Category Description | BUILDING WIRE |
| Type | THHN |
| Availability | Minimum qty: 500 |
| Packaging | Spool |
| Weight | 16 lb/mft |
| Weight per foot | 0.016 |
| Carton | 500 |
| Package | 2000 |
| Application | Commercial; Industrial |
