(Each)
$365.63
(Each)
(per 1)
In Stock Locally
$365.63
| Field | Details |
|---|---|
| Catalog Number | THHN14STPR2500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 23956606 |

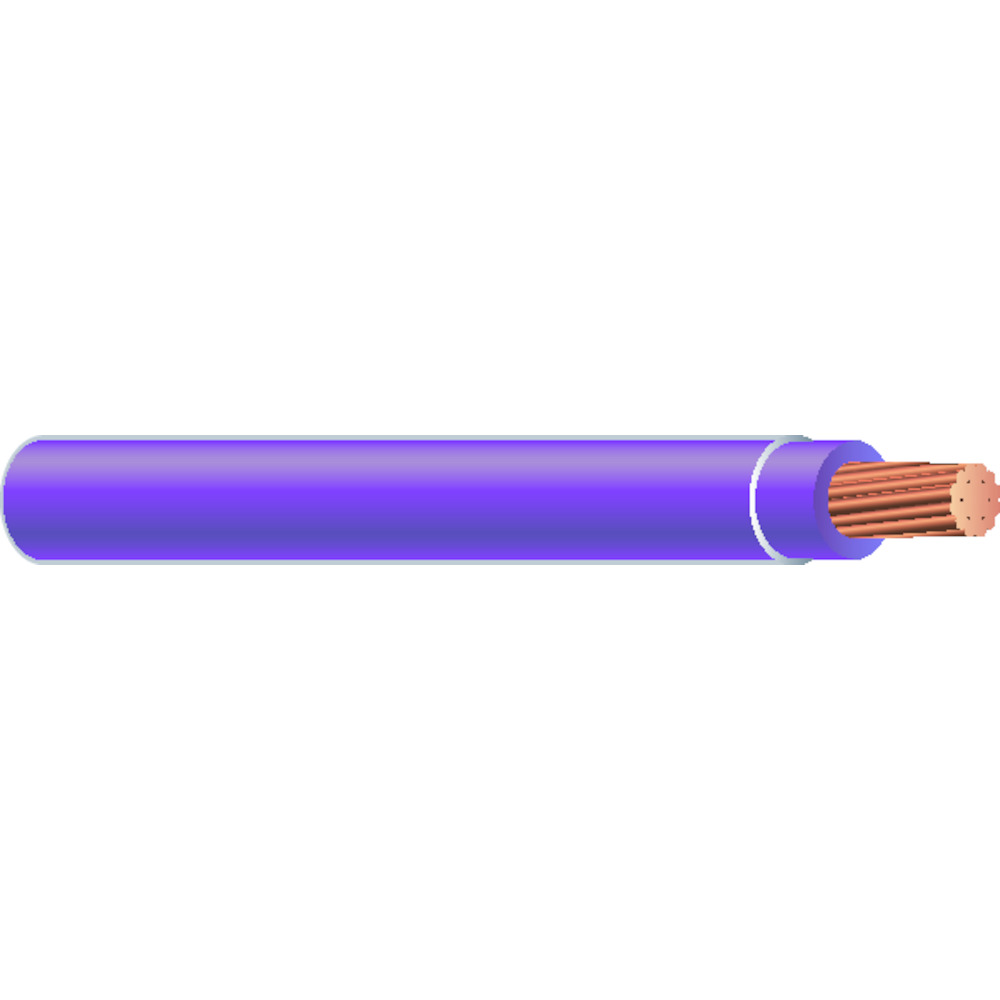

| Description | THHN 14 STR Purple 2500′ |
| Voltage Rating | 600 Volts |
| Conductor Size | #14 AWG (Stranded) |
| Current Rating | 15 Amps |
| Number of Conductors | 1 |
| Conductor Material | Annealed Copper |
| Color | Purple |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Length | 2,500 feet |
| Weight per foot | 0.016 lbs/ft |
| Weight per 1,000 ft | 16 lbs |
| Price (Unit) | $0.15 per foot |
| Price (Reel) | $365.62 per 2,500 feet |
| Minimum Order Quantity | 2,500 feet |
| Stock Availability | Nacogdoches: 0 feetAll Stores: 80,000 feet |
| Standards Met | CSA C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE 90°C; Federal Spec A-A-59544; NEMA WC-70; NEC NFPA 70; MTW (Stranded only); RoHS/REACH; ASTM B3, B8, B787; UL Listed; cULus Listed; VW-1; AWM |
| Features | – Heat, Moisture, Gasoline, Oil Resistant II- Rated THHN and THWN- Also Rated MTW and AWM- SIMpull Technology for Easier Pulling- Sunlight Resistant- No Lubricant Needed- 19 Strands, 109 mil OD, 15 mil Insulation Thickness- Max Operating Temp: 90°C |
| Product Type | THHN Building Wire |
| Application | Commercial, Industrial |
| Made in | USA |
