(Each)
$68.72
(Each)
(per 1)
(per 2000)
In Stock Locally
$68.72
| Field | Details |
|---|---|
| Catalog Number | THHN14STPR500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 23956601 |

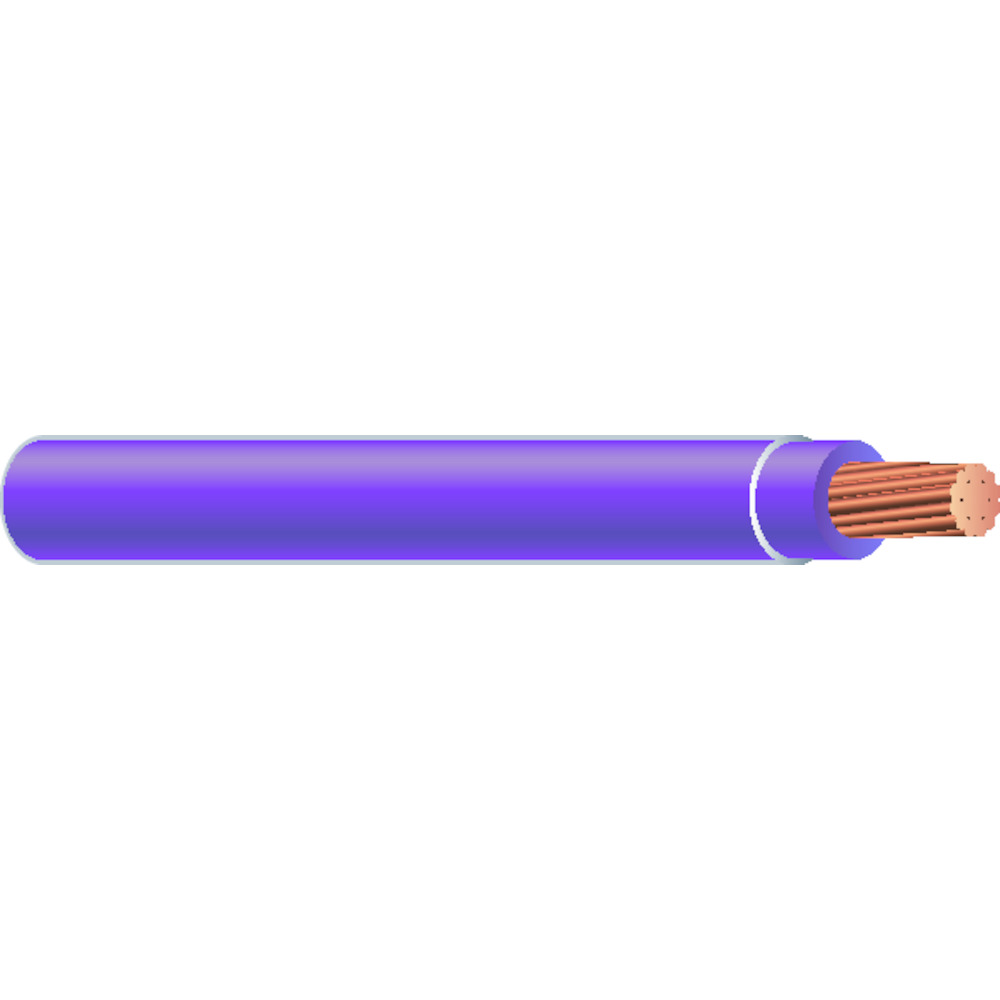

| Description | THHN 14 STR Purple 500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also Rated MTW and Awm. |
| Slang Terms | (none) |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886228551 / 00032886228551 |
| Weight per unit | 0.016 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: 500 Feet Unit Price: $0.14 (Per Foot) Reel Price: $68.72 (Per 500 Feet) Standard Packaging: $274.86 (Per 2,000 Feet) |
| Stock Availability | Nacogdoches: 1,000 Feet (Check another store) All Stores: 238,500 Feet |
| Features | Current Rating: 15 A Conductor Size: #14 AWG Voltage Rating: 600 V Number of Conductors: 1 |
| Material, Color, and Finish | Jacket Material: Nylon Conductor Material: Annealed Copper Color: Purple Insulation Material: PVC |
| Dimensions and Weight | Overall Length: 500 ft Length: 500 |
| Product Type | THHN Building Wire |
| Features Description | Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic o |
| Short Description | THHN Building Wire, 14 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling; Sunlight Resistant |
| Extra Long Description | SWC 23956601 THHN 14 Str Cu Pe 500S |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated MTW and AWM. |
| Number of Strands | 19 |
| Outside Diameter | 109 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658) Construction Requirements; National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; UL Listed; cULus Listed; VW-1 Sizes; AWM Sizes |
| Made in USA | yes |
| Media | Yes |
| Manufacturer Information | Brand: Copper Manufacturers Part Number: 23956601 GTIN: 00032886228551 UPC: 032886228551 |
| Taxonomies, Classifications, and Categories | Category Description: BUILDING WIRE Type: THHN |
| Availability | Minimum Quantity: 500 |
| Packaging | Package Type: Spool Weight: 16 lb/mft Weight per foot: 0.016 Carton: 500 Package: 2000 |
| Uses, Certifications, and Standards | Application: Commercial; Industrial |
