(Each)
$1,306.40
(Each)
(per 1)
In Stock Locally
$1,306.40
| Field | Value |
|---|---|
| Catalog Number | THHN1BK500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20504702 |

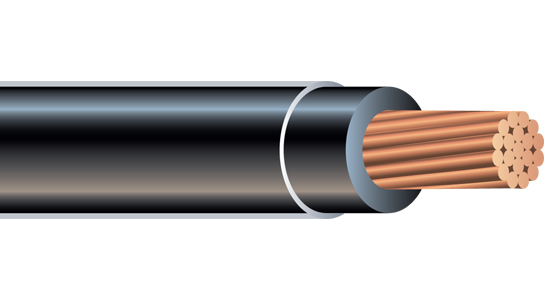

| Description | THHN 1 STR BLACK 500′ |
| Product Type | THHN Building Wire |
| Short Description | THHN Building Wire, 1 AWG, Stranded, Annealed Copper, Black, 500 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW. SIMpull Technology for Easier Pulling. |
| Extra Long Description | SWC 20504702 THHN 1 Str Cu SIM Bk 5 |
| Conductor Material | Annealed Copper |
| Conductor Size | #1 AWG |
| Number of Conductors | 1 |
| Number of Strands | 19 |
| Current Rating | 110 A (60°C); 130 A (75°C); 150 A (90°C) |
| Voltage Rating | 600 V |
| Insulation Material | PVC |
| Jacket Material | Nylon |
| Color | Black |
| Outside Diameter | 435 mil |
| Insulation Thickness | 50 mil |
| Maximum Operating Temp. | 90 °C |
| Overall Length | 500 ft |
| Length | 500 ft |
| Abrasion Resistant | Yes (via Jacket) |
| Moisture Resistant | Yes |
| Heat Resistant | Yes |
| Gasoline/Oil Resistant | Yes |
| Sunlight Resistant | Yes |
| SIMpull Technology | Yes |
| Special Features | No Lube Required |
| Application | Commercial; Industrial |
| Package Type | Reel |
| Minimum Order Quantity | 500 Feet |
| Unit Price | $2.61 (Per Foot) |
| Reel Price | $1,306.40 (Per 500 Feet) |
| Carton Quantity | 500 |
| Weight per Foot | 0.299 lbs/ft |
| Weight | 299 lb/mft |
| Stock – Nacogdoches | 1,000 Feet |
| Stock – All Stores | 18,832 Feet |
| UPC | 032886233500 |
| GTIN | 00032886233500 |
| UNSPSC | 26121517 – Copper wire |
| Category | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| Type | THHN-2 |
| Standards Met | CSA C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE 90°C; A-A-59544; NEMA WC-70; NEC NFPA 70; MTW; RoHS/REACH; ASTM B3, B8, B787; VW-1; UL & cULus Listed |
| Made in USA | Yes |
