Description
$855.74
Description
Field | Details |
---|---|
Catalog Number | THHN3BK500 |
Vendor Code | COP |
Manufacturer | Copper |
Manufacturer’s Part Number | 24346901 |
Description | THHN 3 STR Black 500′ |
Voltage Rating | 600 Volts |
Conductor Material | Copper |
Insulation Material | PVC |
Jacket Material | Nylon |
Color | Black |
Number of Conductors | 1 |
Conductor Size | #3 AWG |
Current Rating | 85 A (60°C); 100 A (75°C); 110 A (90°C) |
Overall Length | 500 ft |
Length | 500 |
Weight per foot | 0.19 lbs/ft |
Weight | 189 lb/1000 ft |
Minimum Order Quantity | 500 Feet |
Unit Price | $1.71 (Per Foot) |
Reel Price | $855.74 (Per 500 Feet) |
Stock Availability (Nacogdoches) | 2,500 Feet |
Stock Availability (All Stores) | 41,348 Feet |
Number of Strands | 19 |
Outside Diameter | 346 mil |
Insulation Thickness | 40 mil |
Maximum Operating Temperature | 90 °C |
Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70; NEC NFPA 70; MTW – Stranded Only; RoHS/REACH; ASTM B3, B8, B787; VW-1; UL Listed; cULus Listed |
Made in USA | Yes |
Slang Terms | |
Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
Classification | Building Wire |
UNSPSC | 26121517 – Copper wire |
UPC/GTIN | 032886232503 / 00032886232503 |
Product Type | THHN Building Wire |

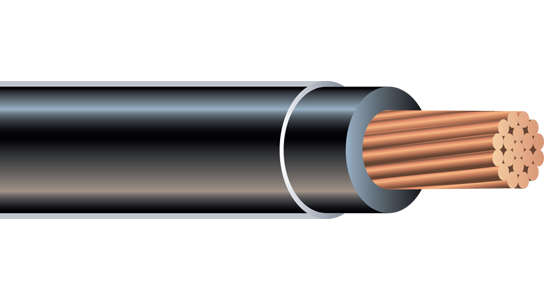

Short Description | THHN Building Wire, 3 AWG, Stranded, Copper, Black, 500 |
Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW. SIMpull Technology for Easier Pulling. |
Features | Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding; 250 kcmil and larger use compressed copper stranding. Tough heat/moisture resistant PVC insulation with nylon jacket using SIMpull Technology. Available in multiple colors including black. |
Special Features | No Lube |
Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull Technology for Easier Pulling |
Packaging | Spool |
Carton | 500 |
Media | Yes |
Tip Size | 500 ft. Spool |
Application | Commercial; Industrial |
Brand | Copper |
Type | THHN-2 |
