(Each)
$0.84
(Each)
(per 1)
In Stock Locally
$0.84
| Field | Details |
|---|---|
| Catalog Number | THHN6BL500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20496601 |

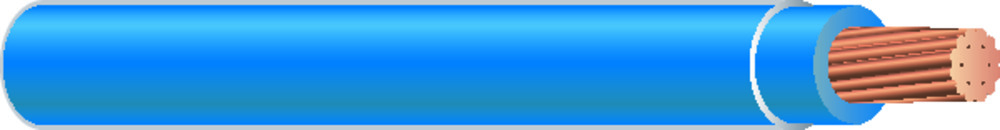

| Description | THHN 6 STR Blue 500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also Rated MTW and AWM. Simpull Technology For Easier Pulling. |
| Slang Terms | |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886231827 / 00032886231827 |
| Weight per unit | 0.095 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: FootUnit Price: $0.84 (Per Foot)Reel Price: $419.40 (Per 500 Feet) |
| Stock Availability | Nacogdoches: 23,500 Feet (Check another store)All Stores: 125,120 Feet |
| Features | Current Rating: 55 A (60°C); 65 A (75°C); 75 A (90°C)Conductor Size: #6 AWGVoltage Rating: 600 VNumber of Conductors: 1 |
| Material, Color, and Finish | Conductor Material: Annealed CopperJacket Material: NylonColor: BlueInsulation Material: PVC |
| Dimensions and Weight | Overall Length: 500 ftLength: 500 |
| Descriptions | Product Type: THHN Building WireShort Description: THHN Building Wire, 6 AWG, Stranded, Annealed Copper, Yellow, 500′ |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling |
| Features Details | Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in multiple colors and striped configurations. Some colors are subject to economic changes. |
| Description (short) | THHN 6 STR BLUE 500′ |
| Extra Long Description | SWC 20496601 THHN 6 Str Cu SIM Be 5 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW and AWM. SIMpull Technology for Easier Pulling. |
| Special Features | No Lube |
| Additional Details | Number of Strands: 19Outside Diameter: 249 milInsulation Thickness: 30 milMaximum Operating Temperature: 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; AWM; UL Listed; cULus Listed |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | Brand: CopperManufacturers Part Number: 20496601 |
| GTIN | 00032886231827 |
| UPC | 032886231827 |
| Taxonomies, Classifications, Categories | Category Description: BUILDING WIREType: THHN-2 |
| Packaging | Package Type: SpoolWeight: 95 lb/mftWeight per foot: 0.095Carton: 500 |
| Uses, Certifications, Standards | Application: Commercial; Industrial |
