(Each)
$838.80
(Each)
(per 1)
In Stock Locally
$838.80
| Field | Details |
|---|---|
| Catalog Number | THHN6GN1000 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20497405 |

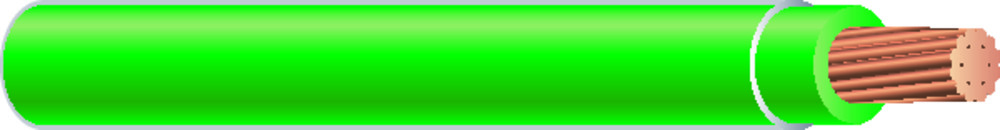

| Description | THHN 6 STR Green 1000′ |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also Rated MTW and AWM. Simpull Technology For Easier Pulling. |
| Slang Terms | — |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886231940 / 00032886231940 |
| Weight per unit | 0.095 (lbs/ft) |
| Price & Packaging | |
| Minimum Order Quantity | 1,000 Feet |
| Unit Price | $0.84 (Per Foot) |
| Reel Price | $838.80 (Per 1,000 Feet) |
| Stock Availability | |
| Nacogdoches | 2,000 Feet (Check another store) |
| All Stores | 142,432 Feet |
| Features | |
| Current Rating | 55 A (60°C); 65 A (75°C); 75 A (90°C) |
| Conductor Size | #6 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Material, Color, and Finish | |
| Conductor Material | Annealed Copper |
| Color | Green |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Dimensions and Weight | |
| Overall Length | 1000 ft |
| Length | 1000 |
| Weight | 95 lb/mft |
| Weight per foot | 0.095 |
| Descriptions | |
| Product Type | THHN Building Wire |
| Short Description | THHN Building Wire, 6 AWG, Stranded, Annealed Copper, Yellow, 1000 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling |
| Description | THHN 6 STR GREEN 1000′ |
| Extra Long Description | SWC 20497405 THHN 6 Str Cu SIM Gn 1 |
| Special Features | No Lube |
| Additional Information | |
| Outside Diameter | 249 mil |
| Number of Strands | 19 |
| Insulation Thickness | 30 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658) Construction Requirements; National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; AWM; UL Listed; cULus Listed |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | |
| Brand | Copper |
| GTIN | 00032886231940 |
| UPC | 032886231940 |
| Taxonomies, Classifications, and Categories | |
| Category Description | BUILDING WIRE |
| Type | THHN-2 |
| Availability | Minimum qty 1000 |
| Packaging | |

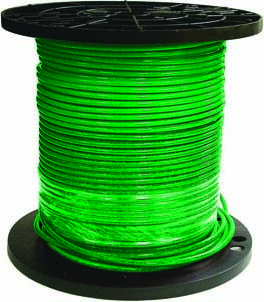

| Package Type | Spool |
| Carton | 1000 |
| Uses, Certifications, and Standards | |
| Application | Commercial; Industrial |
