(Each)
$0.84
(Each)
(per 1)
In Stock Locally
$0.84
| Field | Value |
|---|---|
| Catalog Number | THHN6WH500 Vendor Code COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20494101 |

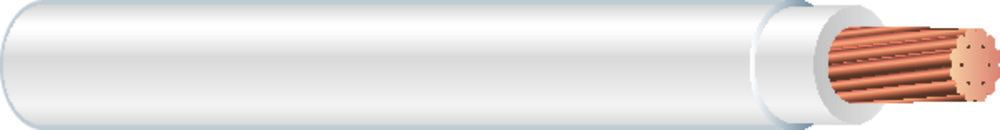

| Description | THHN 6 STR White 500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant Ii. Rated THHN and THWN-2. Also Rated MTW and Awm. Simpull Technology For Easier Pulling. |
| Slang Terms | (none provided) |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886231629 / 00032886231629 |
| Weight per unit | 0.095 (lbs/ft) |
| Price & Packaging | Minimum Order Quantity: FootUnit: $0.84 (Per Foot)Reel: $419.40 (Per 500 Feet) |
| Features | Current Rating: 55 A (60°C); 65 A (75°C); 75 A (90°C)Conductor Size: #6 AWGVoltage Rating: 600 VNumber of Conductors: 1 |
| Material, Color, and Finish | Jacket Material: NylonConductor Material: Annealed CopperColor: WhiteInsulation Material: PVC |
| Dimensions and Weight | Overall Length: 500 ftLength: 500 |
| Descriptions | Product Type: THHN Building Wire |
| Features (Description) | Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding while 250 kcmil and larger sizes use compressed copper stranding. Wire covered with tough heat/moisture resistant PVC insulation with nylon jacket utilizing SIMpull(R) Technology. Available in multiple colors and striped configurations. |
| Short Description | THHN Building Wire, 6 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling |
| Description (short) | THHN 6 STR WHITE 500′ |
| Extra Long Description | SWC 20494101 THHN 6 Str Cu SIM We 5 |
| Special Features | No Lube |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW and AWM. SIMpull Technology for Easier Pulling. |
| Additional Info | Number of Strands: 19Outside Diameter: 249 milInsulation Thickness: 30 milMaximum Operating Temperature: 90 °CMade in USA: yes |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658) Construction Requirements; National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; AWM; UL Listed; cULus Listed |
| Media | Yes |
| Manufacturer Information | Brand: CopperManufacturers Part Number: 20494101GTIN: 00032886231629UPC: 032886231629 |
| Taxonomies, Classifications, and Categories | Category Description: BUILDING WIREType: THHN-2 |

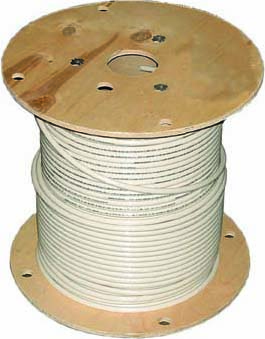

| Packaging | Package Type: SpoolWeight: 95 lb/mftWeight per foot: 0.095Carton: 500 |
| Uses, Certifications, and Standards | Application: Commercial; Industrial |
