THHN8BK500 – THHN 8 STR Black 500′
$
(per )
(Each)
$0.55
(Each)
$
(per 1)
Availability:
In Stock Locally
| Category | Detail |
|---|---|
| Catalog Number | THHN8BK500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer Part Number | 20488312 |

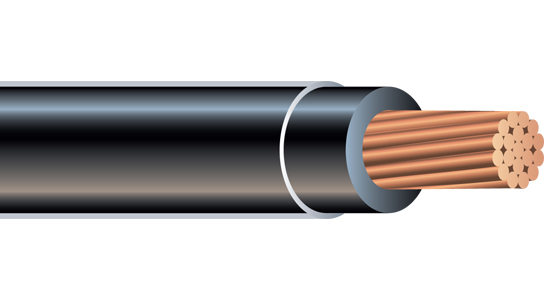

| Description | THHN 8 STR Black 500′ |
| Detailed Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath. Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN, THWN-2, MTW, AWM. SIMpull Technology for Easier Pulling. |
| Slang Terms | – |
| Category | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886231001 / 00032886231001 |
| Weight per unit | 0.063 lbs/ft |
| Minimum Order Quantity | Foot |
| Unit Price | $0.55 (Per Foot) |
| Reel Price | $272.60 (Per 500 Feet) |
| Current Rating | 40 A (60°C); 50 A (75°C); 55 A (90°C) |
| Conductor Size | #8 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Jacket Material | Nylon |
| Conductor Material | Annealed Copper |
| Color | Black |
| Insulation Material | PVC |
| Overall Length | 500 ft |
| Length | 500 ft |
| Product Type | THHN Building Wire |
| Short Description | THHN Building Wire, 8 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Additional Features | Heat, Moisture, Gasoline and Oil Resistant; SIMpull Technology for Easier Pulling |
| Extra Long Description | SWC 20488312 THHN 8 Str Cu SIM Bk 5 |
| Special Features | No Lube |
| Number of Strands | 19 |
| Outside Diameter | 213 mil |
| Insulation Thickness | 30 mil |
| Max Operating Temperature | 90 °C |
| Standards Met | CSA C22.2 No. 75; UL 83, 758, 1063, 1581; NOM-ANCE 90°C; Fed Spec A-A-59544; NEMA WC-70; NEC NFPA 70; RoHS/REACH; ASTM B3, B8, B787; AWM; VW-1; UL/cULus Listed |
| Made in USA | Yes |
| Media Available | Yes |
| Brand | Copper |
| GTIN | 00032886231001 |
| UPC | 032886231001 |
| Category Description | BUILDING WIRE |
| Type | THHN-2 |
| Package Type | Spool |
| Weight (per 1000 ft) | 63 lb/mft |
| Weight per foot | 0.063 |
| Carton Quantity | 500 |
| Applications | Commercial; Industrial |
