| Section | Field | Value |
|---|---|---|
| Quick Specs | Catalog Number | THHN8BR1000 Vendor Code COP |
| Manufacturer | Copper | |
| Manufacturer’s Part Number | 23847706 | |

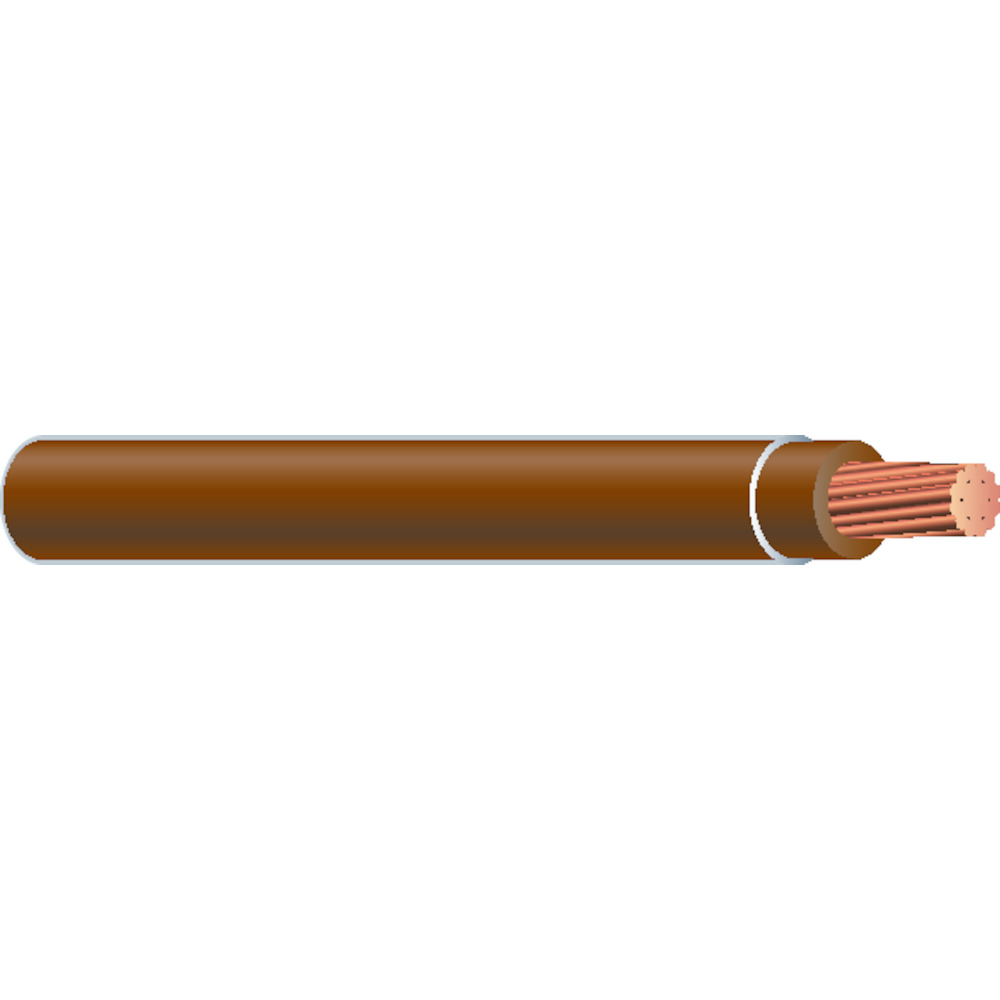

| Description | THHN 8 STR Brown 1000′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also Rated MTW and AWM. SIMpull Technology For Easier Pulling. | |
| Slang Terms | — | |
| Category Info | Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire | |
| UNSPSC | 26121517 – Copper wire | |
| UPC/GTIN | 032886231162 / 00032886231162 | |
| Weight per unit | 0.063 (lbs/ft) | |
| Price & Packaging | Minimum Order Quantity | 1,000 Feet |
| Unit Price | $0.58 (Per Foot) | |
| Reel Price | $580.16 (Per 1,000 Feet) | |
| Stock Availability | Nacogdoches | 0 Feet (Find nearest stock) |
| All Stores | 58,000 Feet | |
| Features | Current Rating | 40 A (60°C); 50 A (75°C); 55 A (90°C) |
| Conductor Size | #8 AWG | |
| Voltage Rating | 600 V | |
| Number of Conductors | 1 | |
| Material, Color, and Finish | Jacket Material | Nylon |
| Conductor Material | Annealed Copper | |
| Color | Brown | |
| Insulation Material | PVC | |
| Dimensions and Weight | Overall Length | 1000 ft |
| Length | 1000 | |
| Outside Diameter | 213 mil | |
| Insulation Thickness | 30 mil | |
| Weight | 63 lb/mft | |
| Weight per foot | 0.063 | |
| Descriptions | Short Description | THHN Building Wire, 8 AWG, Stranded, Annealed Copper, Yellow, 1000 |
| Product Type | THHN Building Wire | |
| Extra Long Description | SWC 23847706 THHN 8 Str Cu SIM Bn 1 | |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW and AWM. SIMpull Technology for Easier Pulling. | |
| Special Features | No Lube | |
| Number of Strands | 19 | |
| Standards & Compliance | Maximum Operating Temperature | 90 °C |
| Standards Met | CSA C22.2 No. 75, UL 83/758/1063/1581, NOM-ANCE, A-A-59544, NEMA WC-70, NEC, MTW, RoHS/REACH, ASTM B3/B8/B787, AWM, VW-1, UL/cULus Listed | |
| Made in USA | Yes | |
| Media | Yes | |
| Manufacturer Information | Brand | Copper |
| Manufacturer’s Part Number | 23847706 | |
| GTIN | 00032886231162 | |
| UPC | 032886231162 | |
| Taxonomies & Classifications | Category Description | BUILDING WIRE |
| Type | THHN-2 | |
| Availability | Minimum Qty | 1000 |
| Packaging | Package Type | Spool |
| Carton | 1000 | |
| Applications | Application | Commercial; Industrial |
