| Field | Details |
|---|---|
| Catalog Number | THHN8GN1000 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20492506 |

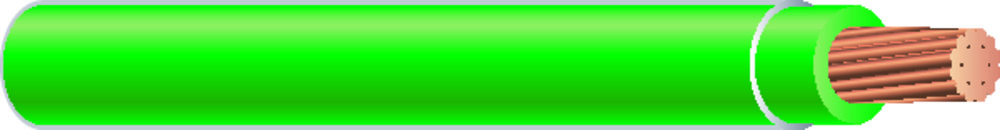

| Description | THHN 8 STR Green 1000′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also Rated MTW and AWM. SIMpull Technology For Easier Pulling. |
| Slang Terms | |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886231414 / 00032886231414 |
| Weight per unit | 0.063 (lbs/ft) |
| Price & Packaging | |
| – Minimum Order Quantity | 1,000 Feet |
| – Unit Price | $0.55 (Per Foot) |
| – Reel Price | $545.21 (Per 1,000 Feet) |
| Stock Availability | |
| – Nacogdoches | 0 Feet (Find nearest stock) |
| – All Stores | 140,037 Feet |
| Features | |
| – Current Rating | 40 A (60°C); 50 A (75°C); 55 A (90°C) |
| – Conductor Size | #8 AWG |
| – Voltage Rating | 600 V |
| – Number of Conductors | 1 |
| Material, Color, and Finish | |
| – Jacket Material | Nylon |
| – Conductor Material | Annealed Copper |
| – Color | Green |
| – Insulation Material | PVC |
| Dimensions and Weight | |
| – Overall Length | 1000 ft |
| – Length | 1000 |
| Descriptions | |
| – Product Type | THHN Building Wire |
| – Features | Southwire(R) SIMpull THHN(R) copper conductors made with soft drawn copper. Sizes 14 through 4/0 AWG use combination-unilay stranding; 250 kcmil and larger sizes use compressed copper stranding. Wire has tough heat/moisture resistant PVC insulation with nylon jacket utilizing SIMpull(R) Technology. Available in multiple colors and stripes. Some colors subject to economic availability. |
| – Short Description | THHN Building Wire, 8 AWG, Stranded, Annealed Copper, Yellow, 1000 |
| – Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling |
| – Description | THHN 8 STR GREEN 1000′ |
| – Extra Long Description | SWC 20492506 THHN 8 Str Cu SIM Gn 1 |
| – Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW and AWM. SIMpull Technology for Easier Pulling. |
| – Special Features | No Lube |
| – Number of Strands | 19 |
| – Outside Diameter | 213 mil |
| – Insulation Thickness | 30 mil |
| – Maximum Operating Temperature | 90 °C |
| – Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658) Construction Requirements; National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; AWM; VW-1; UL Listed; cULus Listed |
| – Made in USA | Yes |
| – Media | Yes |
| Manufacturer Information | |
| – Brand | Copper |
| – Manufacturers Part Number | 20492506 |
| – GTIN | 00032886231414 |
| – UPC | 032886231414 |
| Taxonomies, Classifications, and Categories | |
| – Category Description | BUILDING WIRE |
| – Type | THHN-2 |
| Availability | |
| – Minimum Quantity | 1000 |
| – Packaging | Spool |
| – Weight | 63 lb/mft |
| – Weight per Foot | 0.063 |
| – Carton | 1000 |
| Uses, Certifications, and Standards | |
| – Application | Commercial; Industrial |
