(Each)
$0.55
(Each)
(per 1)
In Stock Locally
$0.55
| Attribute | Details |
|---|---|
| Catalog Number | THHN8RD500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20490912 |

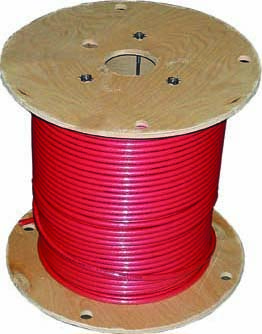

| Description | THHN 8 STR Red 500′ 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also Rated MTW and AWM. Simpull Technology For Easier Pulling. |
| Slang Terms | – |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886231209 / 00032886231209 |
| Weight per unit | 0.063 (lbs/ft) |
| Price & Packaging | – |
| Minimum Order Quantity | Foot |
| Unit | $0.55 (Per Foot) |
| Reel | $272.60 (Per 500 Feet) |
| Current Rating | 40 A (60°C); 50 A (75°C); 55 A (90°C) |
| Conductor Size | #8 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Jacket Material | Nylon |
| Conductor Material | Annealed Copper |
| Color | Red |
| Insulation Material | PVC |
| Overall Length | 500 ft |
| Length | 500 |
| Product Type | THHN Building Wire |
| Features | Southwire(R) SIMpull THHN(R) copper conductors with a combination-unilay stranding for 14-4/0 AWG, and compressed copper stranding for 250 kcmil and larger sizes. Heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in various colors and striped configurations. |
| Short Description | THHN Building Wire, 8 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Additional Information | Heat, Moisture, Gasoline and Oil Resistant; SIMpull(R) Technology for Easier Pulling |
| Extra Long Description | SWC 20490912 THHN 8 Str Cu SIM Rd 5 |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW and AWM. SIMpull Technology for Easier Pulling. |
| Special Features | No Lube |
| Number of Strands | 19 |
| Outside Diameter | 213 mil |
| Insulation Thickness | 30 mil |
| Maximum Operating Temperature | 90 °C |
| Made in USA | Yes |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658) Construction Requirements; National Electrical Code, NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM – B3, B8, and B787; AWM; VW-1; UL Listed; cULus Listed |
| Media | Yes |
| Brand | Copper |
| GTIN | 00032886231209 |
| UPC | 032886231209 |
| Category Description | BUILDING WIRE |
| Type | THHN-2 |
| Packaging | Package Type: Spool |
| Weight | 63 lb/mft |
| Weight per foot | 0.063 |
| Carton | 500 |
| Application | Commercial; Industrial |
