(Each)
$0.55
(Each)
(per 1)
In Stock Locally
$0.55
| Field | Details |
|---|---|
| Catalog Number | THHN8WH500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer’s Part Number | 20489112 |

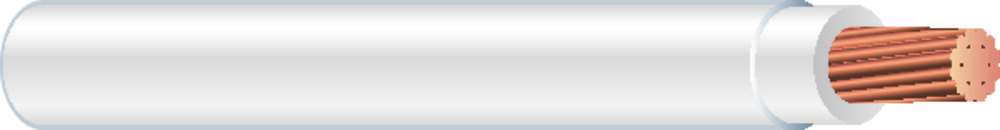

| Description | THHN 8 STR White 500′ |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW and AWM. SIMpull Technology for Easier Pulling. |
| Short Description | THHN Building Wire, 8 AWG, Stranded, Annealed Copper, Yellow, 500 |
| Product Type | THHN Building Wire |
| Categories | Copper Building Wire – THHN-T90-STR (Stranded) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886231100 / 00032886231100 |
| Weight per unit | 0.063 lbs/ft |
| Weight per 1000 ft (MFT) | 63 lb/mft |
| Minimum Order Quantity | Foot |
| Unit Price | $0.55 (Per Foot) |
| Reel Price | $272.60 (Per 500 Feet) |
| Current Rating | 40 A (60°C); 50 A (75°C); 55 A (90°C) |
| Conductor Size | #8 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Conductor Material | Annealed Copper |
| Color | White |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Overall Length | 500 ft |
| Outside Diameter | 213 mil |
| Insulation Thickness | 30 mil |
| Maximum Operating Temperature | 90 °C |
| Standards Met | CSA Certified C22.2 No. 75; UL Standards 83, 758, 1063, and 1581; NOM-ANCE 90°C; Federal Specification A-A-59544; NEMA WC-70 (ICEA S-95-658); NEC NFPA 70; MTW – Stranded Constructions Only; RoHS/REACH Compliant; ASTM B3, B8, B787; AWM; VW-1; UL Listed; cULus Listed |
| Made in USA | Yes |
| Number of Strands | 19 |
| Special Features | No Lube |
| Brand | Copper |
| Availability | Minimum qty: 500 |
| Packaging | Spool |
| Carton Quantity | 500 |
| Applications | Commercial; Industrial |
