(Each)
$88.86
(Each)
(per 1)
In Stock Locally
$88.86
| Specification | Details |
|---|---|
| Catalog Number | TJN200 |
| Manufacturer | Eaton |
| Brand | Edison |
| Manufacturer’s Part Number | TJN200 |

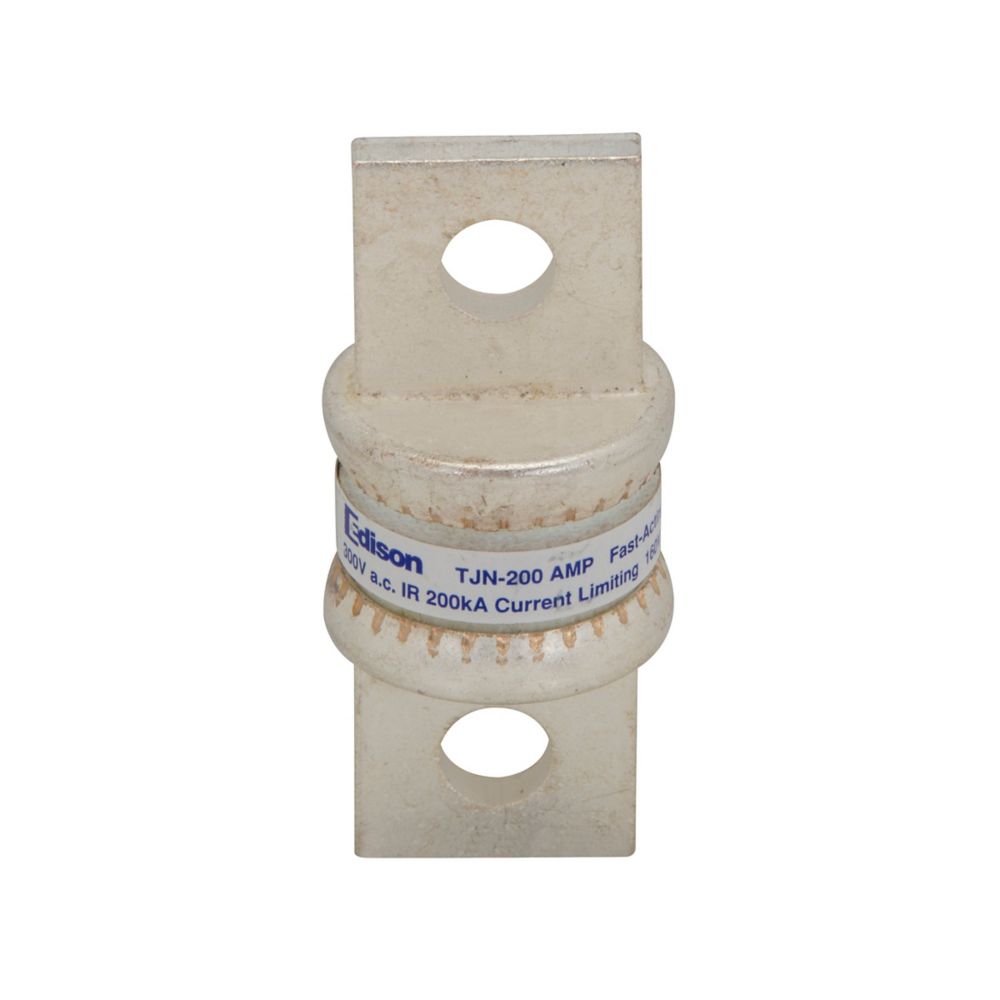

| Description | 200A 300V Class T Fast Acting NEMA 1 Fuse |
| Product Type | Class T Fuse |
| Fuse Type | Very Fast Acting |
| Element Type | Fast Acting |
| Fuse Speed | High |
| Amperage Rating | 200 A |
| Current Rating Range | 1 to 1200 A |
| Voltage Rating | 300 V AC; 160 V DC |
| Interrupt Rating | 200 kA |
| Fuse Class | Class T |
| Connection Type | Screw Terminal |
| Special Features | Finger Safe |
| Standards Met | UL 248-15, Guide JDDZ, File E4273; CSA C22.2 No. 248.12; CE; RoHS |
| Application | Lighting & resistance heating circuits; protects circuit breakers |
| Overall Length | 2.75 in |
| Dimensions (L x W x H) | 2.44 x 1.06 x 1.06 in |
| Weight per Unit | 0.14 lb (0.06 kg) |
| Unit Price | $88.86 (Each) |
| Minimum Order Quantity | 1 |
| Carton Quantity | 1 |
| Stock Availability – Nacogdoches | 0 |
| Stock Availability – All Stores | 267 |
| UPC / GTIN | 782634642008 / 00782634642008 |
| Short Description | Class T Fuse, 1 to 1200 A, 300 VAC / 160 VDC |
| Extra Long Description | EFSE TJN200 CLASS T FAST ACTING 300 |
