(Each)
$167.47
(Each)
(per 1)
(per 5)
In Stock Locally
$167.47
| Field | Details |
|---|---|
| Catalog Number | TMCX165 |
| Vendor Code | CRS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | TMCX165 |

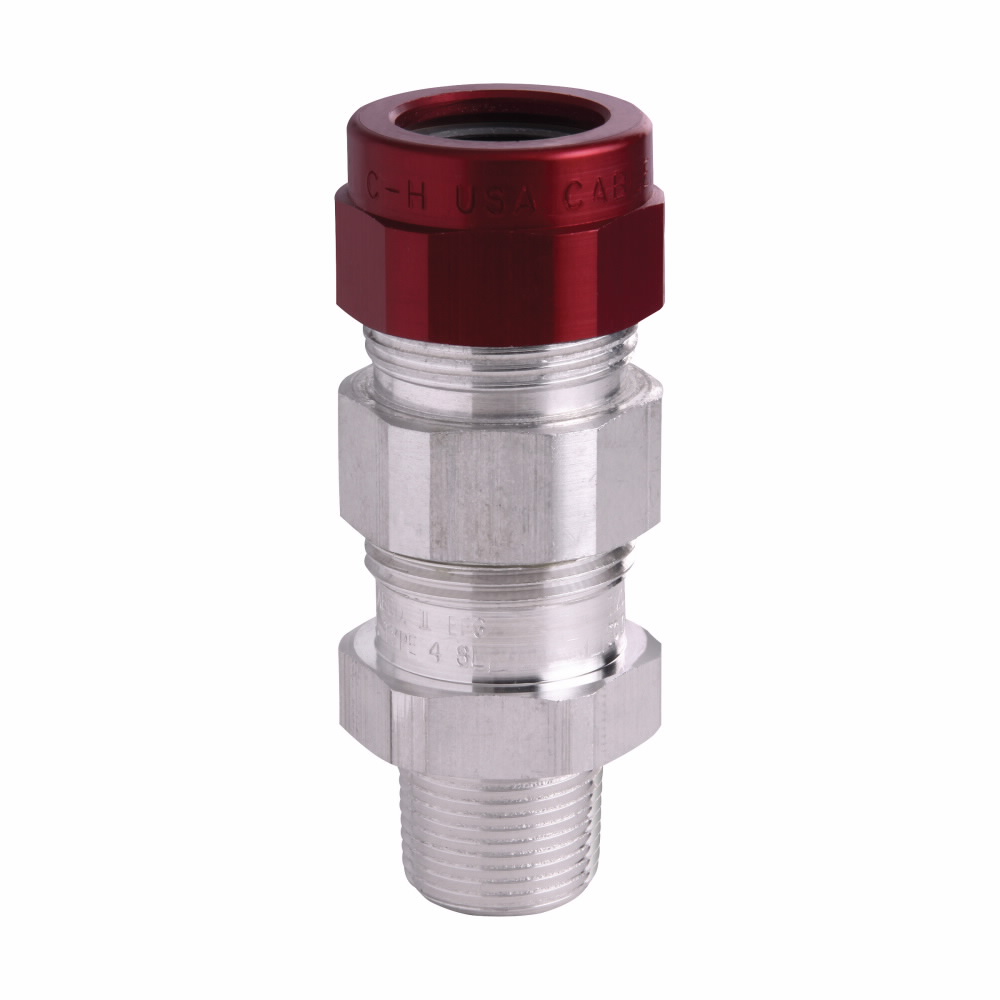

| Description | 1/2″ Cord GripsTMC Armored Cable Gland, Aluminum, 1/2 In Size, 2.625 In Length, -25 °C to +60 °C Operating Temperature, Grip Connection, Non-Insulated, 0.37 LB/Ea |
| Slang Terms | — |
| Categories | Condubx, Non-Metallic CBL, S. – BX, MC, Armored Cable Fittings |
| Classification | Cord Connectors & Cord Grips |
| UNSPSC | 39121311 – Electrical fittings |
| UPC/GTIN | 782274414669 / 00782274414669 |
| Weight per unit | 0.34 (lbs/each) |
| Price & Packaging | Minimum Order Quantity: 1Unit: $167.47 (Each)Standard Packaging: $837.35 (Per 5) |
| Features | Material: AluminumConnection: Male NPT |
| Material, Color, and Finish | Finish: Nickel Plated |
| Dimensions and Weight | Size: 1/2 inLength: 2.625 in (Gland) |
| Product Type | TMC Armored Cable Gland |
| Description (short & long) | 1/2″ CORD GRIPSTMC Armored Cable Gland, Aluminum, 1/2 in Size, 2.625 in Length, -25 °C to +60 °C Operating Temperature, Grip Connection, Non-Insulated, 0.37 lb/EA |
| Special Features | Watertight Seal on Outer Sheath of Cable; Armoured and TECK Armoured Gland and Non-Armoured Barrier |
| Extra Long Description | CRS-H TMCX165 1/2 FT MC CAB ARMOR O |
| Additional Information | Enclosure Type: NEMA 4Min Operating Temp: -25 °CMax Operating Temp: +60 °CConnection Type: GripInsulated/Non-Insulated: Non-Insulated |
| Standards Met | UL Listed E122485; CSA Certified File LR13046 |
| Package Quantity | 2 CT; 5 PK |
| For Use With | Metal-Clad Cable; Non-Armoured and Tray Cable |
| Dimensions | 3.3800 IN X 1.3800 IN X 1.3800 IN |
| Brand | Eaton |
| Manufacturer Information | Sub Brand: Eaton Crouse-Hinds |
| GTIN | 00782274414669 |
| UPC | 782274414669 |
| Category Description | CORD CONNECTORS & CORD GRIPS |
| Type | Cable gland |
| Packaging | Weight: 0.37 lb/EAWeight per each: 0.34Carton: 1Package: 5 |
| Uses, Certifications, Standards | Application: Wet LocationTemperature Rating: -25 to 60 °CEnclosure: IP56, Class I Div 1 Group A B C D, Class II, Class IIIStandard: UL |
