(Each)
$134.85
(Each)
(per 1)
In Stock Locally
$134.85
| Quick Specs | |
|---|---|
| Catalog Number | U7040XLTG |
| Vendor Code | MIB |
| Manufacturer | Milbank |
| Manufacturer’s Part Number | U7040-XL-TG |

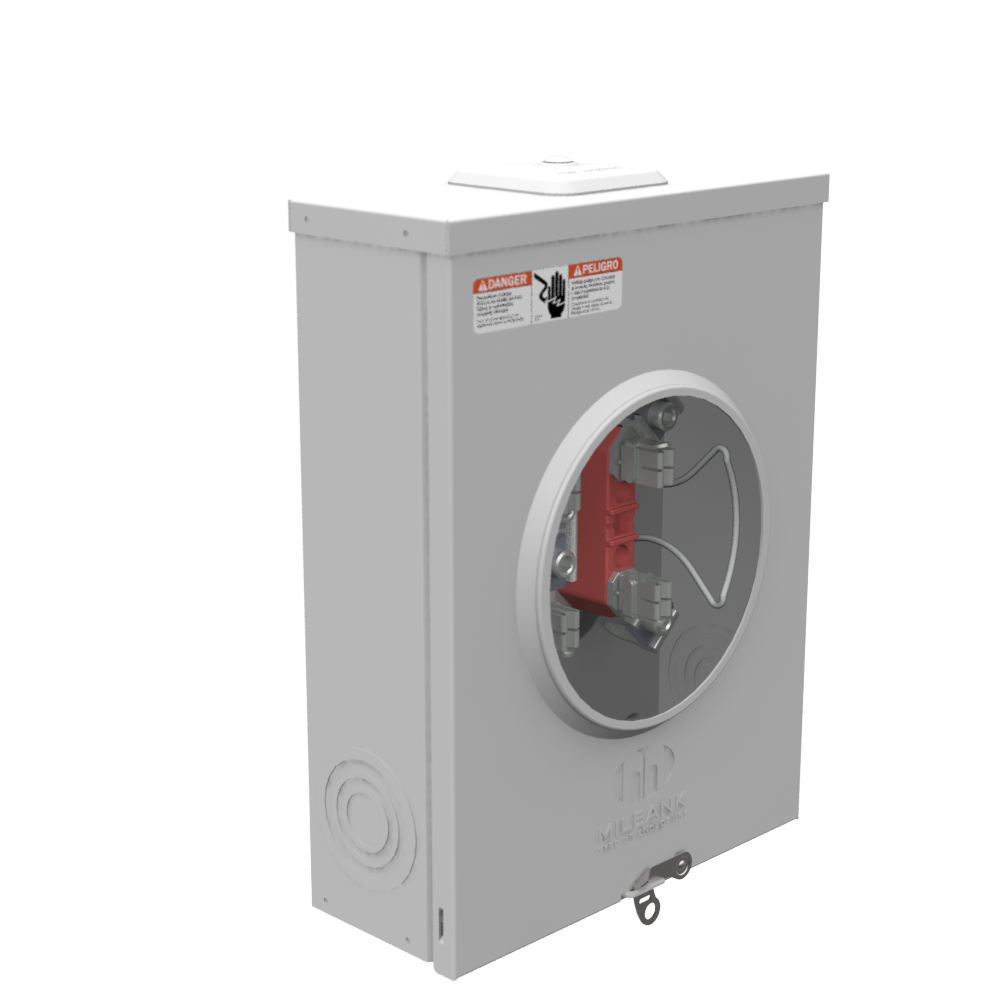

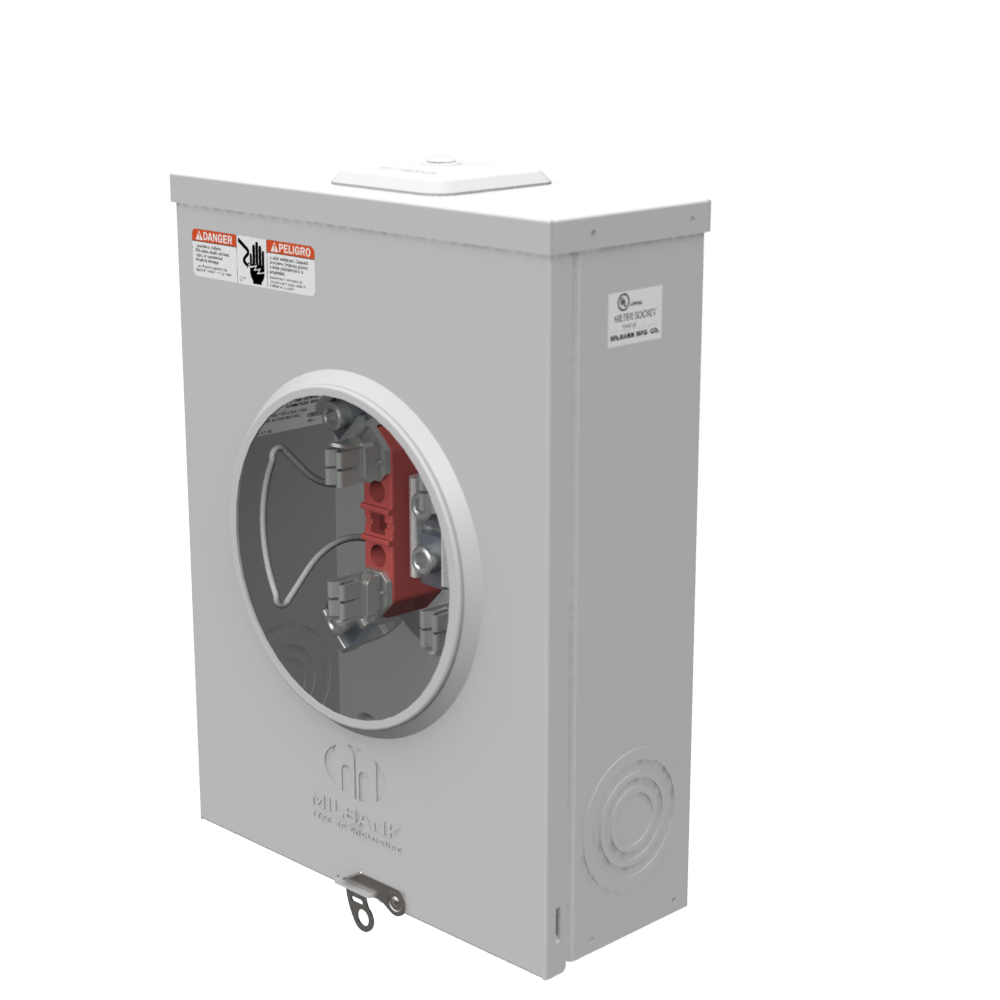

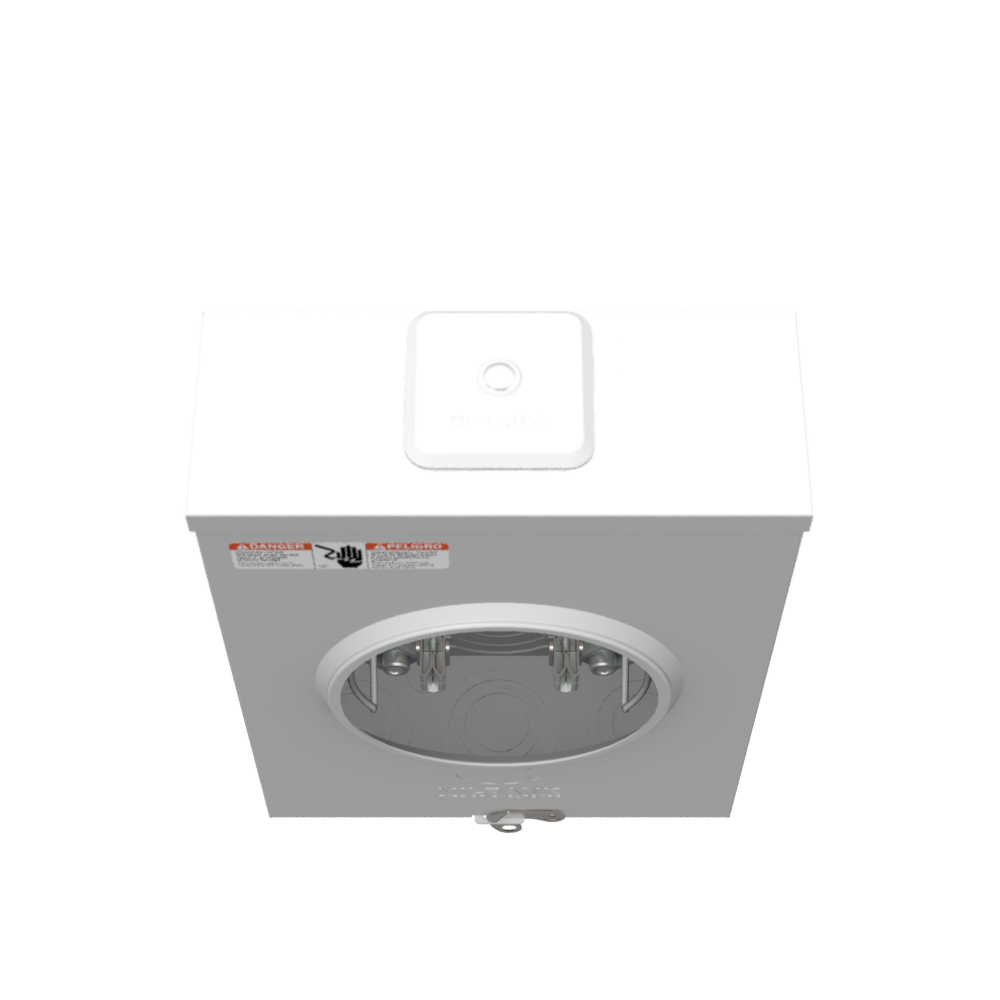

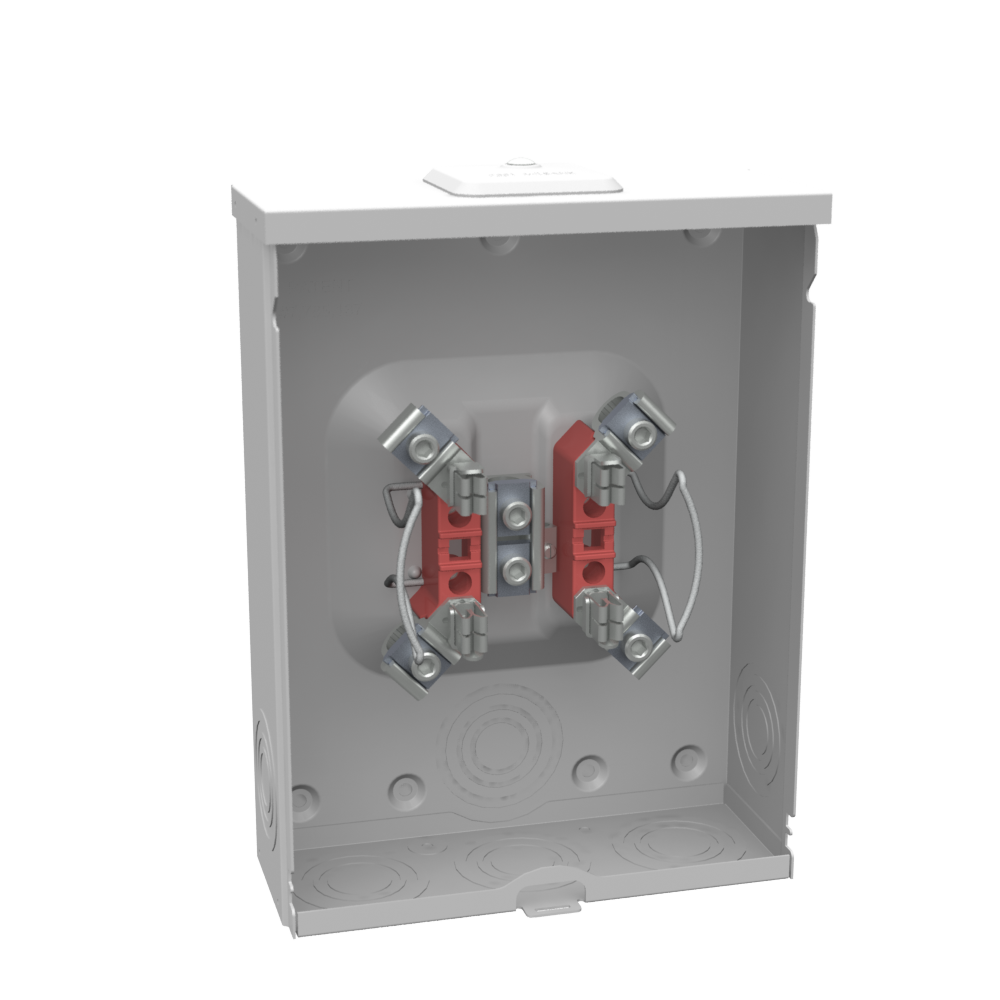

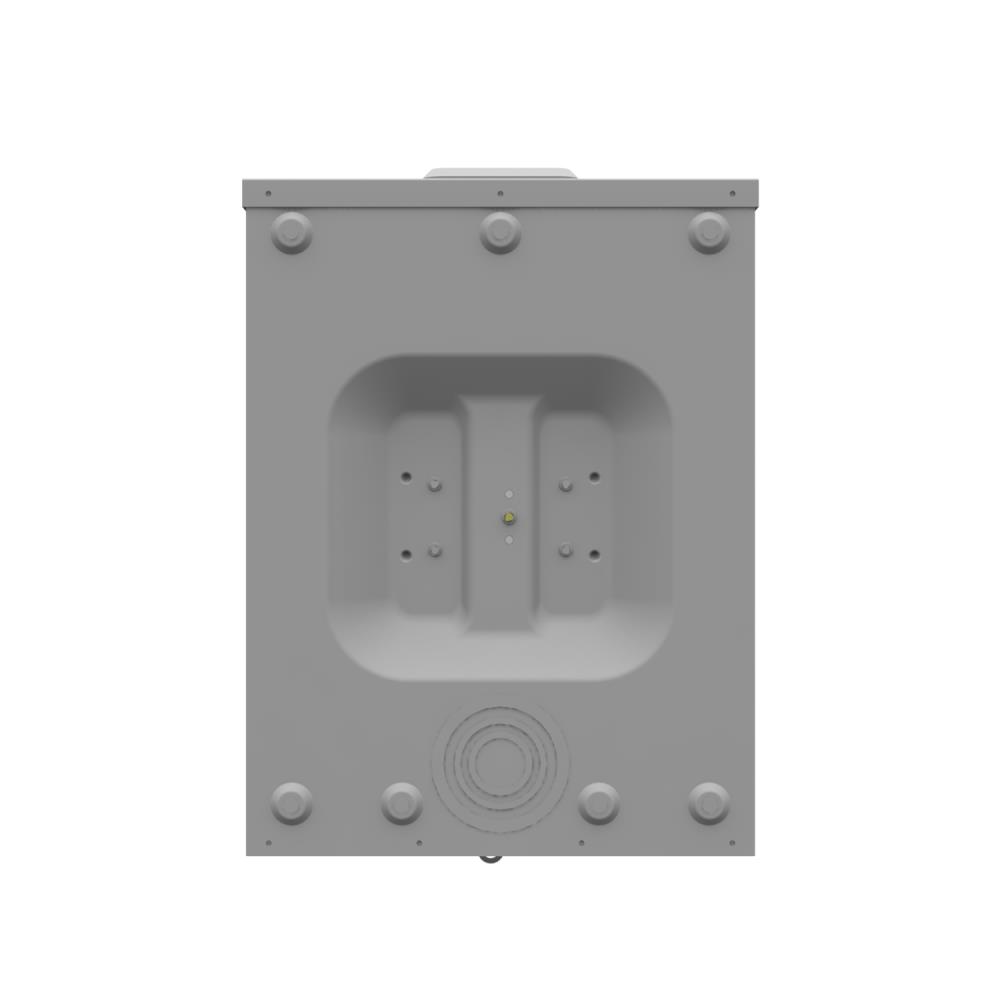

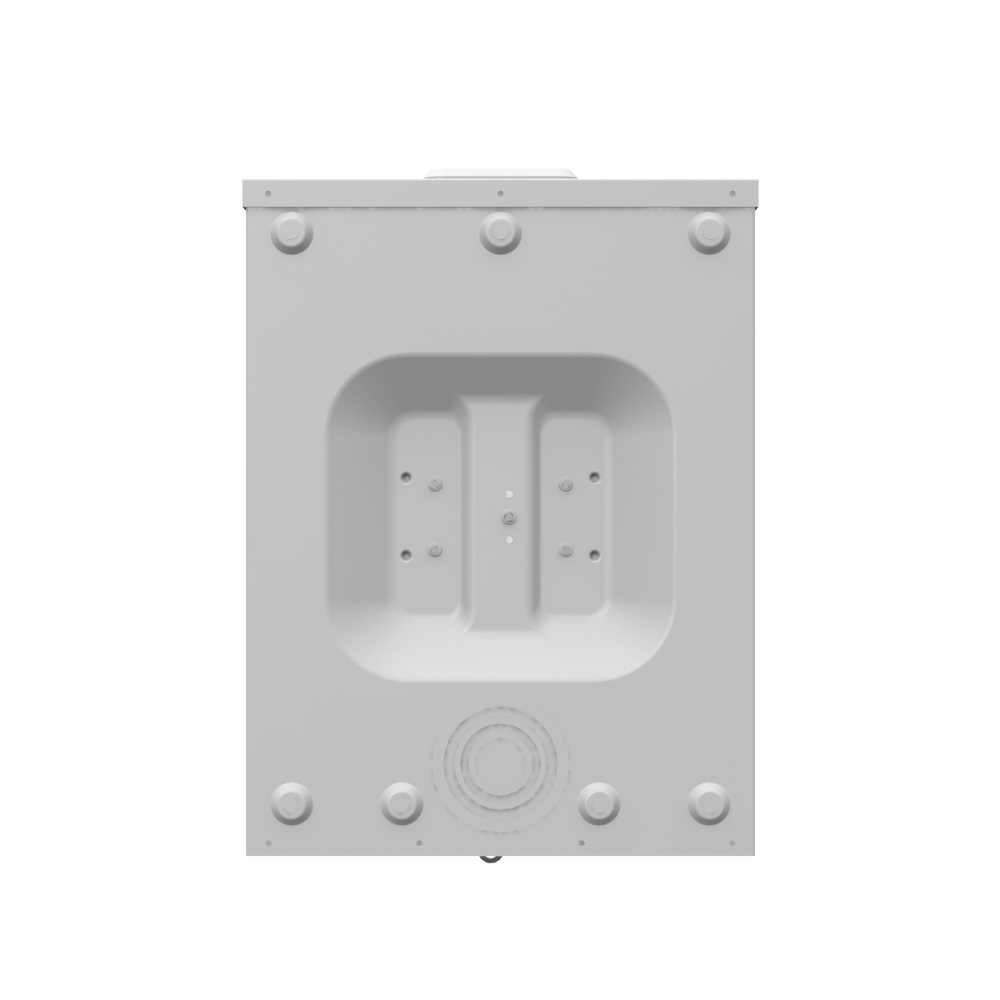

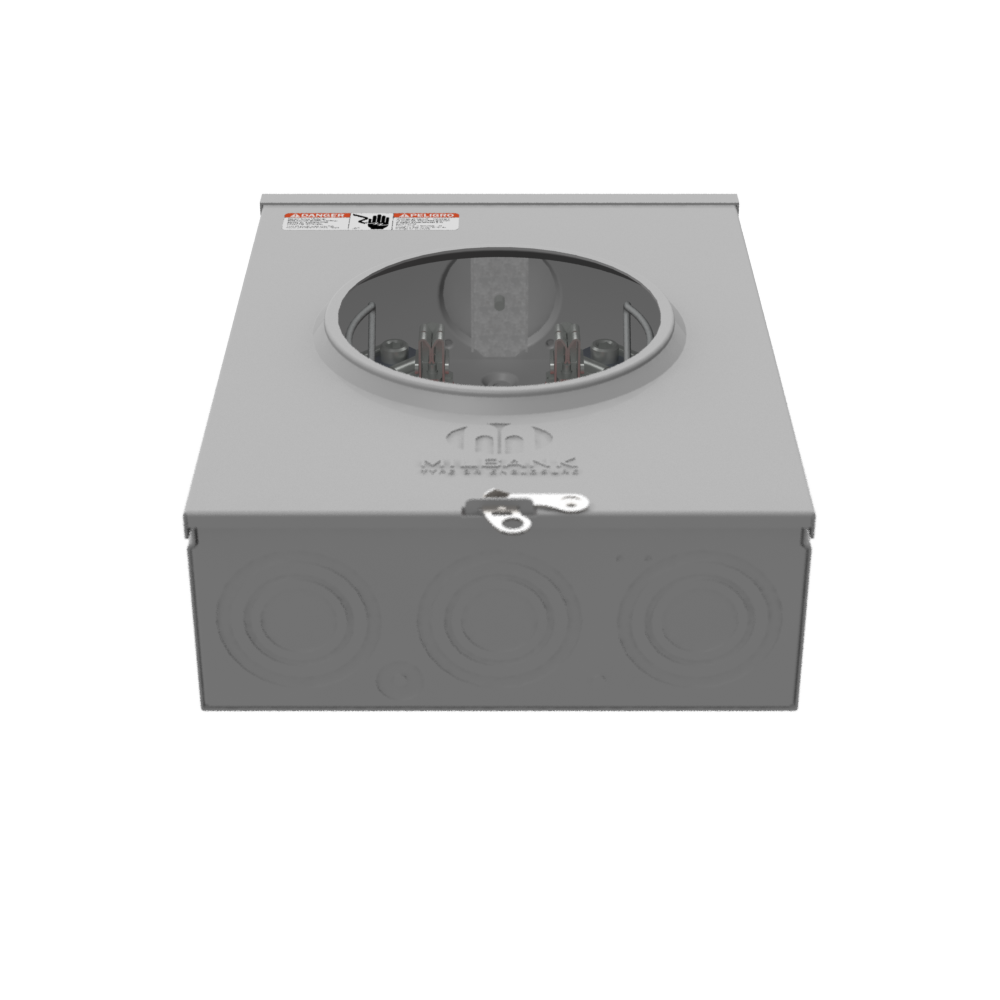

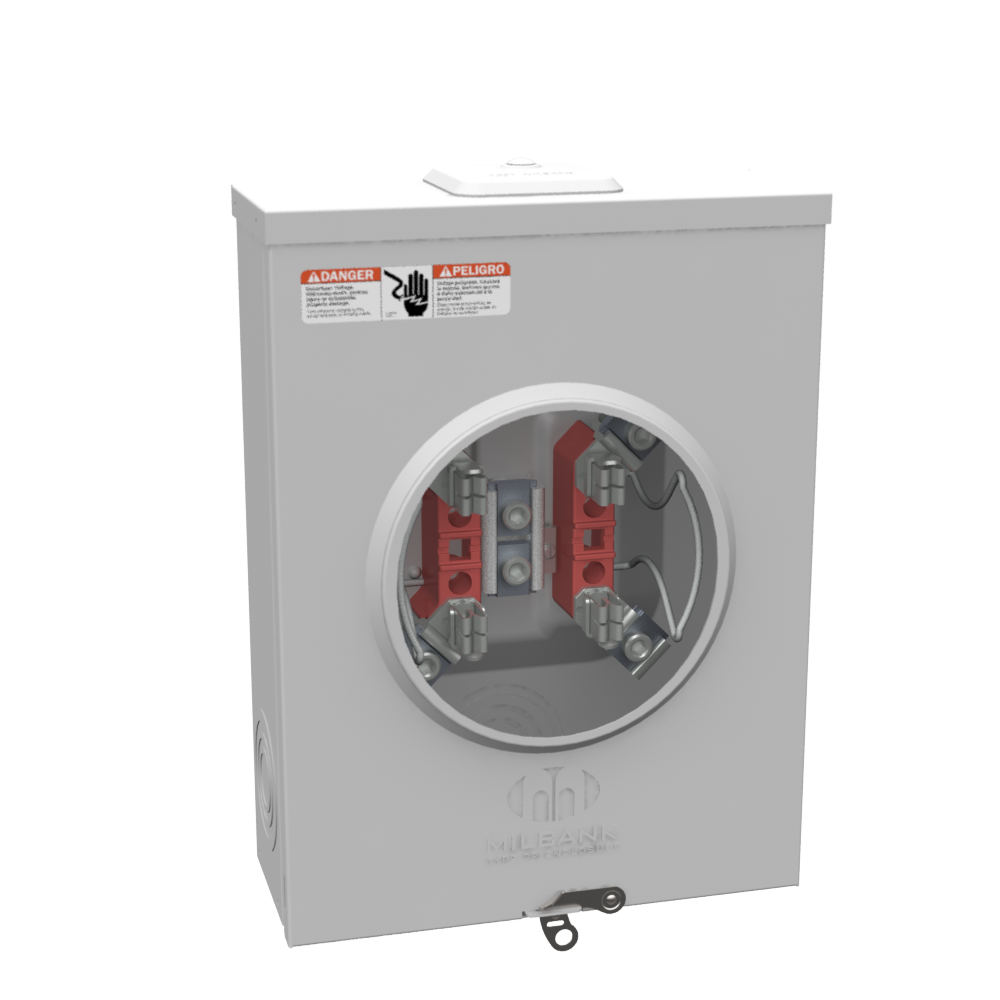

| Description | 200A 1PH OH/UG 4T Meter Socket |
| Short Description | Meter Socket, 200 A, 4 Terminal, Ringless, Small Closing Plate, OH/UG |
| Long Description | Meter Socket, 200 A, 14-5/8 in Overall Height, 11 in Overall Width, 4-1/8 in Overall Length, Surface Mount, 1 Phase, Small Closing Plate Hub, 4 Jaws, 600 V AC, #6 AWG to 350 kcmil Wire Size, Overhead/Underground Feed, 13 lb |
| Extra Long Description | MILB U7040-XL-TG 200A 4T RL OU 1403 |
| Also Known As | Meter Socket, Meter Box |
| Product Type | Meter Socket |
| Classification | |
| Categories | Single Meter Sockets – Residential |
| Classification | Meter Sockets |
| UNSPSC | 39121102 – Meter centers or sockets |
| Category Description | Meter Sockets |
| Type | Ringless Meter Socket |
| Identification | |
| UPC/GTIN | 784572140356 / 00784572140356 |
| GTIN | 00784572140356 |
| UPC | 784572140356 |
| Features | |
| Current Rating | 200 A |
| Amperage Rating | 200 Continuous Ampere |
| Voltage Rating | 600 V AC |
| Number of Phases | 1 |
| Phase | 1 Phase |
| Wire Size | #6 AWG to 350 kcmil |
| Terminal | 4 Terminal |
| Insulation | Glass Polyester |
| Bypass Type | No Bypass |
| Cutout Size | No Main Breaker |
| Cable Entry | Overhead or Underground |
| Features | Ringless, Small Closing Plate, Triplex Ground |
| Dimensions and Weight | |
| Overall Height | 14-5/8 in |
| Overall Width | 11 in |
| Overall Length | 4-1/8 in |
| Size | 4.125L x 11W x 14.563H |
| Weight per Unit | 13 lbs |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $134.85 (Each) |
| Package Quantity | 1 CT; 24 PK |
| Carton | 1 |
| Uses, Certifications, and Standards | |
| Application | Meter Socket |
| Mounting | Surface Mount |
| Mounting Type | Surface Mount |
| Feed Type | Overhead/Underground |
| Standard | UL Listed |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Enclosure Type | NEMA 3R |
| Frequency Rating | 60 Hertz |
| Branding | |
| Brand | Milbank |
