(Each)
$38.81
(Each)
(per 20)
(per 60)
In Stock Locally
$38.81
| Field | Value |
|---|---|
| Catalog Number | UBIF020N |
| Vendor Code | FPE |
| Manufacturer | Connecticut Electric |
| Manufacturer’s Part Number | UBIF020N |

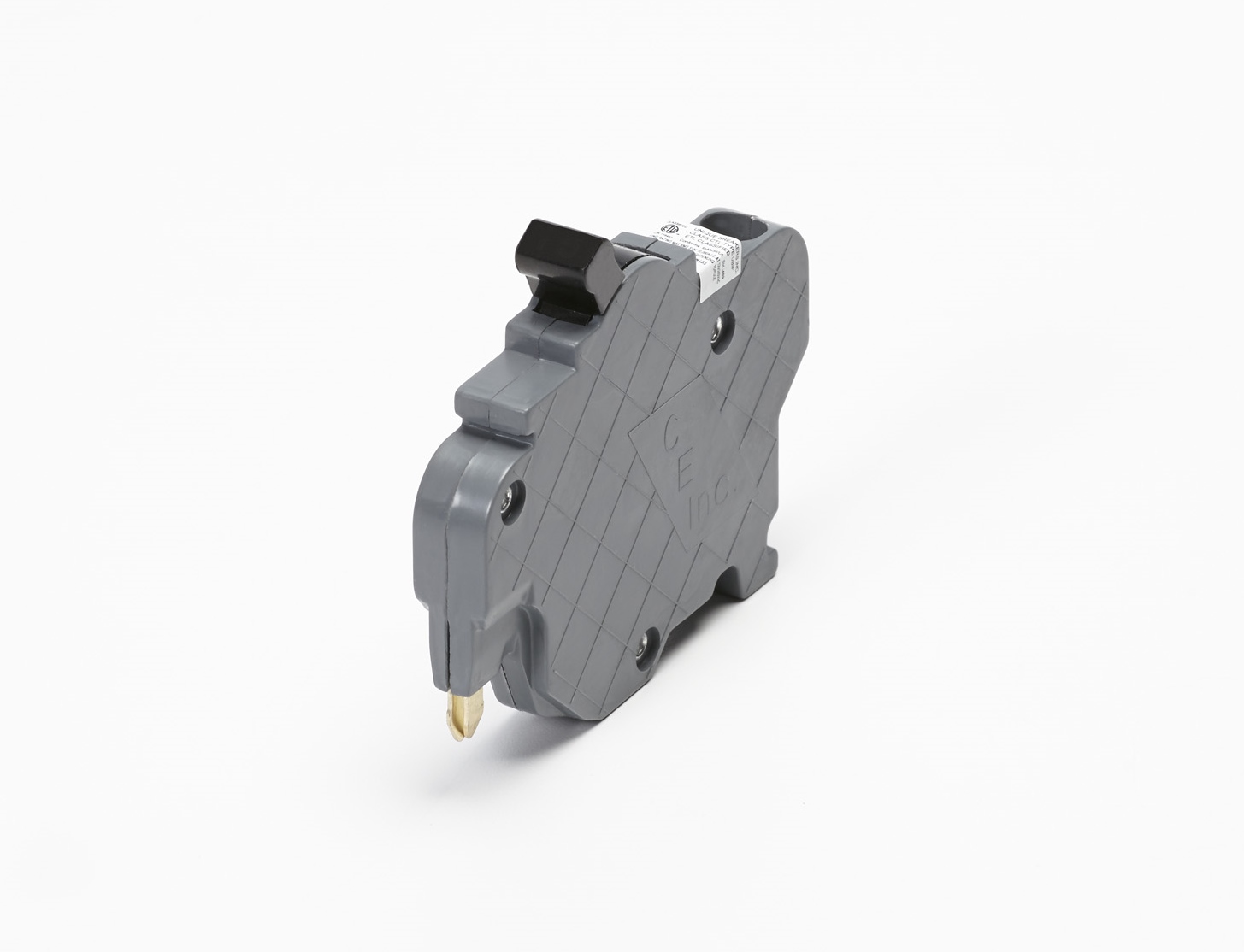

| Description | 1P 20A Ubif NC Thin Breaker |
| Long Description | Standard Trip Circuit Breaker, 20 A, Plug-In, 120/240 V ac, 3.36 in Overall Depth, 2.55 in Overall Height, 0.5 in Overall Width |
| Categories | Enhanced Commodity Codes – Distribution Equipment |
| Classification | Loadcenter Plug In Breakers and Accessories |
| UNSPSC | 39121601 – Circuit breakers |
| UPC/GTIN | 094925019315 / 00094925019315 |
| Weight per unit | 0.35 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $38.81 (Each) |
| Carton | $776.20 (Per 20) |
| Standard Packaging | $2,328.60 (Per 60) |
| Poles | 1 |
| Phase | 1 |
| Interrupt Rating | 10000 A |
| Voltage Rating | 120/240 V ac |
| Amperage Rating | 20 |
| Actuator | Handle |
| Material | DMC |
| Connection | Push On |
| Current Rating | 20 A |
| Width | 0.5 |
| Height | 2.55 |
| Length | 3.36 |
| Short Description | Standard Trip Circuit Breaker, 20 A, 120/240 VAC |
| Extra Long Description | CON UBIF020N FEDERAL PACIFIC REPL T |
| Special Features | The only newly manufactured and Listed replacements available |
| Product Type | Standard Trip Circuit Breaker |
| Features | Connecticut Electric replacement circuit breaker for Federal Pacific Electric type NC (thin) breakers. Classified and approved for use in Federal Pacific load centers. ETL Listed. 10,000 AIC. 1-pole, 20A. |
| Load Rating | 1 |
| Trip Type | Thermal |
| Circuit Breaker Type | Standard Trip Circuit Breaker |
| Mounting Type | Plug-In |
| Overall Depth | 3.36 in |
| Overall Height | 2.55 in |
| Overall Width | 0.5 in |
| For Use With | Federal Pacific Electric Loadcenter |
| Standards Met | ETL Listed |
| Brand | Federal Pacific(R) Connecticut Electric |
| GTIN | 00094925019315 |
| UPC | 094925019315 |
| Type | UBIF TYPE NC THIN REPLACEMENT |
| Category Description | Loadcenter Plug In Breakers and Accessories |
| Weight per Each | 0.35 |
| Carton | 20 |
| Package | 60 |
| Operating Temperature | 40 |
| Frequency Rating | 50/60 |
| Enclosure | Appropriate OEM Panelboard i.e. Federal Pacific |
| Environmental Conditions | Determined by panel for product |
| Application | Plug-In for use in Federal Pacific Load Centers |
| Standard | ETL Listed |
