(Each)
$38.81
(Each)
(per 1)
(per 10)
In Stock Locally
$38.81
| Field | Value |
|---|---|
| Catalog Number | UBIF030N |
| Vendor Code | FPE |
| Manufacturer | Connecticut Electric |
| Manufacturer’s Part Number | UBIF030N |

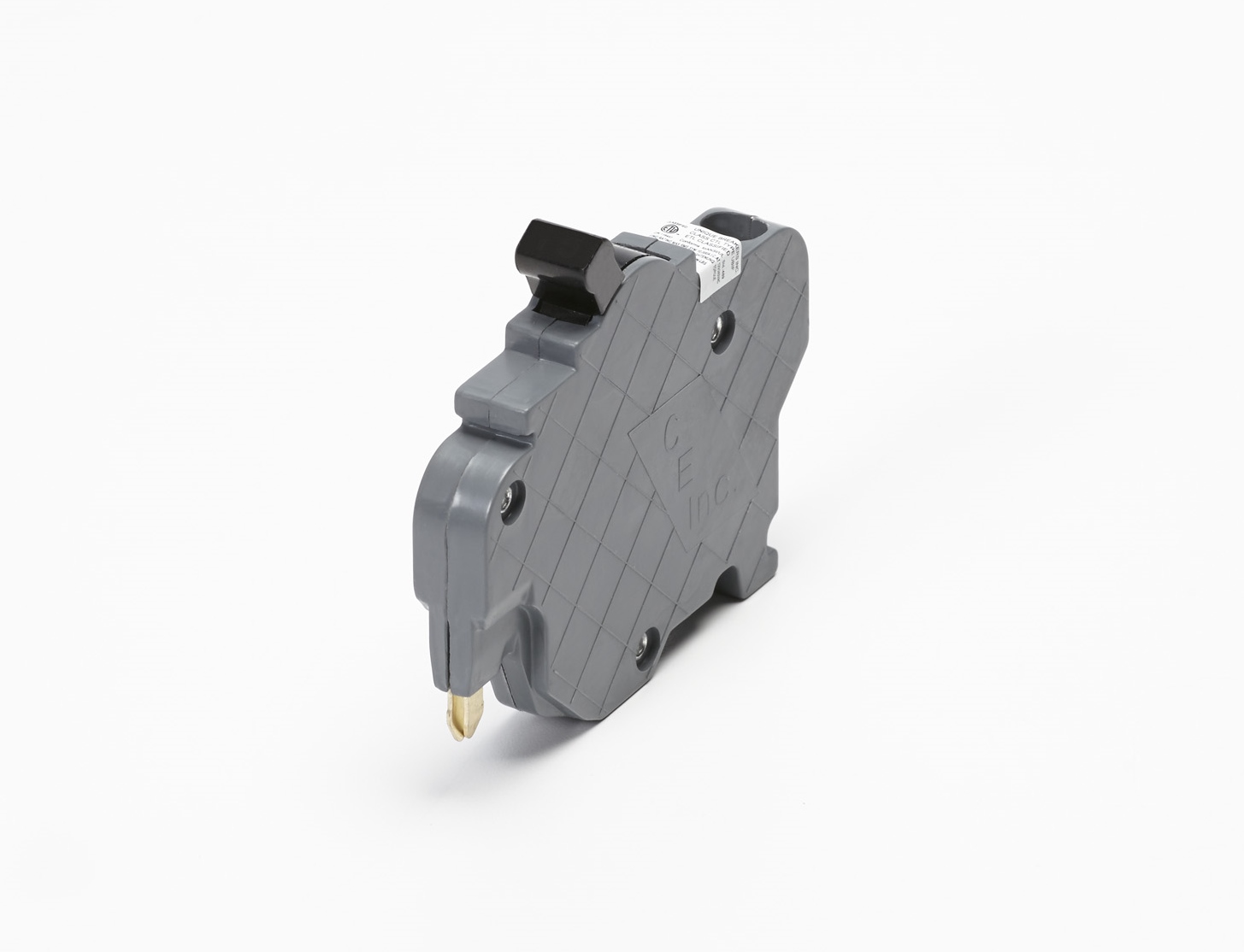

| Description | 1P 30A UBIF NC Thin Breaker |
| Product Type | Standard Trip Circuit Breaker |
| Current Rating | 30 A |
| Interrupt Rating | 10000 A |
| Voltage Rating | 120/240 V AC |
| Phase | 1 |
| Poles | 1 |
| Amperage Rating | 30 |
| Mounting Type | Plug-In |
| Connection | Push On |
| Trip Type | Thermal |
| Trip Range | None |
| Load Rating | 1 |
| Actuator | Handle |
| Material | DMC |
| Overall Depth | 3.36 in |
| Overall Height | 2.55 in |
| Overall Width | 0.5 in |
| Operating Temperature | 40 |
| Frequency Rating | 50/60 Hz |
| Enclosure | Appropriate OEM Panelboard (e.g., Federal Pacific) |
| Standards Met | ETL Listed |
| Special Features | The only newly manufactured and Listed replacements available |
| For Use With | Federal Pacific Electric Loadcenter |
| Application | Plug-In for use in Federal Pacific Load Centers |
| Category Description | Loadcenter Plug In Breakers and Accessories |
| Type | UBIF TYPE NC THIN REPLACEMENT |
| UPC | 094925019322 |
| GTIN | 00094925019322 |
| Brand | Federal Pacific®, Zinsco®, Connecticut Electric |
| Weight per Unit | 0.1 lbs |
| Carton | 10 |
| Price (Each) | $38.81 |
| Price (Per 10) | $388.10 |
