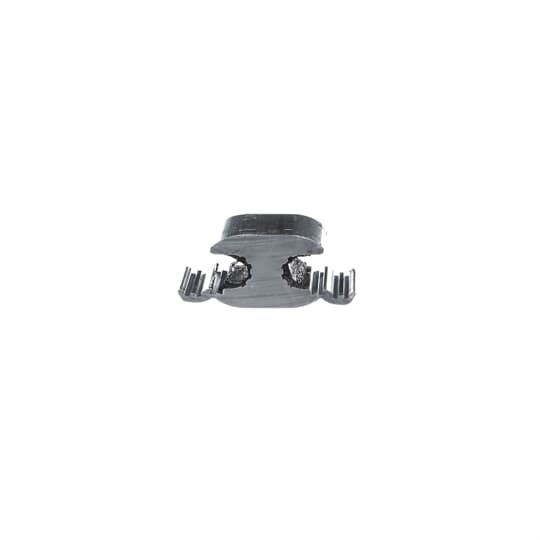

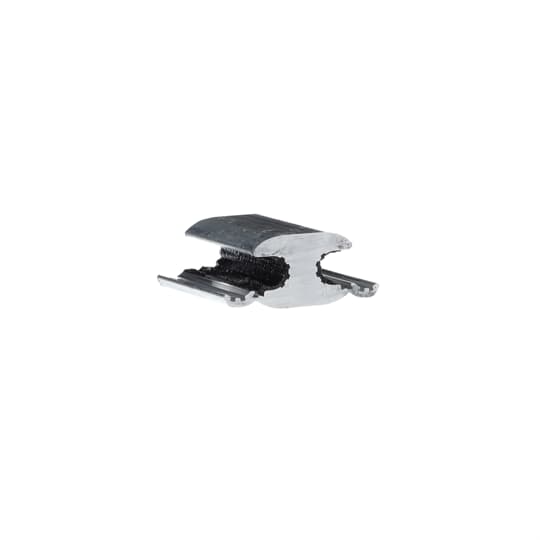

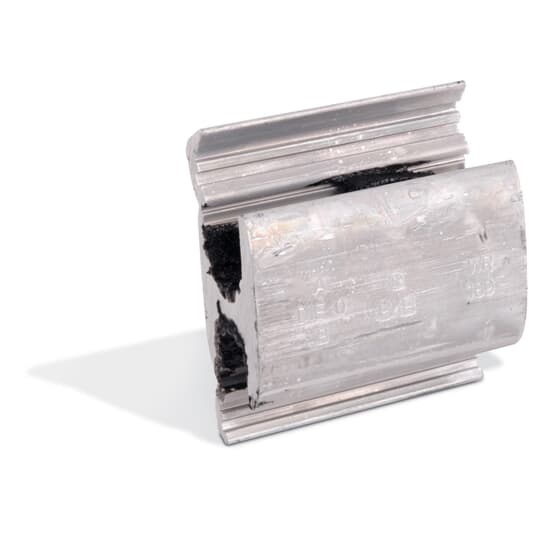

WR159 – 1 to 1 H Tap
$
(per )
(Each)
$2.25
(Each)
$
(per 1)
$
(per 250)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Quick Specs | |
| Catalog Number | WR159 |
| Vendor Code | TAB |
| Manufacturer | Blackburn Mechanical |
| Manufacturer’s Part Number | WR159 |
| Description | 1 to 1 H TapH-Type Compression Connector, Non-Insulated, Aluminum Conductor Material, 2 Conductors, Up to 90 °C Operating Temperature, 1-7/18 In Overall Length, Compression/Crimp Terminal, 0.09 LB/Ea |
| Slang Terms | — |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | T&B C Tap Lugs |
| UNSPSC | 39121409 – Wire connectors |
| UPC/EAN/GTIN | 783786100019 / 5415022349276 / 00783786100019 |
| Weight per unit | 0.085 lbs/each |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $2.25 (Each) |
| Carton Price | $56.18 (Per 25) |
| Standard Packaging Price | $561.78 (Per 250) |
| Features | |
| Terminal Type | Compression; Crimp |
| Number of Conductors | 2 |
| Material | Aluminum |
| Connection | Compression |
| Wire Size | Main: #2 to #6 ACSR or #1 to #6 STR or #2 to #6 SOL AWGTap: #2 to #6 ACSR or #1 to #6 STR or #2 to #6 SOL AWG |
| Insulation | None |
| Material, Color, and Finish | |
| Conductor Material | Aluminum |
| Housing Material | Aluminum |
| Dimensions and Weight | |
| Overall Length | 1-7/18 in |
| Size | Length 1-7/16 inch |
| Descriptions | |
| Short Description | H-Type Compression Connector, Non-Insulated, 1-7/18 in L |
| Product Type | H-Type Compression Connector |
| Long Description | H-Type Compression Connector, Non-Insulated, Aluminum Conductor Material, 2 Conductors, Up to 90 °C Operating Temperature, 1-7/18 in Overall Length, Compression/Crimp Terminal, 0.09 lb/EA |
| Special Features | Made of 1350 Aluminum Alloy for High Strength and Conductivity; Uses standard compression tools and dies; No special tools needed; Ribbed design for excellent connector/conductor contact without distortion |
| Description | 1 TO 1 H TAP |
| Extra Long Description | ABB WR159 AL HTYPE COMP CONN 2-6ACS |
| Additional Information | |
| Maximum Conductor Size | Main: #2, #4, #6 AWG (ACSR), #1, #2, #3, #4, #6 AWG (Stranded), #2, #4, #6 AWG (Solid) Tap: #1, #2, #4, #6 AWG (ACSR), #1, #2, #3, #4, #6 AWG (Stranded), #2, #4, #6 AWG (Solid) |
| Insulated/Non-Insulated | Non-Insulated |
| Maximum Operating Temperature | Up to 90 °C |
| For Use With | Hydraulic Tool |
| Made in USA | Yes |
| Standards Met | RUS Accepted; ANSI C119.4 |
| Package Quantity | 25 CT; 250 PK |
| Manufacturer Information | |
| Brand | Blackburn Mechanical |
| Sub Brand | Blackburn |
| Manufacturer’s Part Number | WR159 |
| GTIN | 00783786100019 |
| UPC | 783786100019 |
| Taxonomies, Classifications, and Categories | |
| Category Description | T&B C TAP LUGS |
| Type | H-Type Compression Tap Connector |
| Packaging | |
| Weight | 0.09 lb/EA |
| Weight per each | 0.085 |
| Carton | 25 |
| Package | 250 |
| Uses, Certifications, and Standards | |
| Environmental Conditions | All Seasons / Conditions |
| Application | For combinations of aluminum to aluminum and aluminum to copper conductors |
| Mounting | None |
| Standard | RUS Accepted. Complies with ANSI C119.4 Specifications |
| Temperature Rating | Up to 90 °C |
