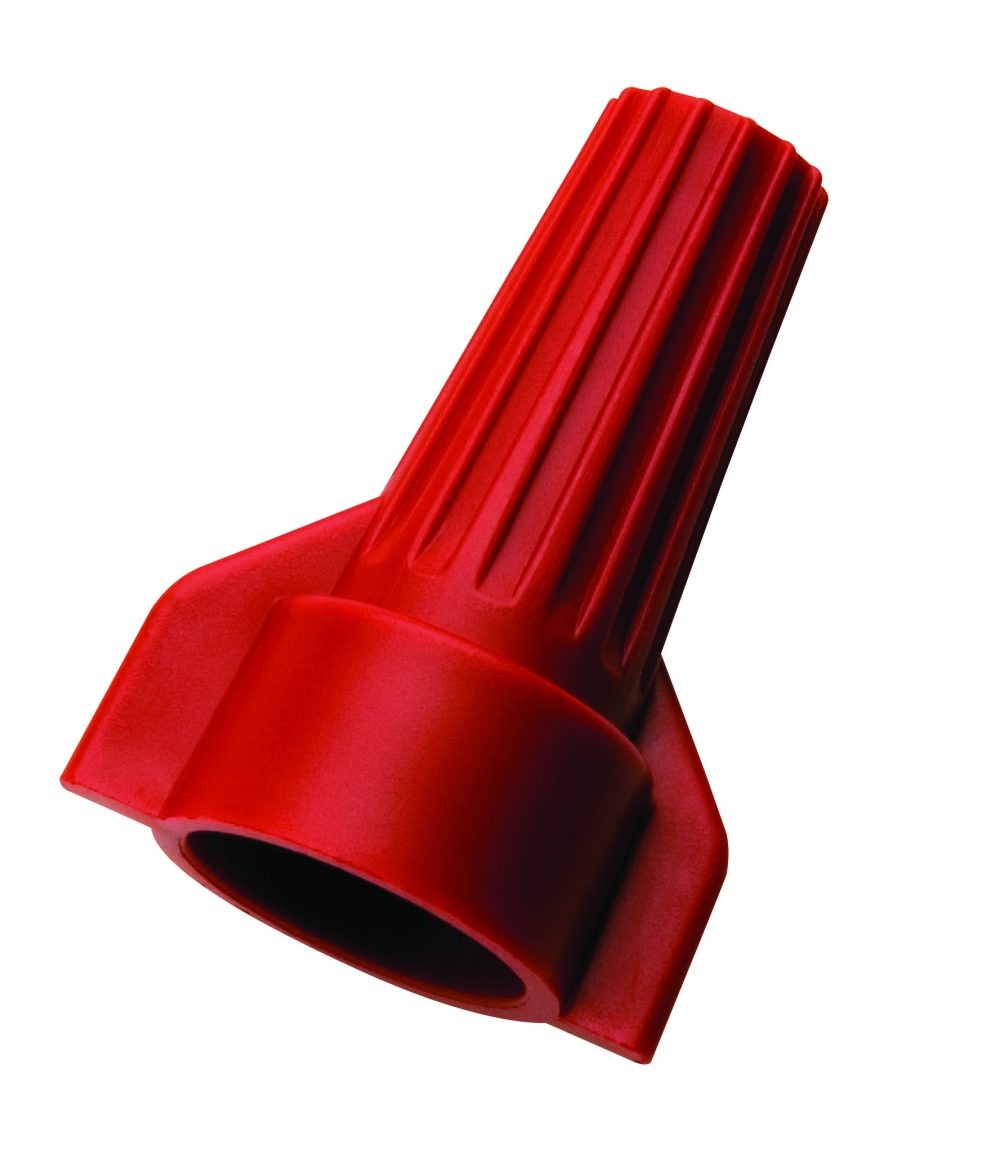

WT52500JR – Wingtwist Wire Connector, WT52 Red, 500/Jar
$
(per )
(Each)
$0.27
(Each)
$
(per 1)
$
(per 2000)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Quick Specs | |
| Catalog Number | WT52500JR |
| Vendor Code | IDE |
| Manufacturer | Buchanan |
| Manufacturer’s Part Number | WT52-500JR |
| Description | Wingtwist Wire Connector, WT52 Red, 500/JarBuchanan Wire Connector, Wingtwist, Conductor Range: 18 – 10 AWG, Min 2/12 AWG, Max 5/12 AWG, Number of Conductors: 2 to 6, Material: Flame-Retardant Polypropylene, Color: Red, Voltage Rating: 600 V, Environmental: UL 94V-2 Flame-Retardant Shell Rated at 105°C (221°F), Model WT52 |
| Slang Terms | |
| Categories | Connecting Materials – Electrical Fixture Conn (Nuts) |
| Classification | Wire Nuts |
| UNSPSC | 39121445 – Twist on wire connector |
| UPC/EAN/GTIN | 781789967691 / 0781789967691 / 00781789967691 |
| Weight per unit | 0.006 lbs (each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $0.27 (Each) |
| Carton Price | $548.60 (Per 2,000) |
| Stock Availability | |
| Nacogdoches | 0 (Find nearest stock) |
| All Stores | 15,000 |
| Features | |
| Voltage Rating | 600 V |
| Material | Flame-retardant Polypropylene |
| Material, Color, and Finish | |
| Color | Red |
| Descriptions | |
| Product Type | Wingtwist WT52 Red, 500 Jar |
| Description | WINGTWIST WIRE CONNECTOR, WT52 RED, 500/JAR |
| Features | Full line for virtually every wire size and combo; contoured wing design provides max torque; copolymer shell with live-action spring expands for smooth tightening; tough flame-retardant shell withstands extremes; long, deep skirt for max dielectric protection. |
| Extra Long Description | IDEAL WT52-500JR WINGTWIST WT52 RED |
| Long Description | Buchanan WingTwist Wire Connector, Conductor Range: 18 – 10 AWG (Min 2/12 AWG, Max 5/12 AWG), Number of Conductors: 2 to 6, Material: Flame-retardant Polypropylene, Color: Red, Voltage Rating: 600 V, UL 94V-2 Flame-Retardant Shell Rated at 105°C (221°F), Model WT52 |
| Special Features | 1,000V max in fixtures/signs; deep wide-throated skirt protects against flash-over and turned-back strands; five color-coded models for common wire ranges; fixed square-wire spring for secure grip; green model for ground connections; UL 486C and CSA certified; unique wing design acts as built-in wrench for max torque with minimum effort. |
| Additional Information | |
| Media | Yes |
| Manufacturer Information | |
| Brand | Ideal |
| Manufacturer’s Part Number | WT52-500JR |
| GTIN | 00781789967691 |
| UPC | 781789967691 |
| Taxonomies, Classifications, and Categories | |
| Category Description | WIRE NUTS |
| Packaging | Weight per each: 0.006 lbs; Carton: 2,000 |
| Uses, Certifications, and Standards | |
| Standards | CSA C22.2 #188, UL 486C Listed, RoHS |
| Application | Insulating or joining 1 or more conductors |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell Rated at 105°C (221°F) |
