(Each)
$26.08
(Each)
(per 1)
(per 100)
In Stock Locally
$26.08
| Field | Details |
|---|---|
| Catalog Number | WWCBB |
| Vendor Code | NSI |
| Manufacturer | Nsi Industries |
| Manufacturer’s Part Number | WWC-B-B |

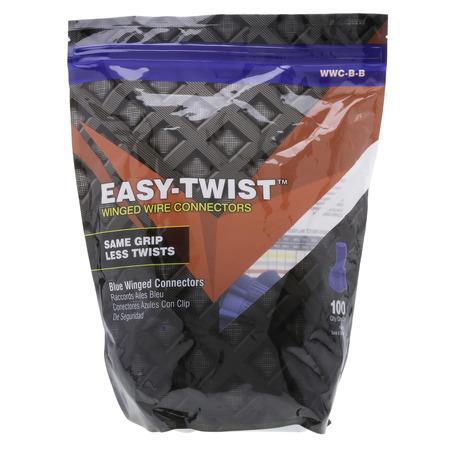

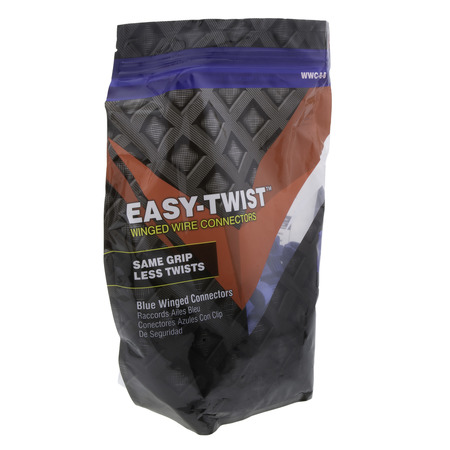

| Description | Blue Winged Wire Connector, Thermoplastic Insulated, Copper Conductor, 14 to 6 AWG |
| Product Type | Winged Wire Connector |
| Number of Conductors | 1 (but supports multiple conductors of specified sizes) |
| Conductor Size Range | Min: (2) #10 AWG; (1) #12 AWG Max: (1) #8 AWG; (3) #10 AWG |
| Voltage Rating | 600 V |
| Operating Temperature | +221 °F (+105 °C) |
| Material | Thermoplastic shell |
| Conductor Material | Copper |
| Color | Blue |
| Dimensions | Overall Width: 1.260 in Overall Height: 1.575 in |
| Weight per unit | 1.68 lbs |
| Minimum Order Quantity | 100 |
| Pricing | $0.26 each; $26.08 per 100 |
| Stock Availability | Nacogdoches: 0 All Stores: 36,600 |
| Standards & Certifications | UL E155027; CSA 231168; RoHS; UL 486C Listed |
| Made in USA | Yes |
| Warranty | 1 Year |
| Special Features | – Fixed, precise square wire spring for secure grip on conductors – Winged design for easy twisting – Corrosion protection (WW Corrosion Protection) |
| Application | Suitable for copper wire only; insulated connections |
