(Each)
$52.01
(Each)
(per 1)
(per 500)
In Stock Locally
$52.01
| Category | Details |
|---|---|
| Quick Specs | |
| Catalog Number | WWCGRB |
| Vendor Code | NSI |
| Manufacturer | Nsi |
| Manufacturer’s Part Number | WWC-GR-B |

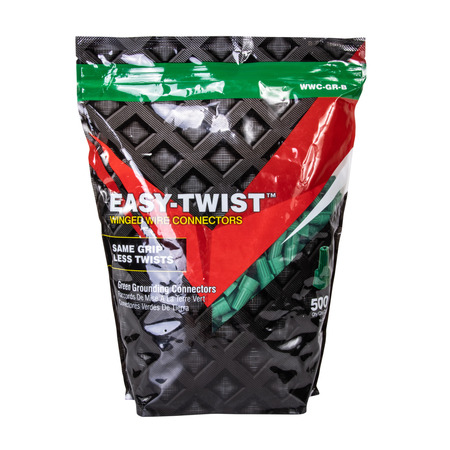

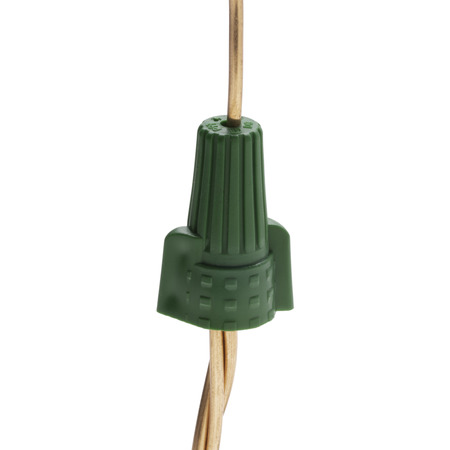

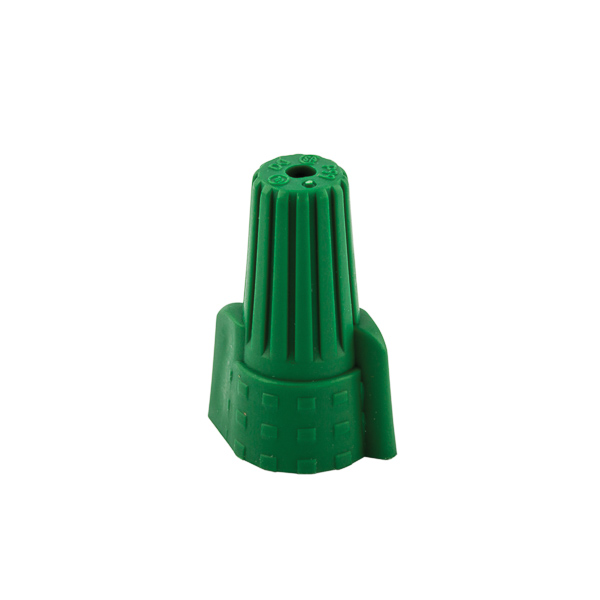

| Description | Green Winged Connector |
| Full Description | Winged Wire Connector, (2) #14 AWG Conductor Size, (5) #12 AWG Conductor Size, Insulated, Thermoplastic Insulation Material, Copper Conductor Material, Green Insulation Color, +221 °F Operating Temperature, 0.795 In Overall Width, 1.134 In Overall Height, 600 V, 3.15 LB |
| Slang Terms | (none provided) |
| Categories & Classification | |
| Categories | Connecting Materials – Electrical Fixture Conn (Nuts) |
| Classification | Wire Nuts |
| UNSPSC | 39121445 – Twist on wire connector |
| UPC/EAN/GTIN | 662381141286 / 6623811412868 / 00662381141286 |
| Weight per unit | 0.006 lbs (each) |
| Price & Packaging | |
| Minimum Order Quantity | 500 |
| Unit Price | $0.10 (Each) |
| Carton Price | $52.01 (Per 500) |
| Stock Availability | Nacogdoches: 0 (Find nearest stock), All Stores: 310,000 |
| Features | |
| Terminal Type | Winged |
| Number of Conductors | 1 |
| Voltage Rating | 600 V |
| Material | Thermoplastic |
| Insulation Material | Thermoplastic |
| Conductor Material | Copper |
| Insulation Color | Green |
| Color | Green |
| Finish | Thermoplastic |
| Dimensions and Weight | |
| Size | H=1.13 in – W=0.795 in – ID=0.327 in |
| Weight | 3.15 lb |
| Weight per Each | 0.006 lb |
| Descriptions | |
| Special Features | Fixed; Precise Square Wire Spring Provides Secure Gripping of Conductors |
| Product Type | Winged Wire Connector |
| Long Description | Winged Wire Connector, (2) #14 AWG Conductor Size, (5) #12 AWG Conductor Size, Insulated, Thermoplastic Insulation Material, Copper Conductor Material, Green Insulation Color, +221 °F Operating Temperature, 0.795 in Overall Width, 1.134 in Overall Height, 600 V, 3.15 lb |
| Short Description | Winged Wire Connector, Thermoplastic, Green, 14 to 10 AWG, 500 per bag |
| Extra Long Description | NSI WWC-GR-B Easy-Twist Winged Tan |
| Additional Description | GREEN WINGED CONNECTOR |
| Additional Information | |
| Maximum Operating Temperature | +105 °C / +221 °F |
| Overall Width | 0.795 in |
| Overall Height | 1.134 in |
| Maximum Voltage Rating | 600 V |
| Standards Met | UL E155027; CSA 231168; RoHS; UL 486C Listed |
| Made in USA | Yes |
| Package Quantity | 500 BG |
| Minimum Conductor Size | (2) #14 AWG |
| Maximum Conductor Size | (5) #12 AWG |
| Insulated/Non-Insulated | Insulated |
| Warranty | 1 YEAR |
| Wire Type | CU Wire Only |
| Manufacturer Information | |
| Brand | Nsi Industries |
| Manufacturer’s Part Number | WWC-GR-B |
| Sub Brand | Easy-Twist™ |
| GTIN | 00662381141286 |
| UPC | 662381141286 |
| Taxonomies, Classifications, and Categories | |
| Category Description | WIRE NUTS |
| Type | Winged Wire Connectors |
| Availability | Minimum Qty: 500 |
| Packaging | Carton of 500 |
| Uses, Certifications, and Standards | |
| Environmental Conditions | 105 °C |
| Temperature Rating | 105 °C |
| Application | Grounding Wire |
| Standard | UL 467 |
