(Each)
$97.46
(Each)
(per 1)
In Stock Locally
$97.46
| Catalog Number | XTCE009B10A |
|---|---|
| Vendor Code | CHC |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | XTCE009B10A |

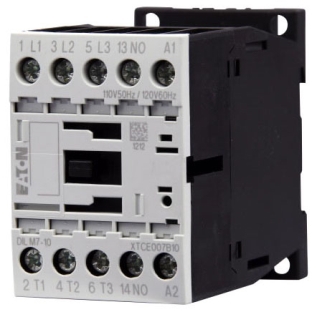

| Description | Contactor 3P FVNR 9A Frame B 1NO 110/50 120/60 Coil |
| Product Type | Magnetic Contactor |
| Long Description |
Magnetic contactor, Full Voltage Non-Reversing (FVNR); Frame size: 45 mm; UL, CSA, CE approved; IP20 enclosure; Current Rating: 20A (UL continuous), 9A (AC-3), 22A (AC-1); 3 poles; IEC construction standard; Coil Voltage: 110V AC @ 50Hz / 120V AC @ 60Hz; Auxiliary Contact: 1NO; Power Ratings: – 1/2 HP @ 115V 1-phase – 1 HP @ 200V 1-phase – 1.5 HP @ 230V 1-phase – 3 HP @ 200/230V 3-phase – 5 HP @ 460V 3-phase – 7.5 HP @ 575V 3-phase – 2.5 kW @ 220/230V (50/60Hz) 3-phase – 4 kW @ 380/400V |
| Frame Size | 45 mm |
| Coil Voltage | 110V AC @ 50Hz, 120V AC @ 60Hz |
| Auxiliary Contact | 1NO |
| Poles | 3 |
| Current Ratings | 20A (UL Continuous), 9A (AC-3), 22A (AC-1) |
| Enclosure | IP20 |
| Weight per Unit | 0.5 lbs |
| Minimum Order Quantity | 1 |
| Unit Price | $97.46 |
| Stock – Nacogdoches | 0 |
| Stock – All Stores | 38 |
| Certifications | UL, CSA, CE |
| Standards | IEC |
| Temperature Rating | -25°C to +50°C |
| Category | IEC Contactors |
| Classification | IEC/Freedom Contactor |
| Type | Full Voltage, Non-Reversing |
| GTIN | 04015082766870 |
| UPC | 015082766874 |
